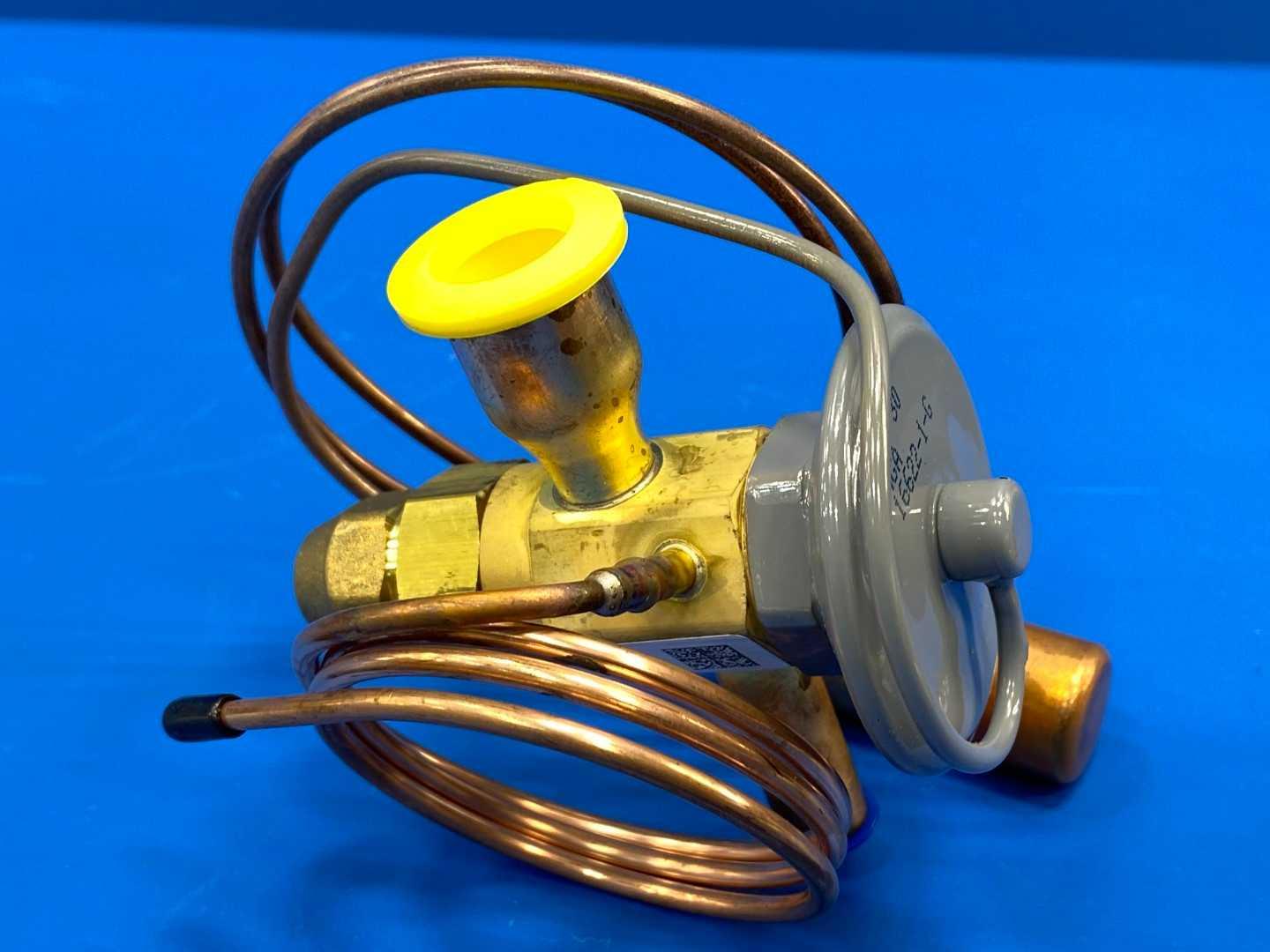

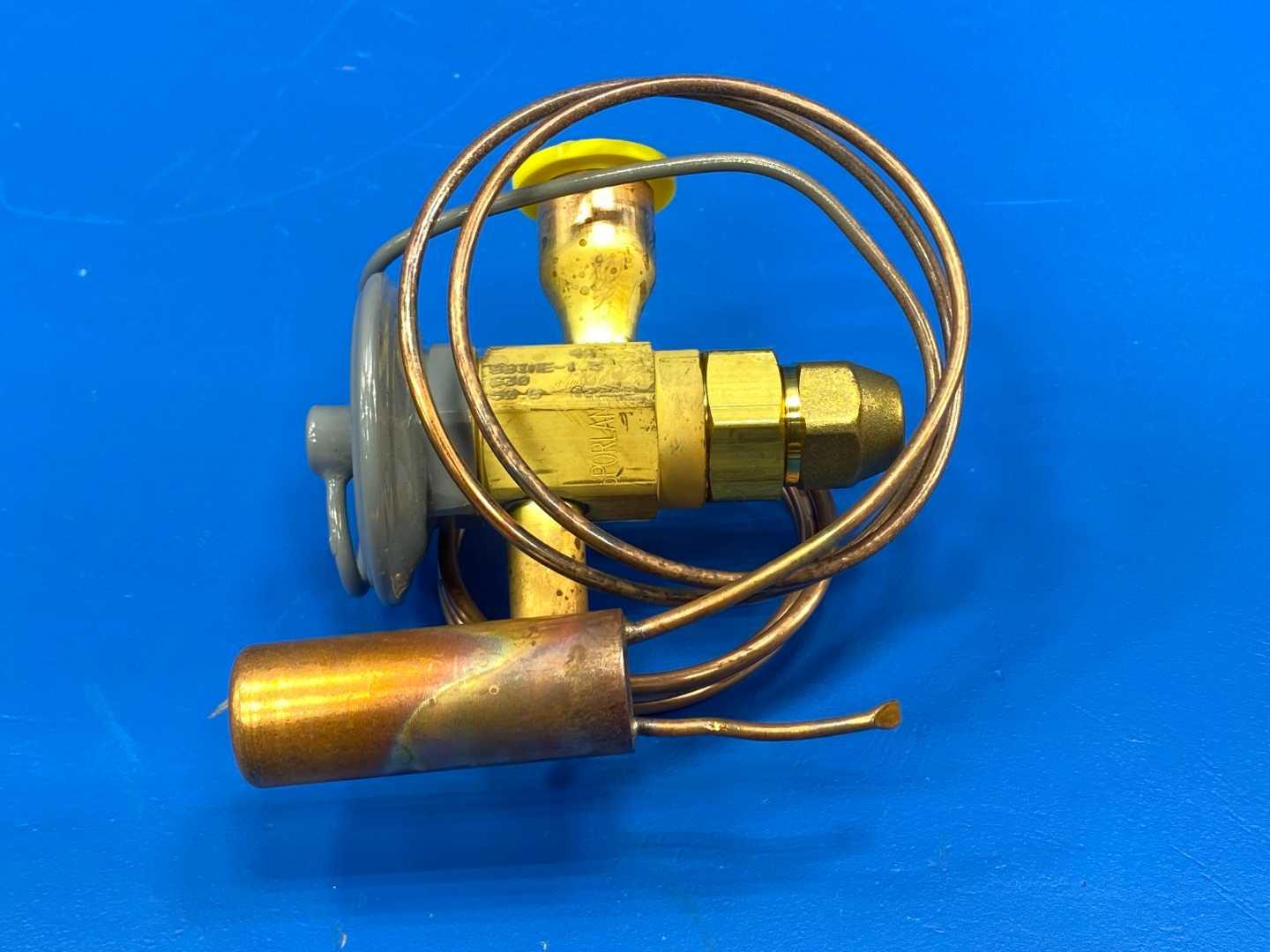

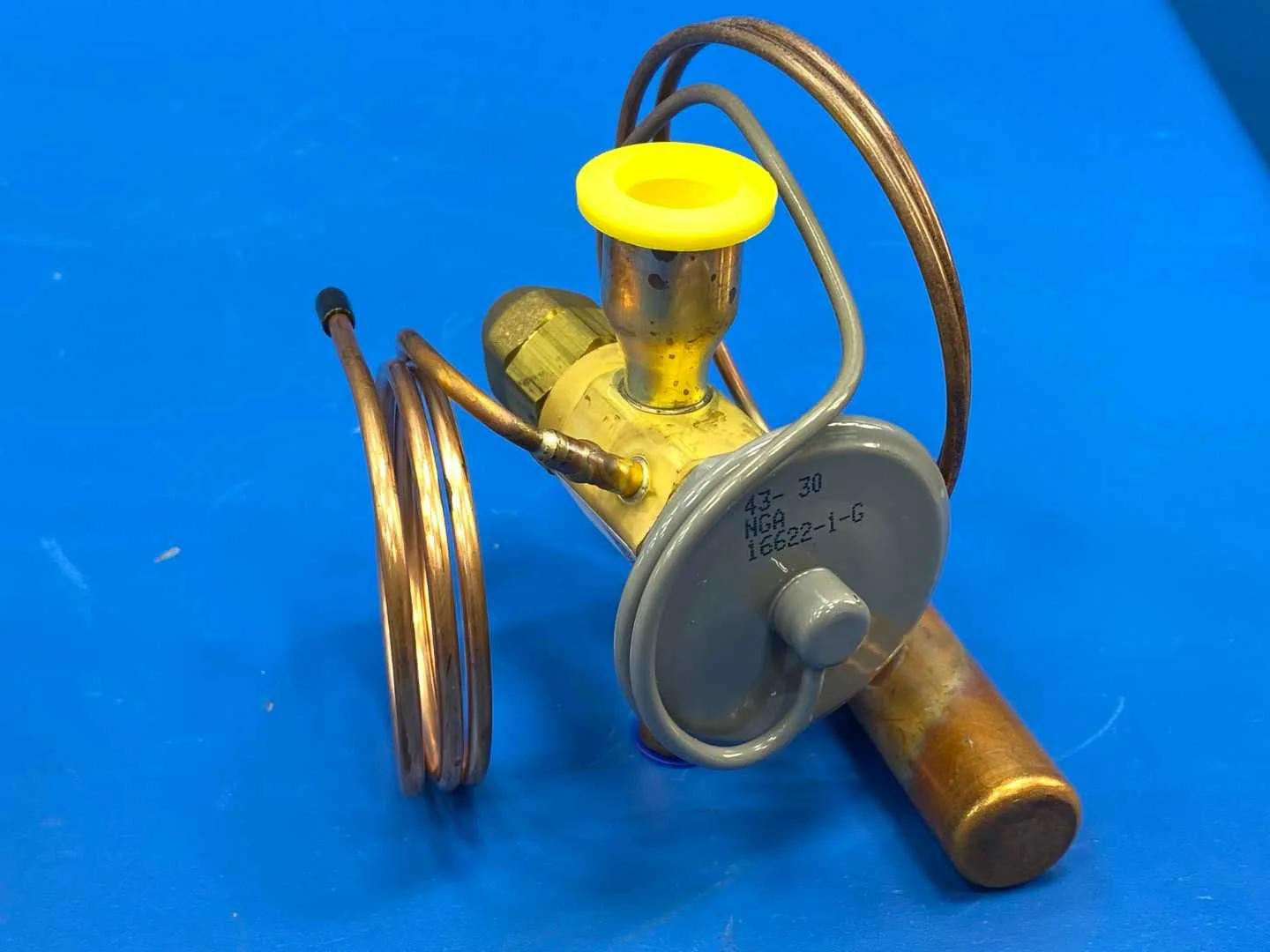

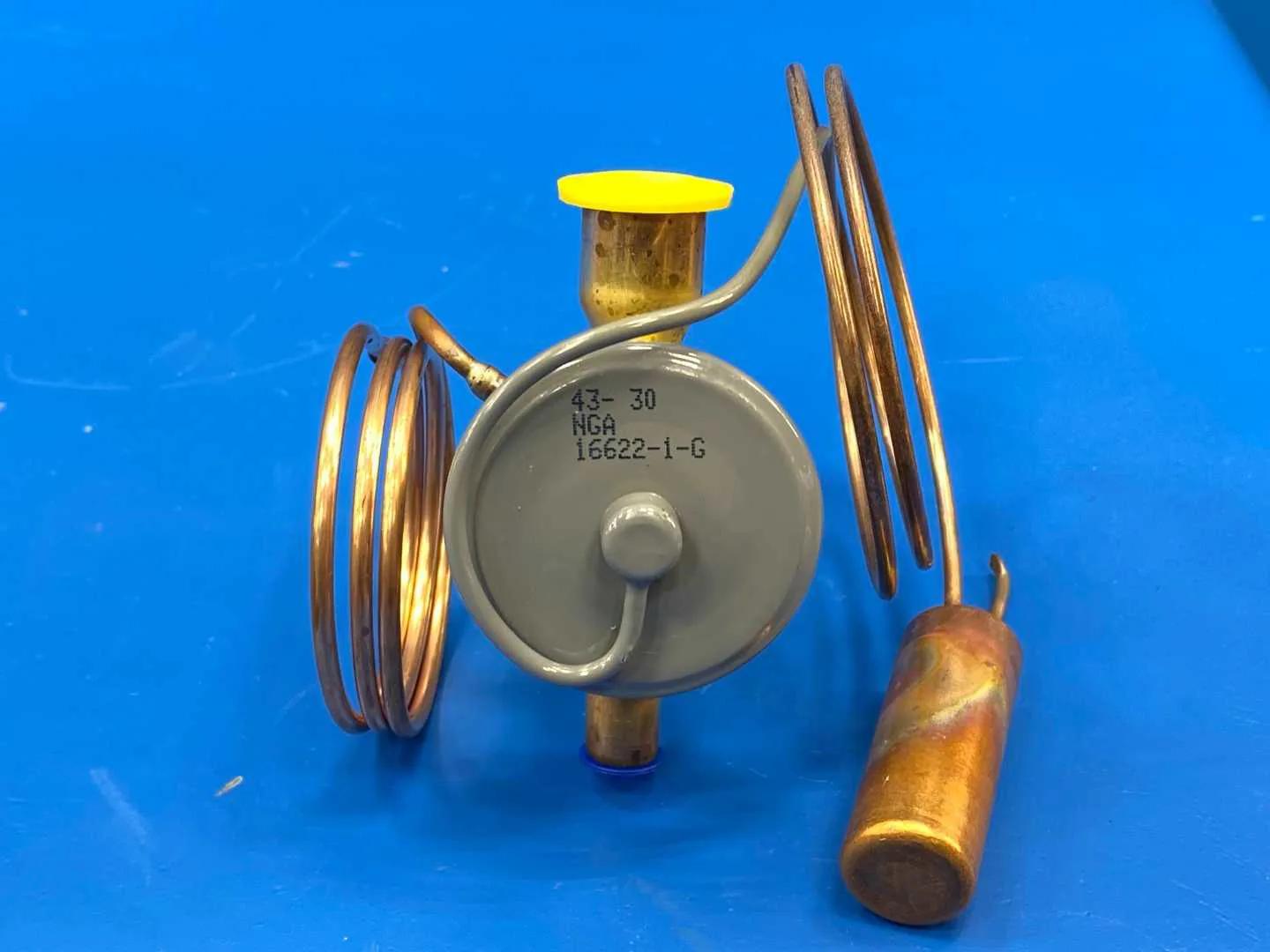

Thermostatic Expansion Valve TXV 1.5 Ton 3/8" x 5/8" ODF Sporlan BBINE-1.5-GA-B30 30" Capillary

The Sporlan BBINE-1.5-GA-B30 is a thermal expansion valve designed specifically for refrigeration and air conditioning systems. Sporlan, a division of Parker Hannifin Corporation, has been a leader in the manufacturing of refrigeration components since its inception. The company is renowned for its innovative solutions that enhance efficiency and reliability in cooling systems. The BBINE-1.5-GA-B30 model is tailored to control the flow of refrigerant in various applications, ensuring that the system operates optimally. Its primary function is to maintain the desired evaporator pressure while allowing full evaporation of the refrigerant. This regulation is crucial for maximizing energy efficiency and prolonging the lifespan of the equipment. This thermal expansion valve features a robust design that can withstand varying conditions found in commercial refrigeration and HVAC settings. It incorporates a sensing bulb that accurately measures the temperature of the refrigerant, adjusting the flow to maintain consistent performance. Key industry uses include: - Supermarkets - Cold storage facilities - Industrial chillers - Heat pumps Unique features of the BBINE-1.5-GA-B30 include: - High adaptability to different refrigerants - Precision control for improved system efficiency - Easy installation and maintenance The Sporlan BBINE-1.5-GA-B30 is a critical component for achieving optimal performance in modular chiller designs and is valued for its reliability in demanding applications.

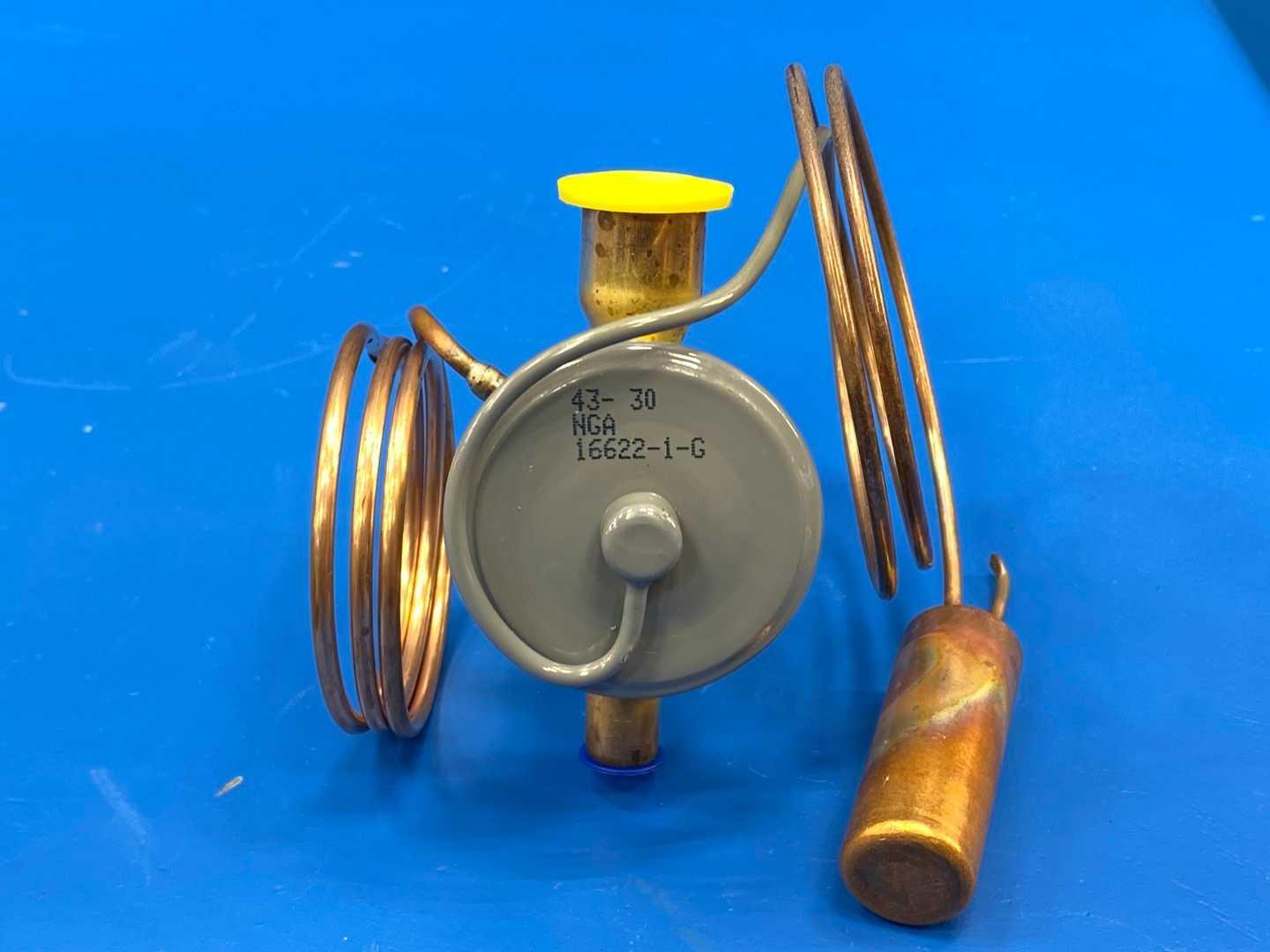

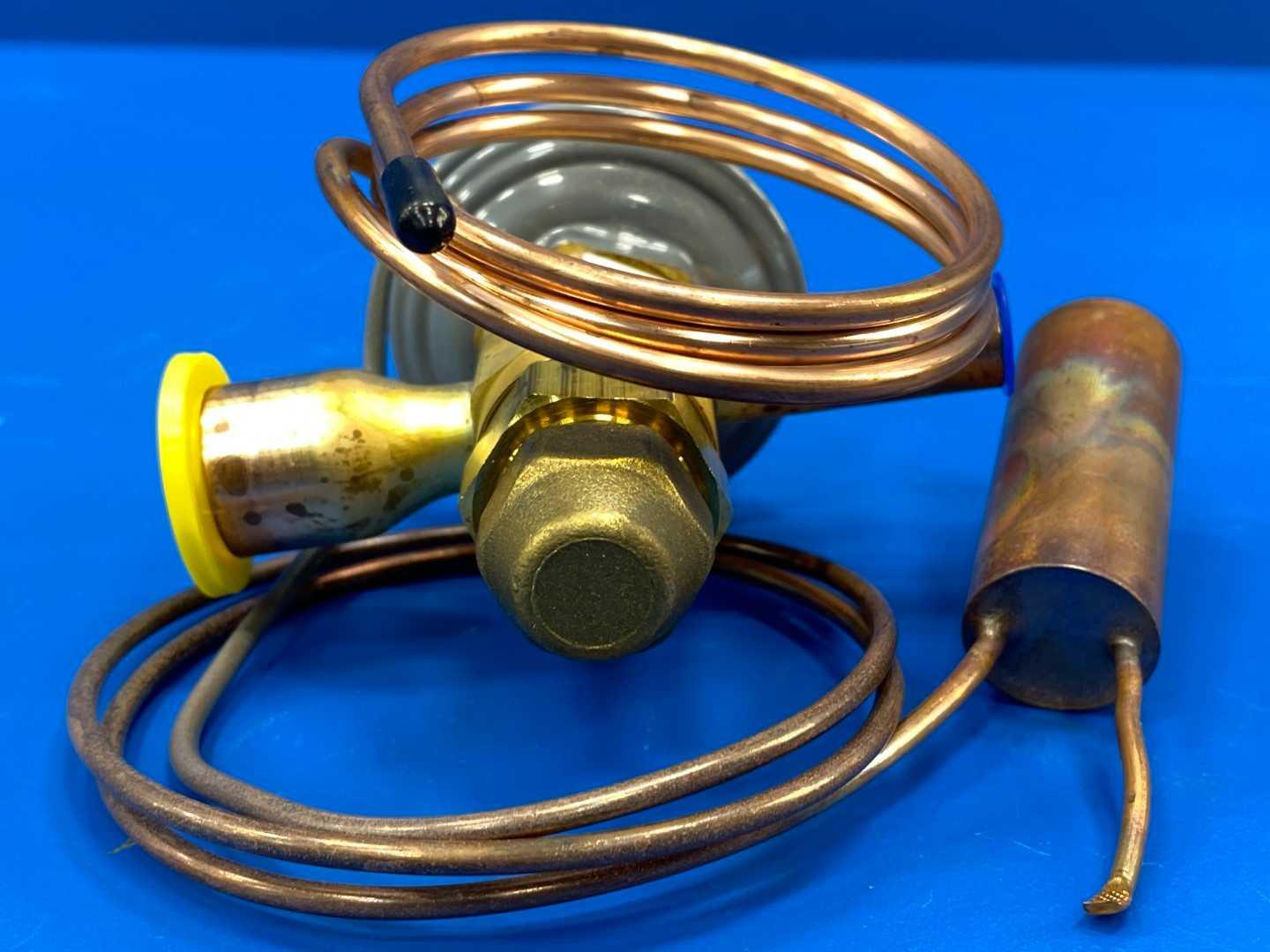

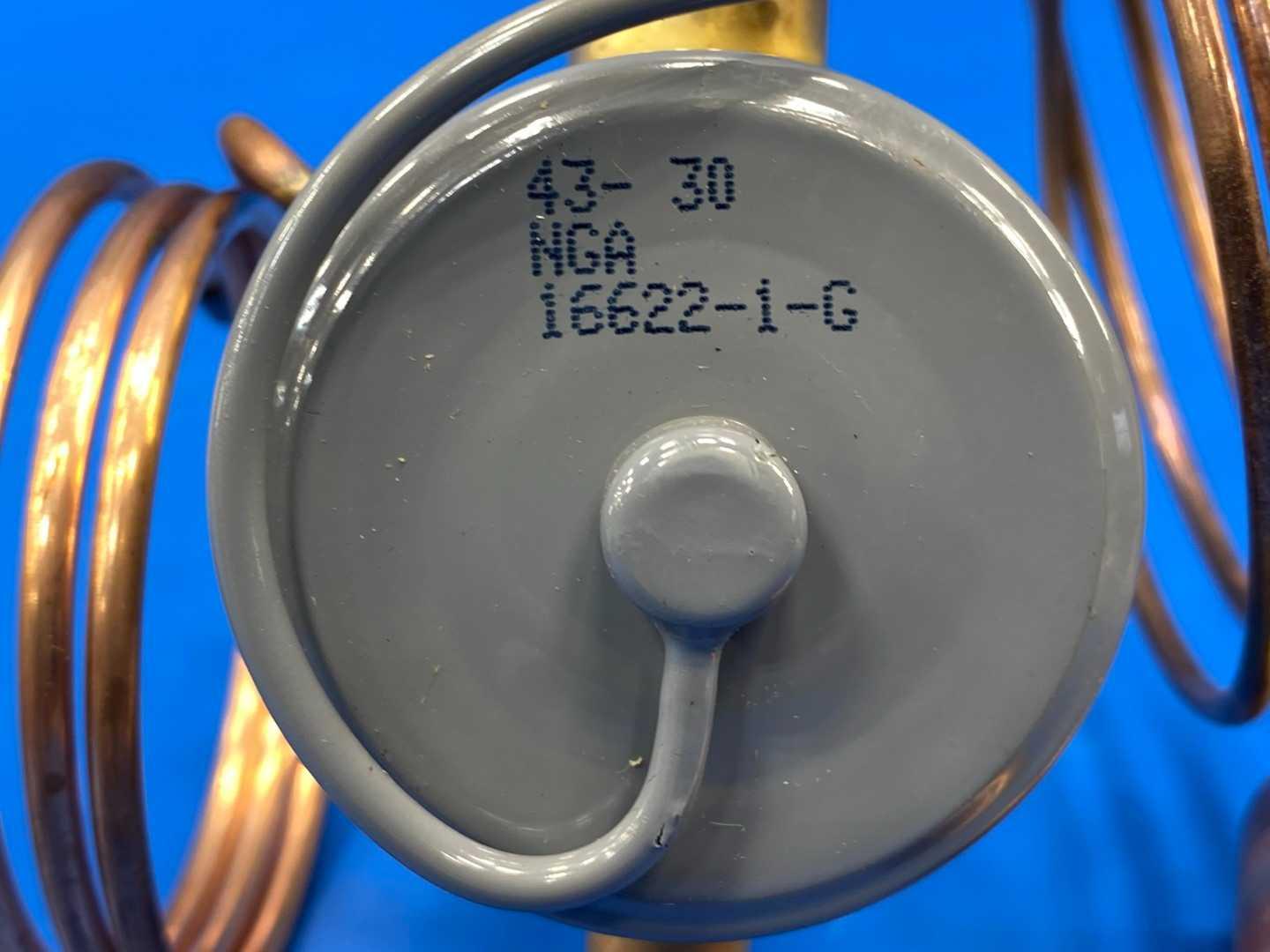

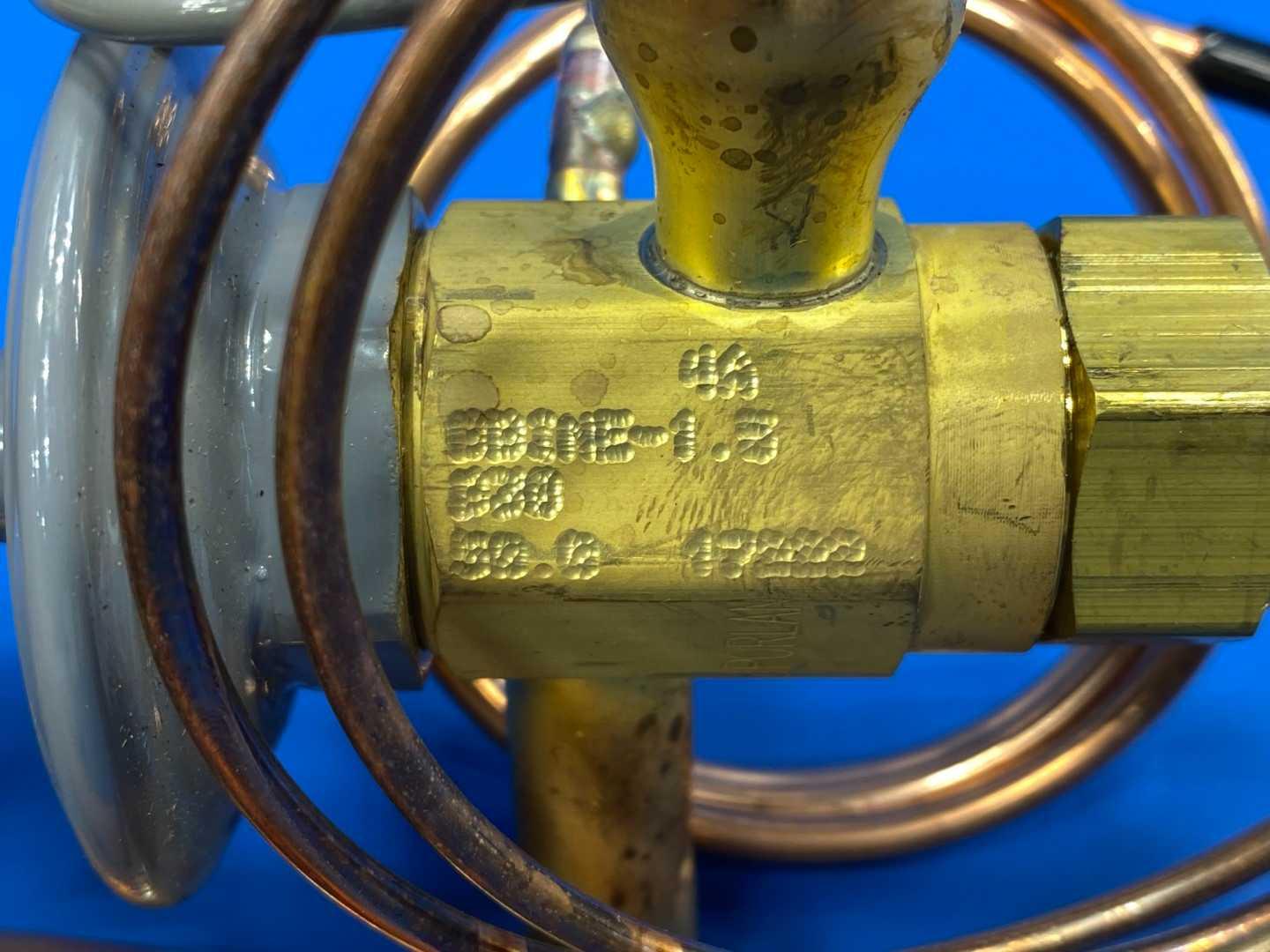

REFRIGERANT: R-407C. The letter "N" in BBINE is the Sporlan refrigerant code for R-407C, and the element carries the light brown label. This valve is NOT charged for R-22 (which uses a V/VGA element) and is NOT for R-410A (which uses a Z/ZGA No. 45 element). Manufacturer: Sporlan Division, Parker Hannifin Corporation, Washington, Missouri, USA Model: BBINE-1.5-GA-B30 Valve type: Type BBI, OEM series, balanced port construction Equalizer: External, letter "E". Required on any evaporator fed by a refrigerant distributor. Nominal capacity: 1.5 tons of refrigeration on R-407C (approximately 5.3 kW) Connections: 3/8 in ODF solder inlet x 5/8 in ODF solder outlet. ODF means a female connection sized to receive copper tubing of the corresponding OD. Capillary tubing: 30 in (762 mm) Thermostatic charge: GA, air conditioning charge. The R-407C air conditioning charges are NGA (no pressure limit) and NCP100 (MOP 90 psig, 6.2 bar). Suffix B30: OEM option code. Bulletin 10-10 does not publish a definition for this suffix. Sporlan does publish bleed-port options in this family, for example the BQC-B15 at 15 percent bleed. Confirm with us if bleed percentage matters to your application. Thermostatic element: knife edge joint, No. 43 size on current production BBI valves, replaceable Body and internals: machined brass bar body, stainless steel pin, stainless steel pushrod, fittings silver soldered to the body Capacity rating basis: ANSI/ARI Standard 750, vapor-free 100 F (37.8 C) liquid entering the valve, 7 F (4 K) maximum opening superheat Current-production equivalent: Sporlan Type ER in the R-407C charge, nominal 1-1/2 ton. Bulletin 10-10 lists Type ER as the replacement for BBI valves. The nominal 1-1/2 ton ER is rated on R-407C at 1.59 tons at 40 F (4.4 C) evaporator, 1.71 tons at 20 F (-6.7 C) and 1.51 tons at 0 F (-17.8 C). Source: Parker Sporlan Bulletin 10-10, April 2011, pages 3, 13, 18, 35 and 36. Bulletin 10-10-8, March 2012, page 5.
