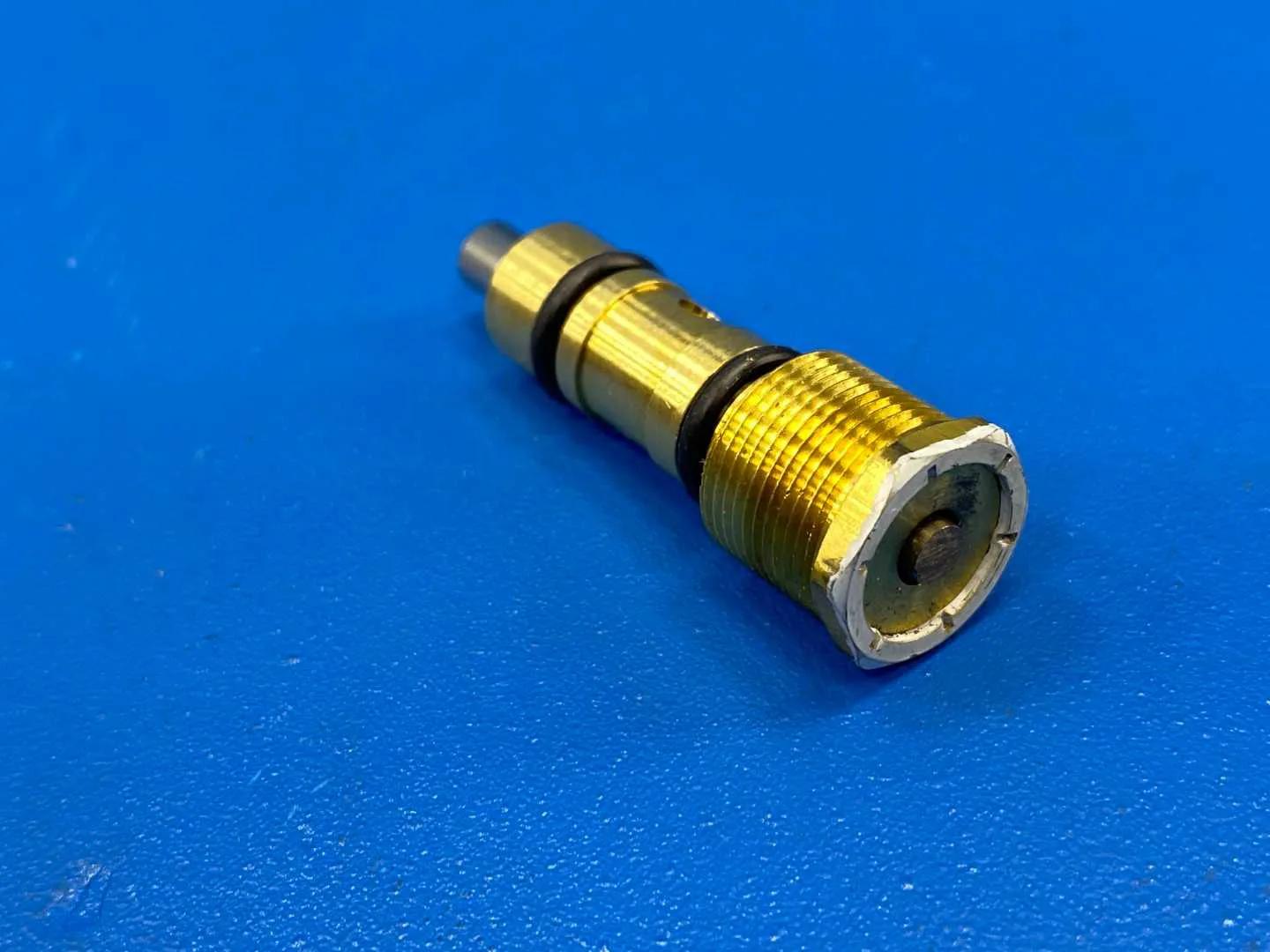

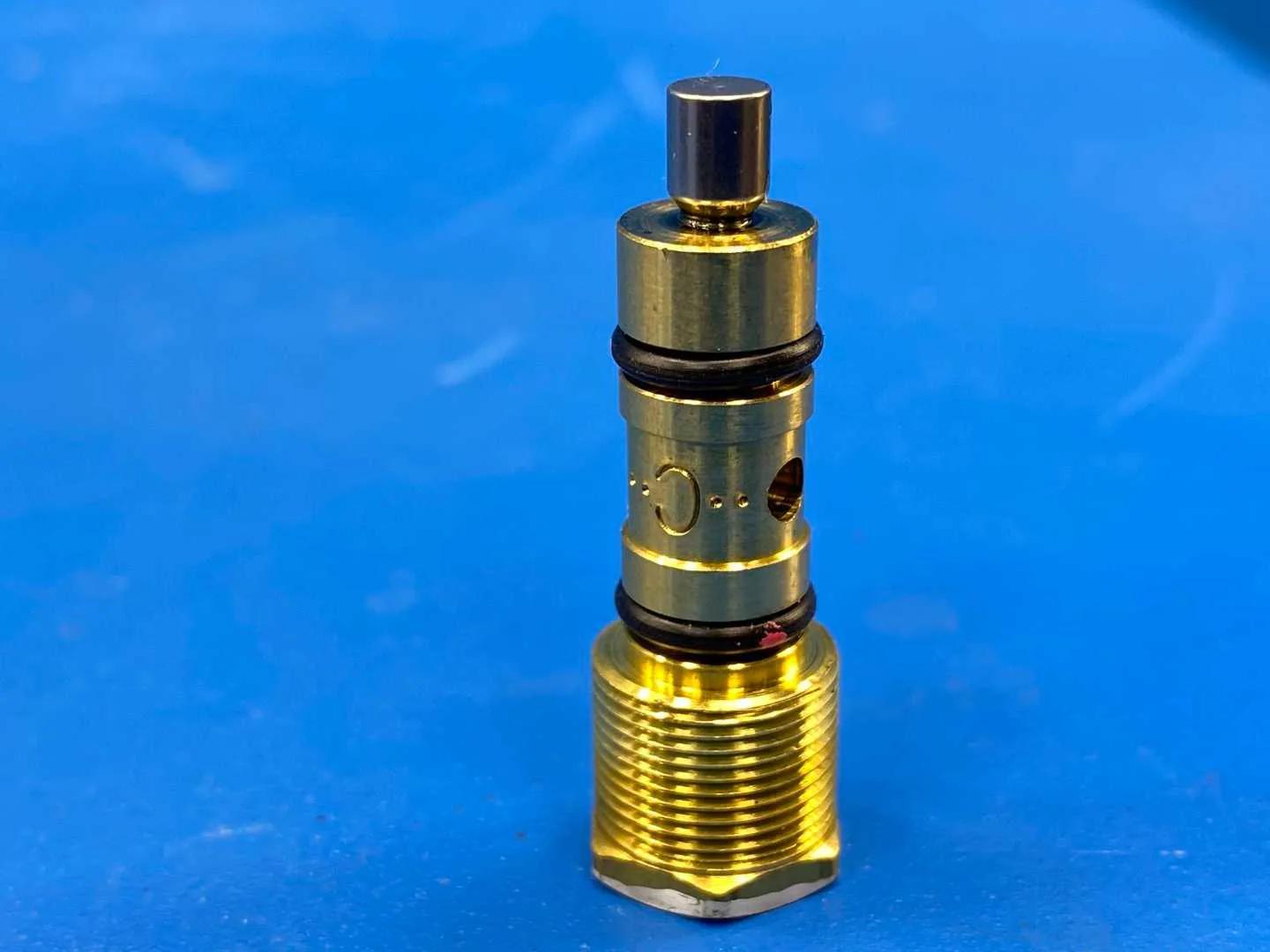

Sporlan TXV Valve Cartridge Size C Balanced Port BQC-C White 168308

The Sporlan Thermostatic Expansion Valve 168308 BQC-C is a key component in refrigeration and air conditioning systems. Originally designed to enhance the efficiency of these systems, this valve plays a critical role in regulating refrigerant flow based on the cooling needs. This particular model, identified by its part number 168308, is known for its high reliability and precision in controlling the refrigerant vapor flow. Industry use primarily includes commercial refrigeration, air conditioning systems in residential buildings, and industrial cooling applications. Unique features of this product include its robust construction, ability to maintain optimal thermal performance, and ease of installation. The cartridge-type design simplifies maintenance and replacement, making it a favored choice among HVAC professionals. Overall, the Sporlan 168308 Thermostatic Expansion Valve is vital for energy efficiency, system reliability, and effective performance in temperature control.

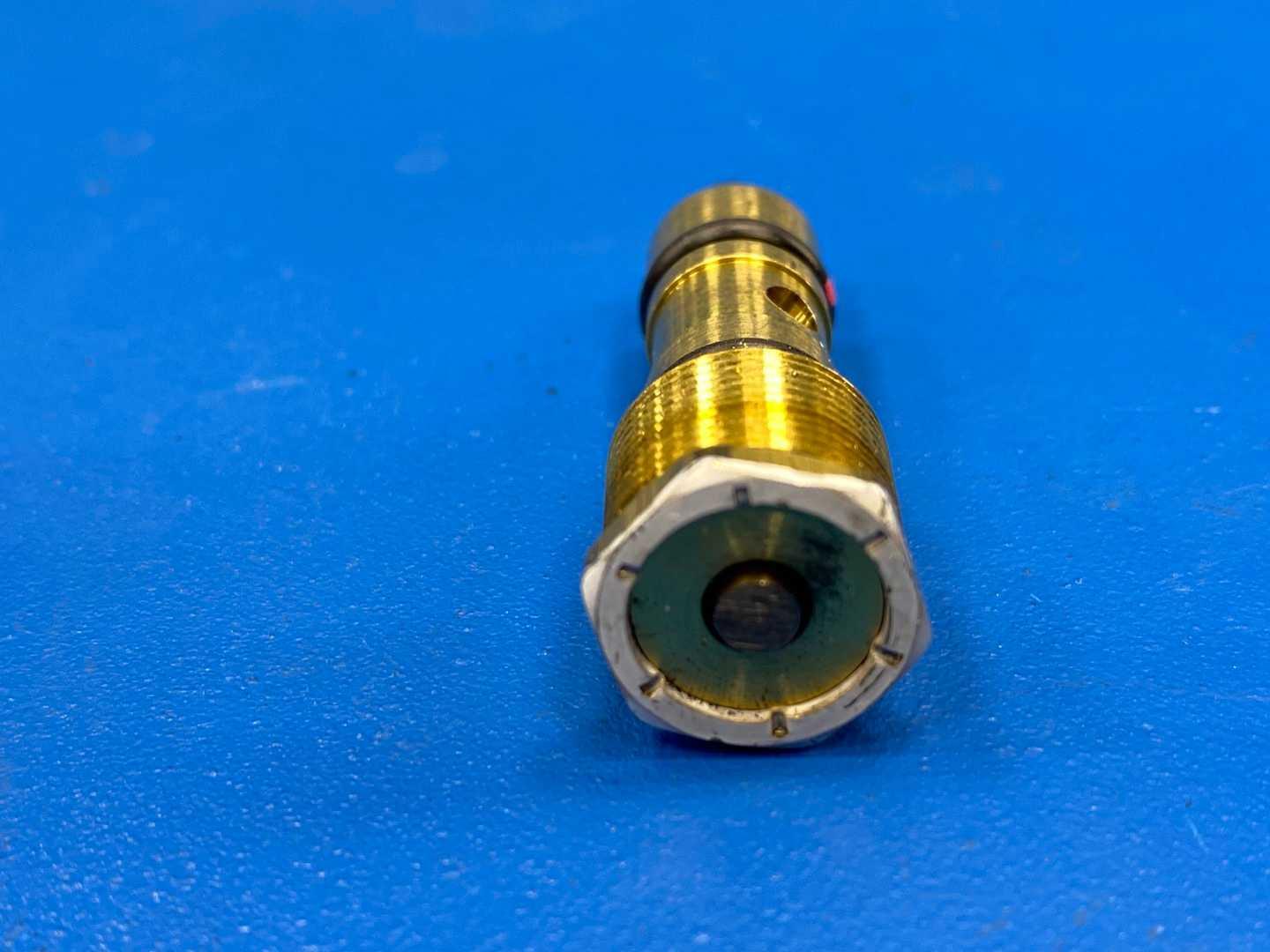

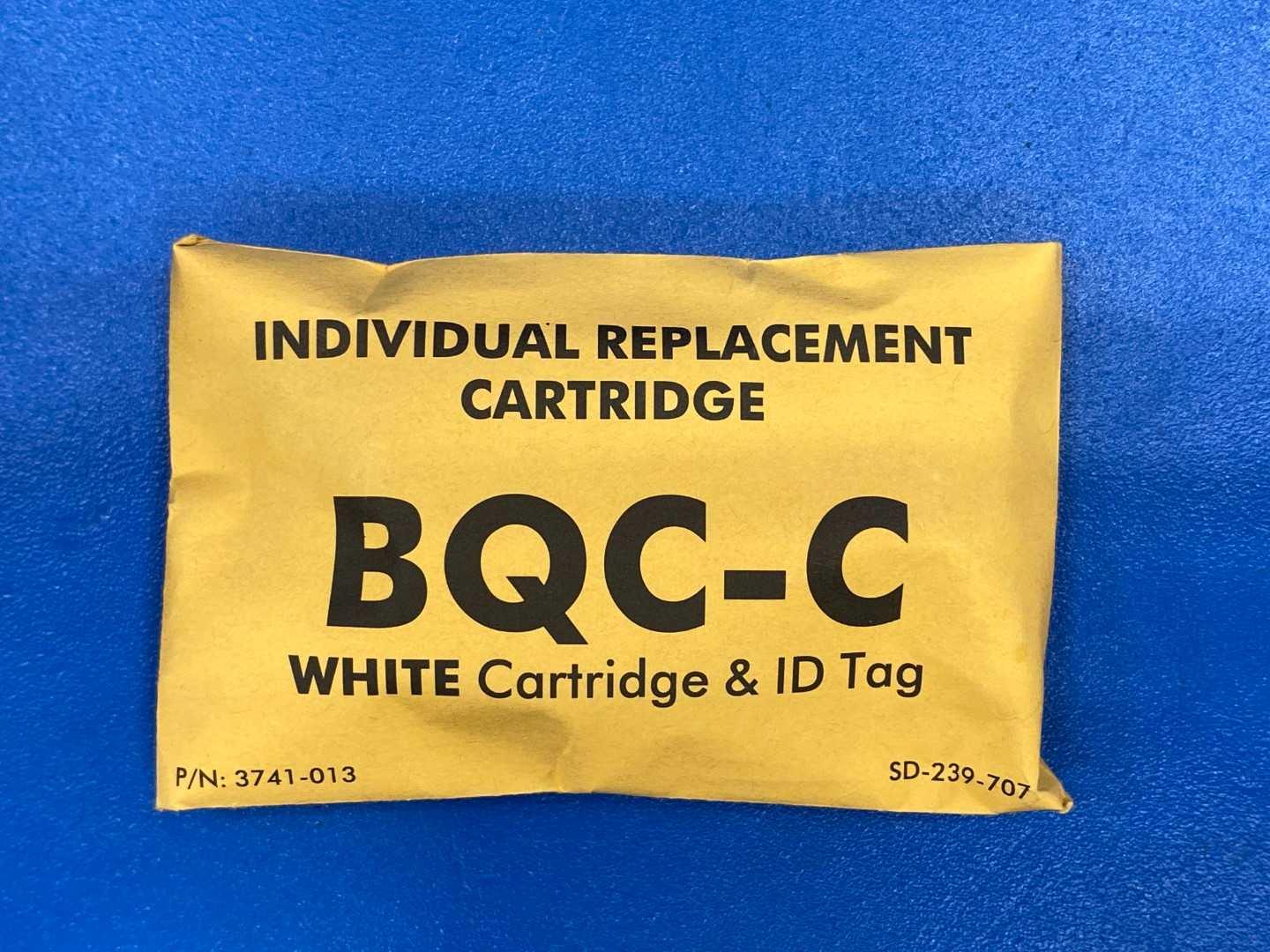

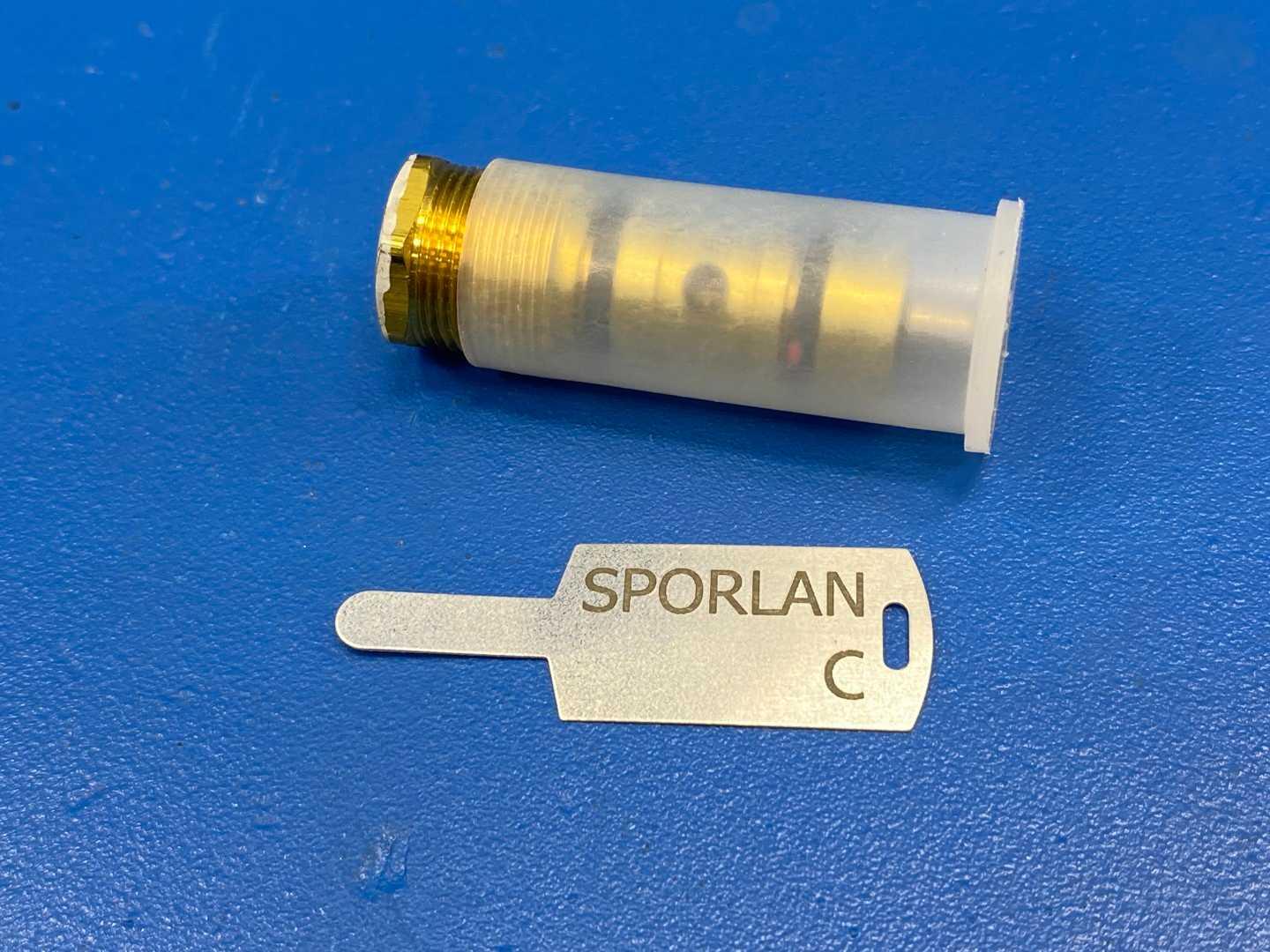

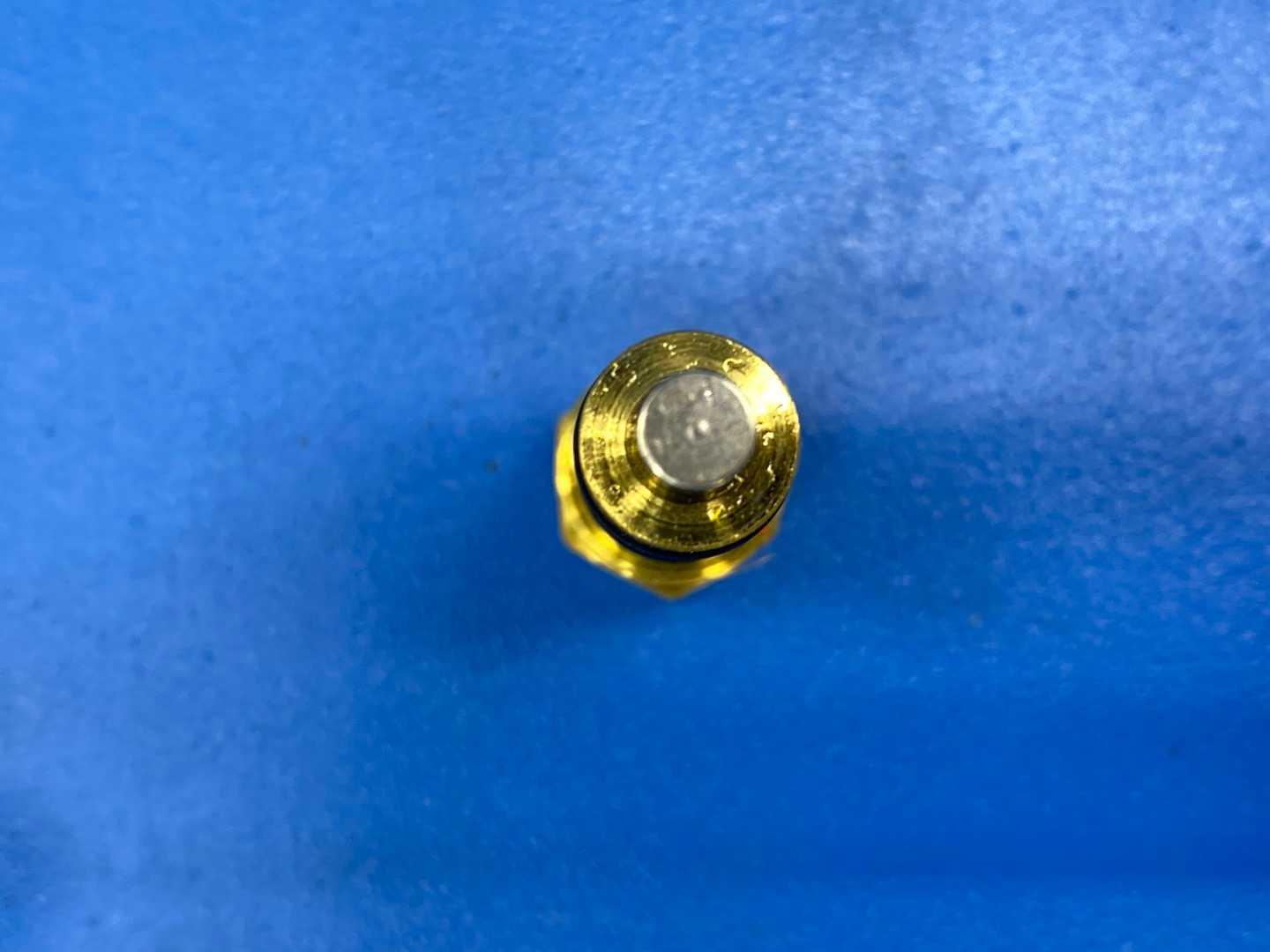

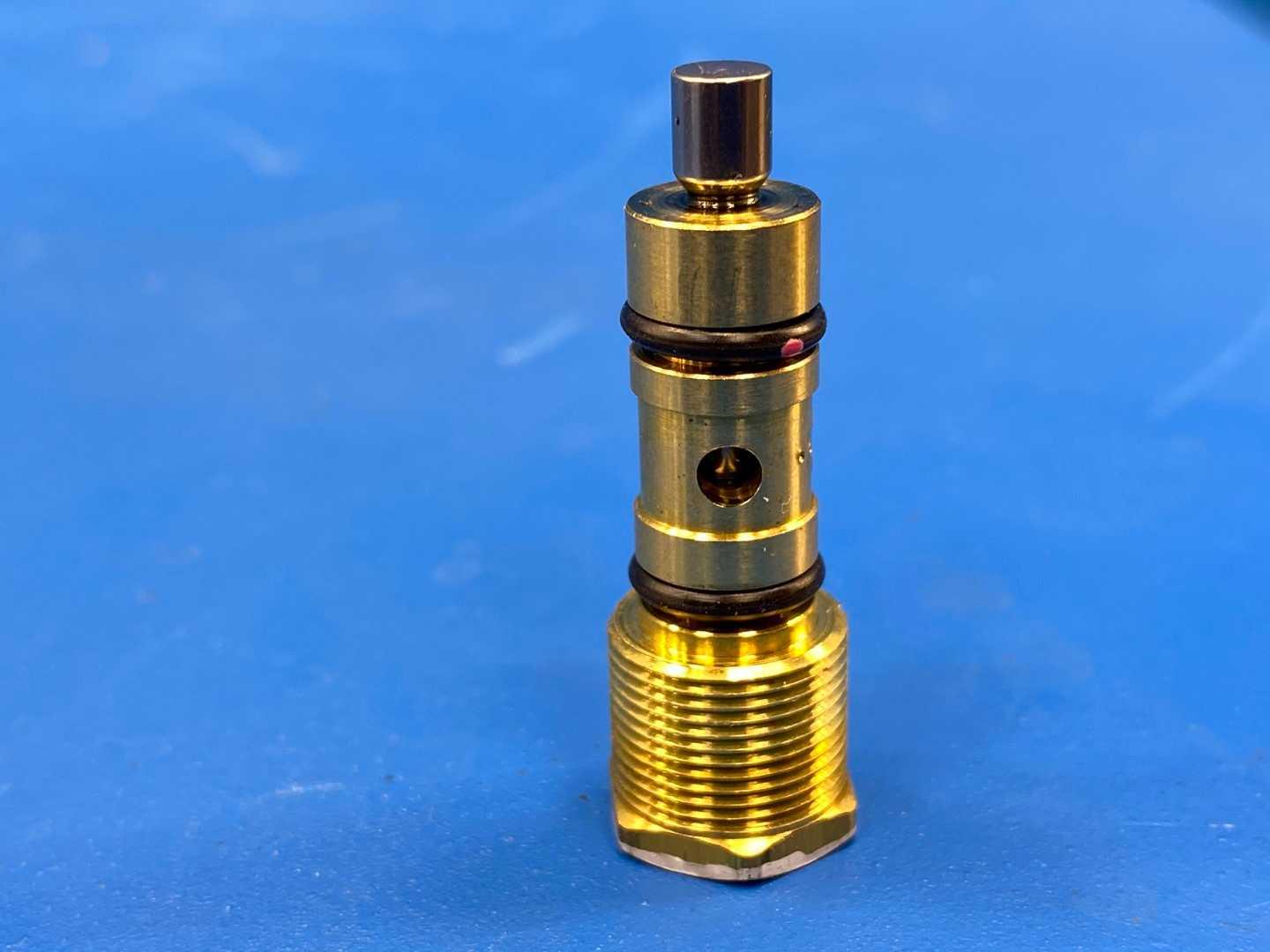

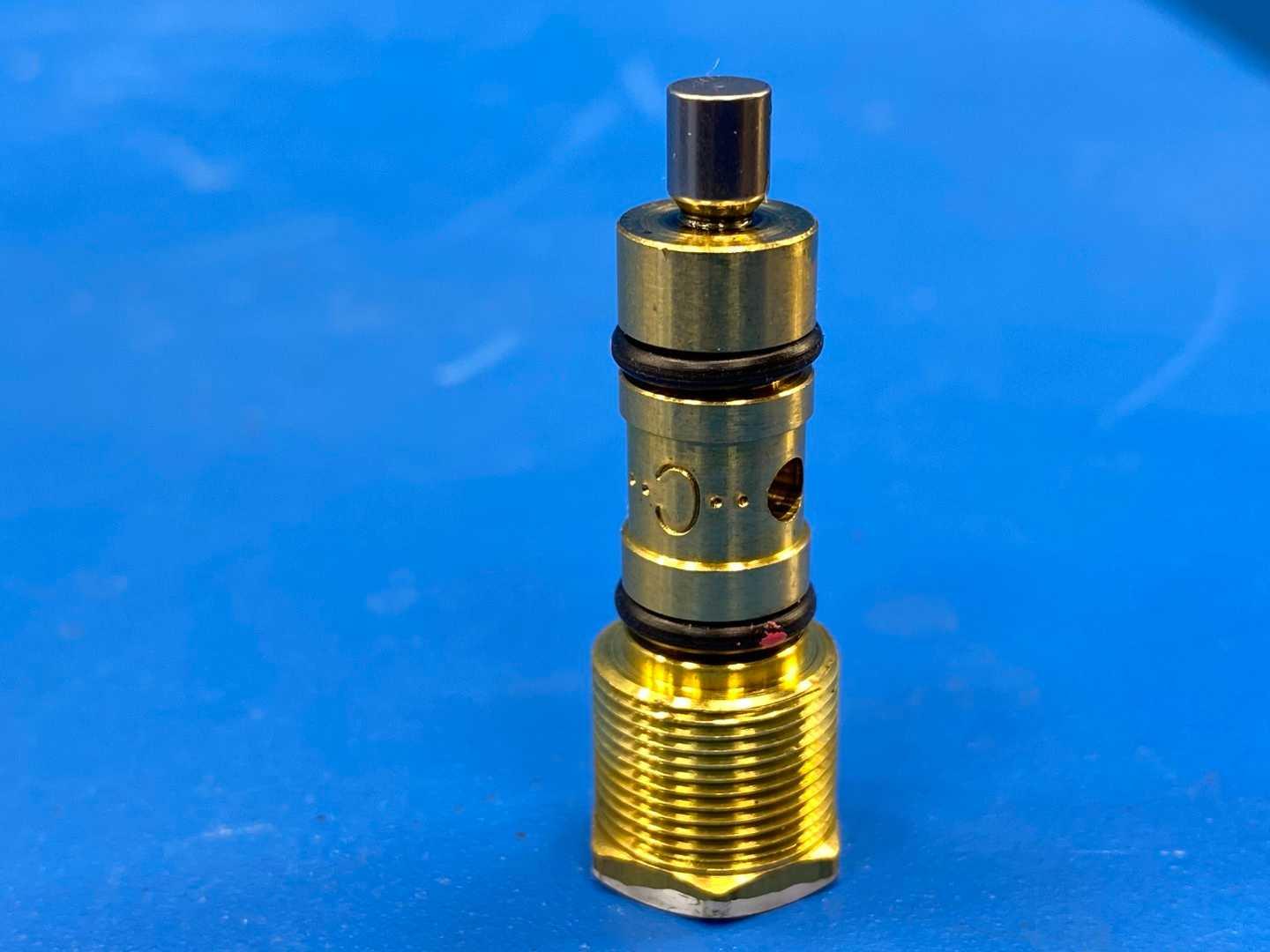

REFRIGERANT: The cartridge itself is refrigerant-independent brass hardware. Refrigerant is set by the thermostatic element it is paired with: KT-43 for the R-22 family, KT-45 for R-410A. What DOES change with refrigerant is the cartridge capacity, listed below. IMPORTANT FITMENT: BQC cartridges fit balanced-port bodies only, meaning types BQ, BQE, EBQ, EBQE, SBQ and SBQE. They will not fit the conventional-port Q, EQ or SQ bodies, which use QC-series cartridges. Types Q, EQ and SQ are not approved for R-410A at all. R-410A elements are approved for BQ, EBQ and SBQ bodies only. Manufacturer: Sporlan Division, Parker Hannifin Corporation, Washington, Missouri, USA Part number: 168308 Cartridge designation: BQC-C Cartridge size: C Color code: White, on the top surface of the cartridge Identification: capacity code stamped on the cartridge, plus an ID tag that bends around the capillary tubing NOMINAL CAPACITY BY REFRIGERANT, tons of refrigeration: R-22 and R-422D: 3-1/4 to 5-1/2 tons (11.4 to 19.3 kW) R-410A: 4 to 6 tons (14.1 to 21.1 kW) R-134a: 2 to 3 tons (7.0 to 10.6 kW) R-404A: 2-1/4 to 3 tons (7.9 to 10.6 kW) R-507: 2-1/4 to 3 tons (7.9 to 10.6 kW) R-12: 2 to 3 tons (7.0 to 10.6 kW) R-401A: 2 to 3 tons (7.0 to 10.6 kW) R-402A: 2-1/4 to 3 tons (7.9 to 10.6 kW) Related part: this cartridge is one of the sizes supplied in the Sporlan BQ Cartridge Service Kit, part number 184007. A 15 percent bleed-port version is published as BQC-C-B15. Capacity rating basis: ANSI/ARI Standard 750, vapor-free 100 F (37.8 C) liquid entering the valve, 7 F (4 K) maximum opening superheat Note: a complete valve requires three parts, being the body, the cartridge and the thermostatic element. This listing is the cartridge only. Source: Parker Sporlan Bulletin 10-10, April 2011, pages 3, 17, 18, 19 and 20.
