Sporlan TXV Valve Cartridge Size B Balanced Port BQC-B Pink 168307

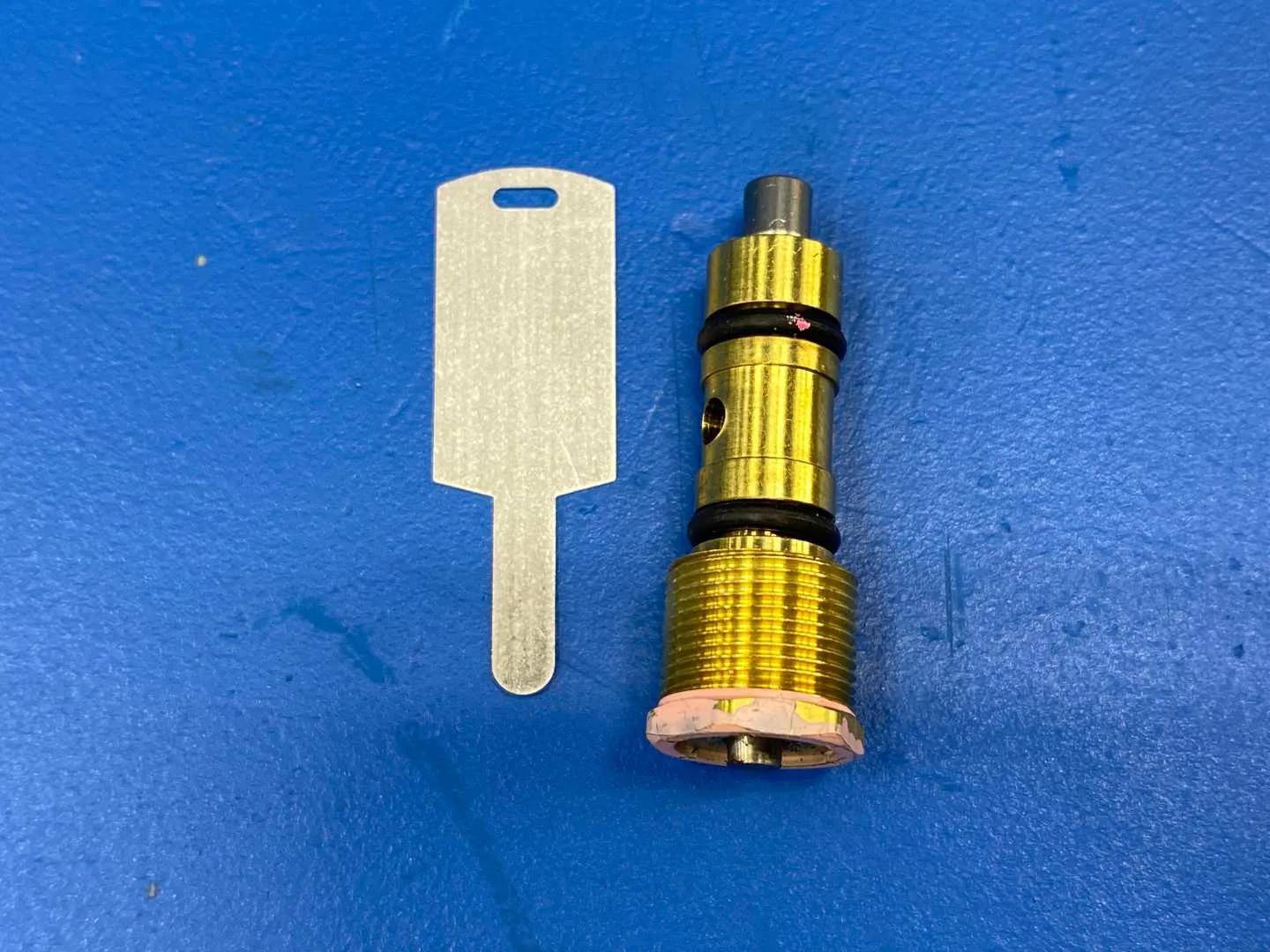

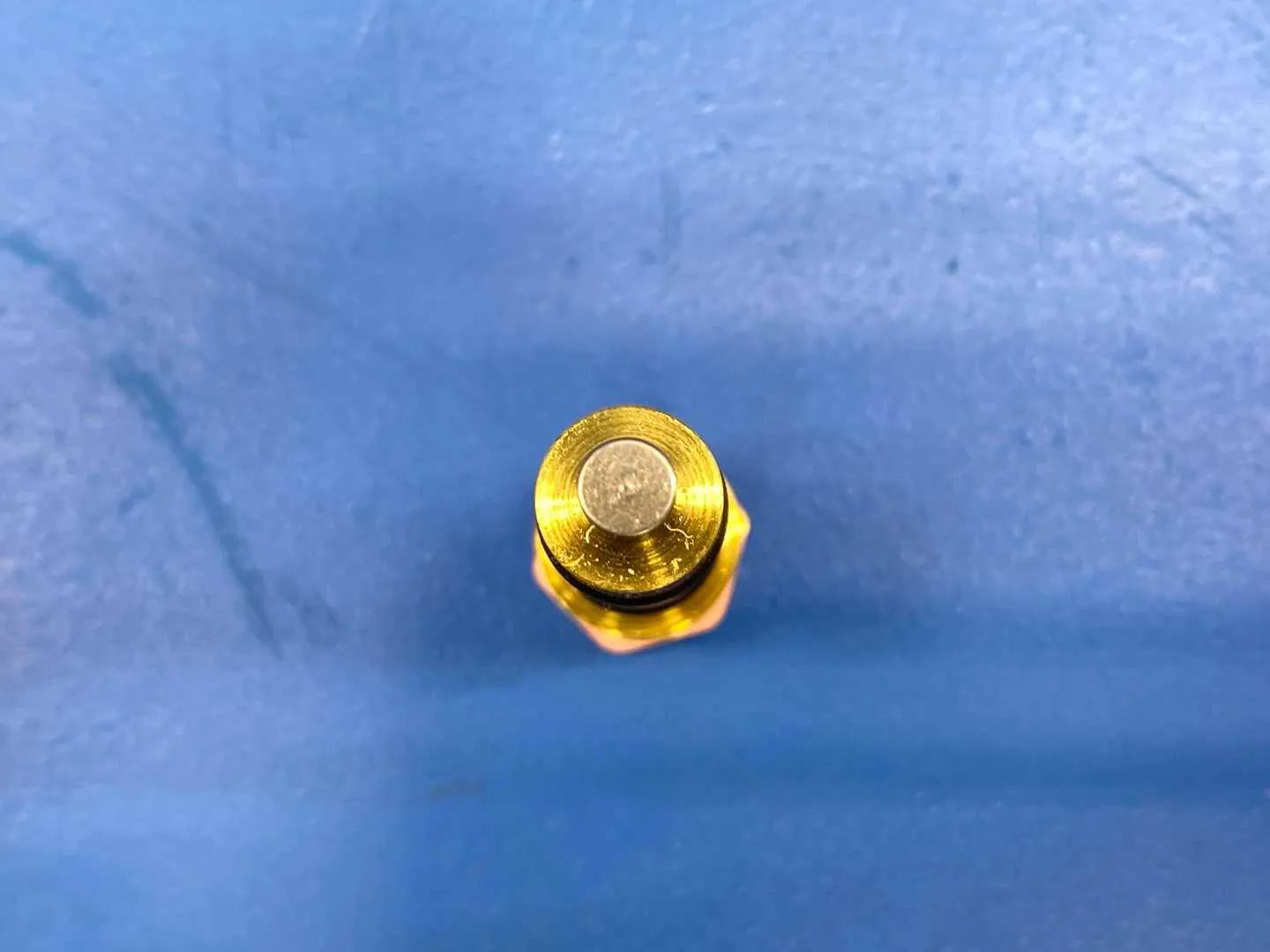

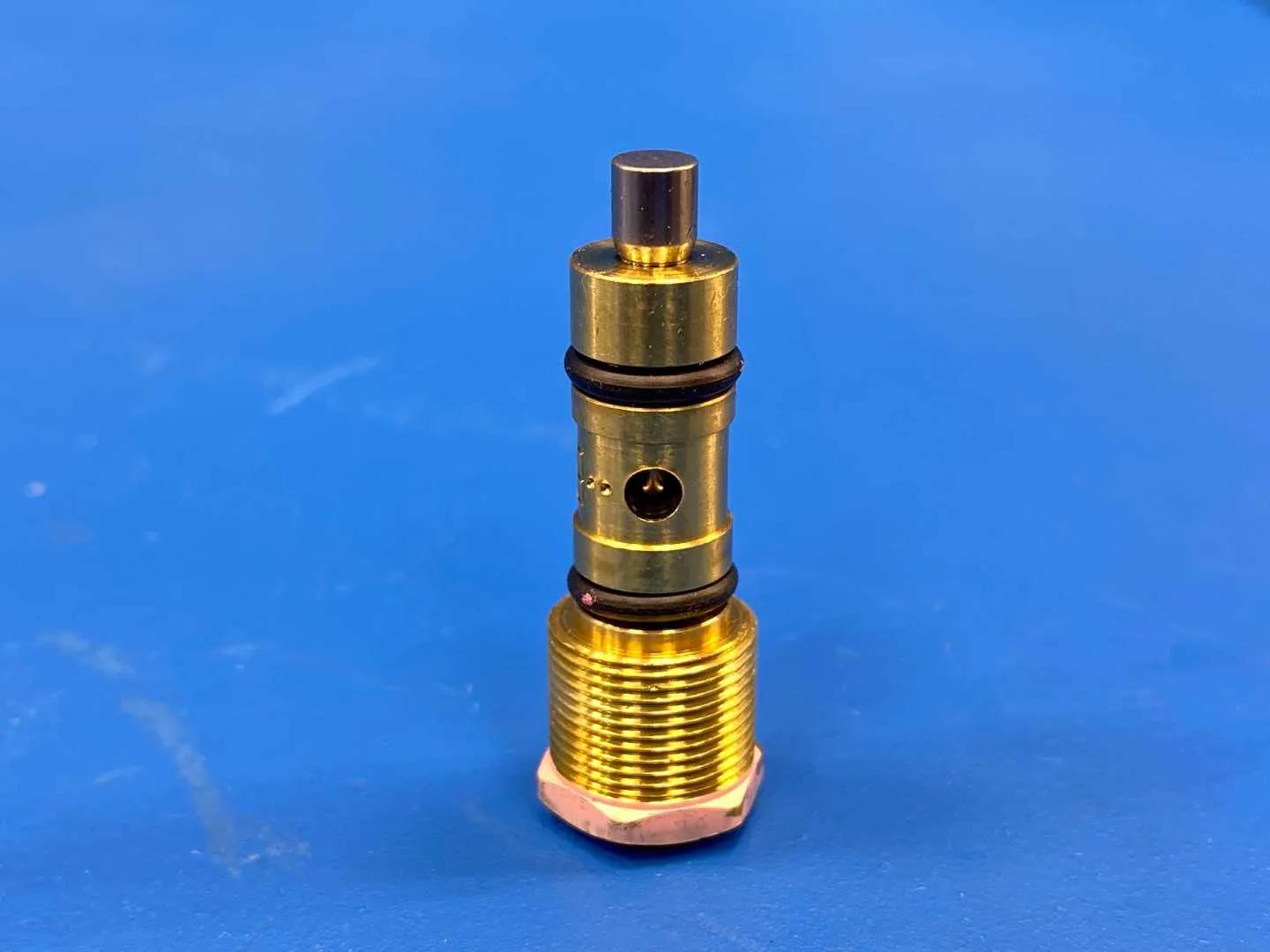

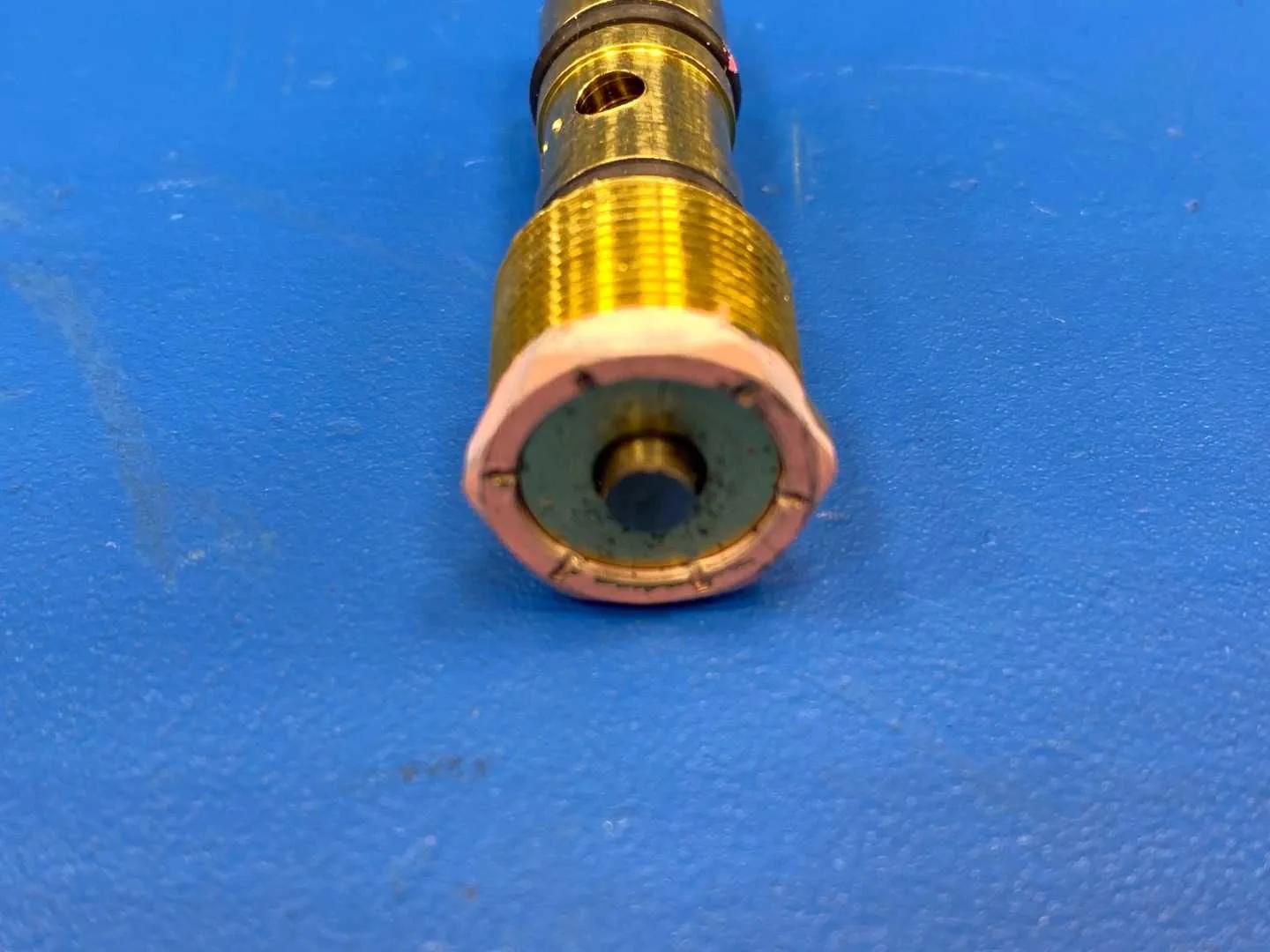

REFRIGERANT: The cartridge itself is refrigerant-independent brass hardware. Refrigerant is set by the thermostatic element it is paired with: KT-43 for the R-22 family, KT-45 for R-410A. What DOES change with refrigerant is the cartridge capacity, listed below. IMPORTANT FITMENT: BQC cartridges fit balanced-port bodies only, meaning types BQ, BQE, EBQ, EBQE, SBQ and SBQE. They will not fit the conventional-port Q, EQ or SQ bodies, which use QC-series cartridges. Types Q, EQ and SQ are not approved for R-410A at all. R-410A elements are approved for BQ, EBQ and SBQ bodies only. Manufacturer: Sporlan Division, Parker Hannifin Corporation, Washington, Missouri, USA Part number: 168307 Cartridge designation: BQC-B Cartridge size: B Color code: Pink, on the top surface of the cartridge Identification: capacity code stamped on the cartridge, plus an ID tag that bends around the capillary tubing NOMINAL CAPACITY BY REFRIGERANT, tons of refrigeration: R-22 and R-422D: 1-3/4 to 3 tons (6.2 to 10.6 kW) R-410A: 2 to 3-1/2 tons (7.0 to 12.3 kW) R-134a: 1-1/4 to 1-3/4 tons (4.4 to 6.2 kW) R-404A: 1-1/4 to 2 tons (4.4 to 7.0 kW) R-507: 1-1/4 to 2 tons (4.4 to 7.0 kW) R-12: 1-1/4 to 1-3/4 tons (4.4 to 6.2 kW) R-401A: 1-1/4 to 1-3/4 tons (4.4 to 6.2 kW) R-402A: 1-1/4 to 2 tons (4.4 to 7.0 kW) Related part: this cartridge is one of the sizes supplied in the Sporlan BQ Cartridge Service Kit, part number 184007. A 15 percent bleed-port version is published as BQC-B-B15. Capacity rating basis: ANSI/ARI Standard 750, vapor-free 100 F (37.8 C) liquid entering the valve, 7 F (4 K) maximum opening superheat Note: a complete valve requires three parts, being the body, the cartridge and the thermostatic element. This listing is the cartridge only. Source: Parker Sporlan Bulletin 10-10, April 2011, pages 3, 17, 18, 19 and 20.
