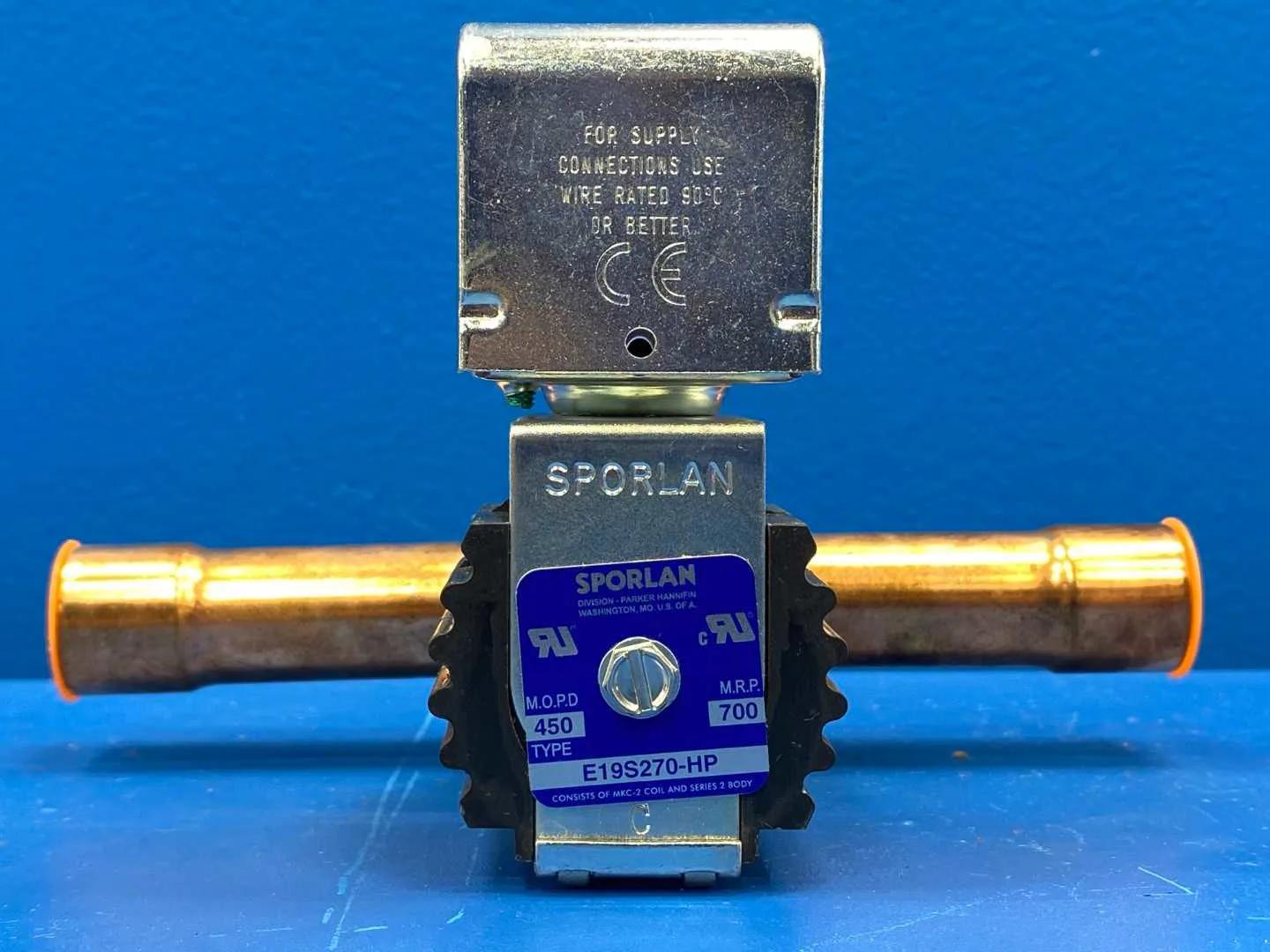

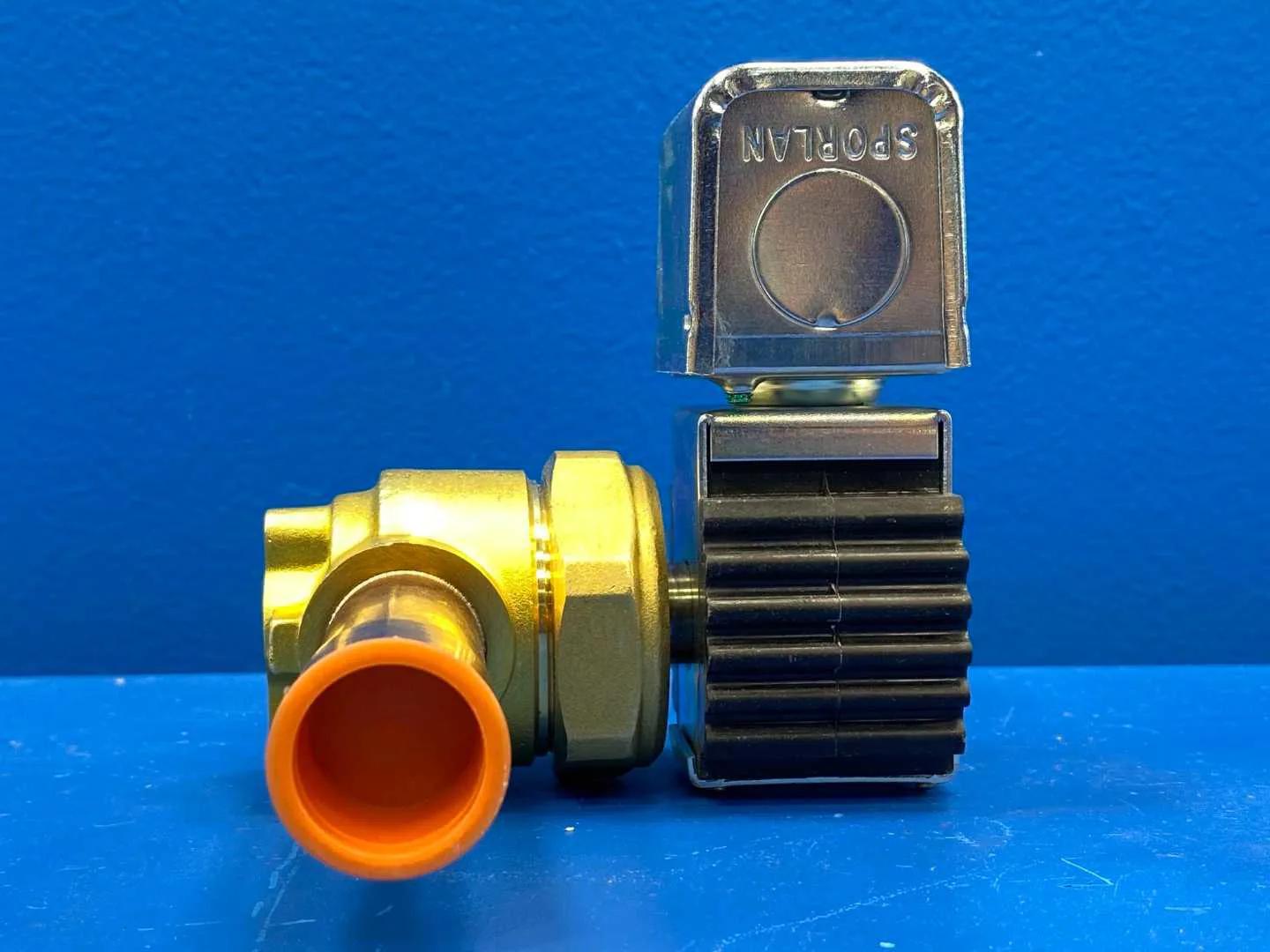

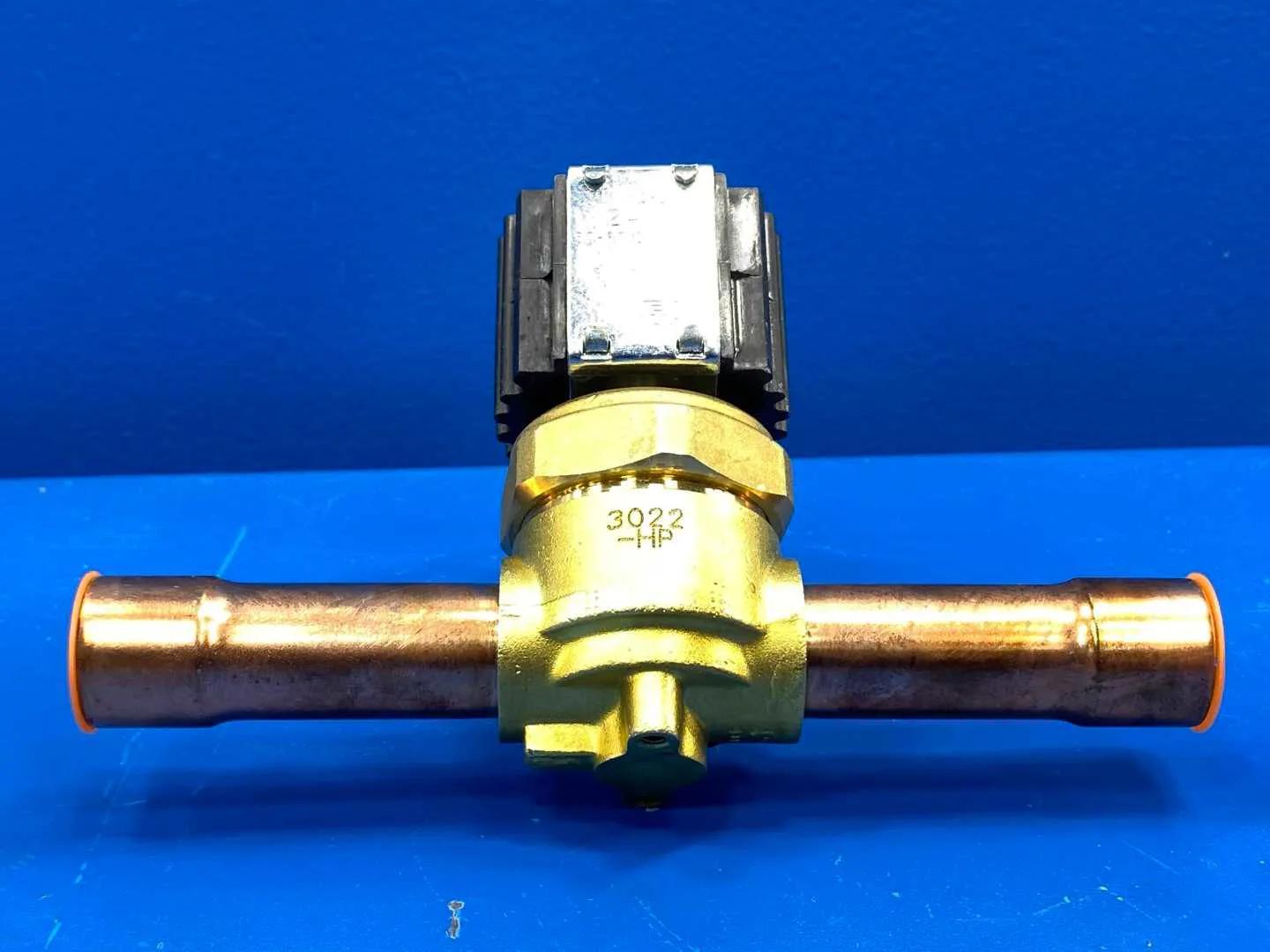

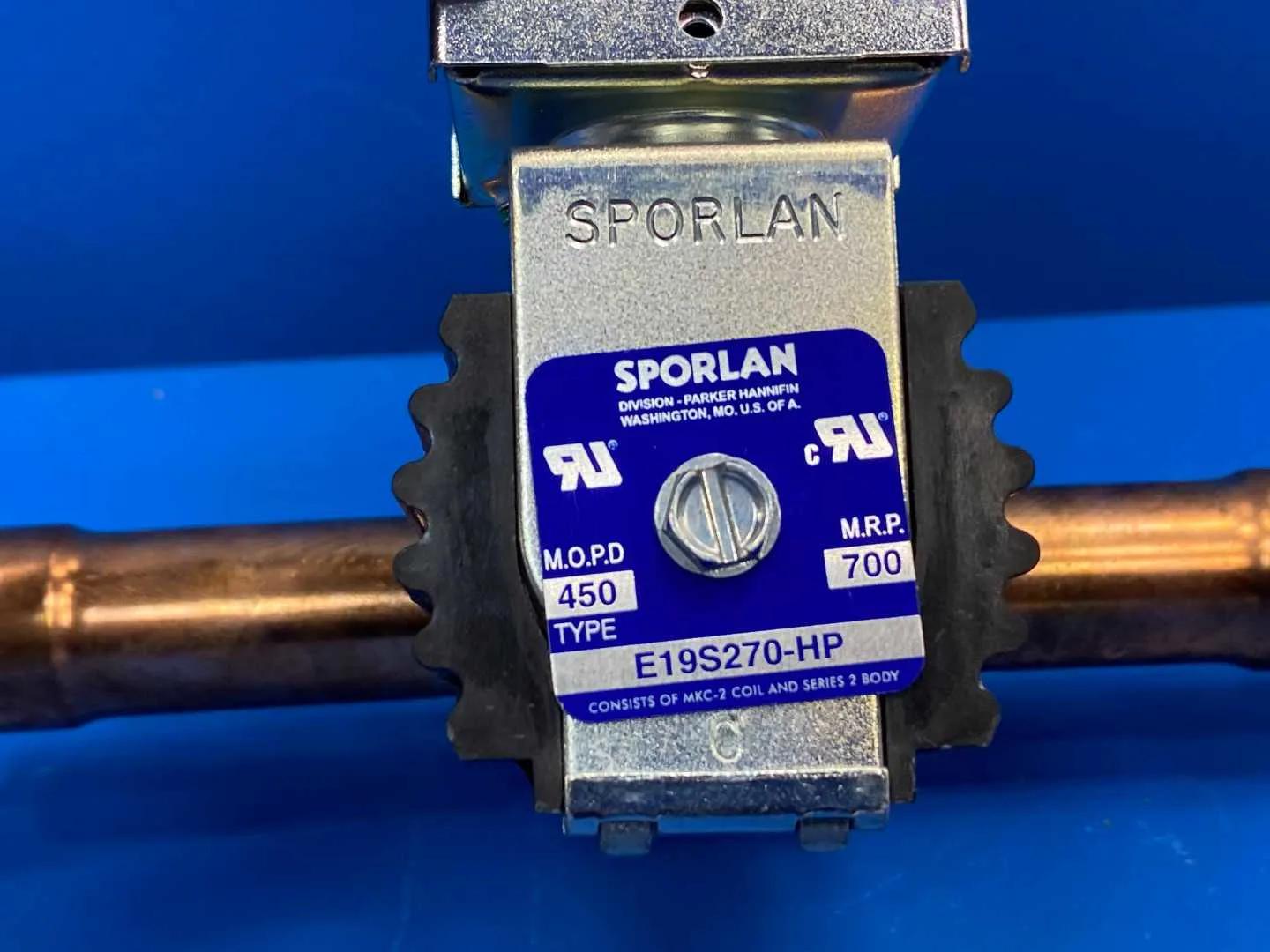

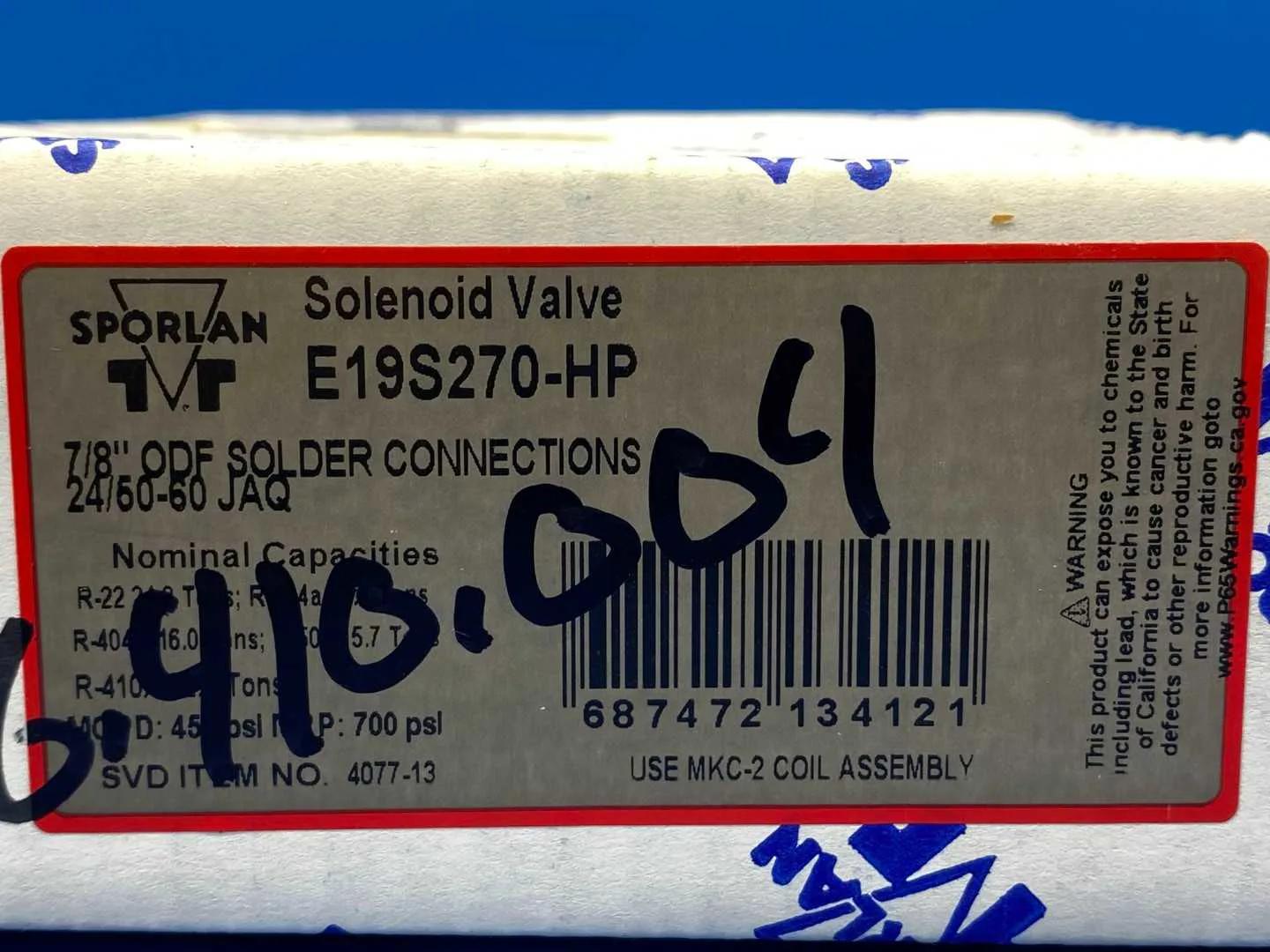

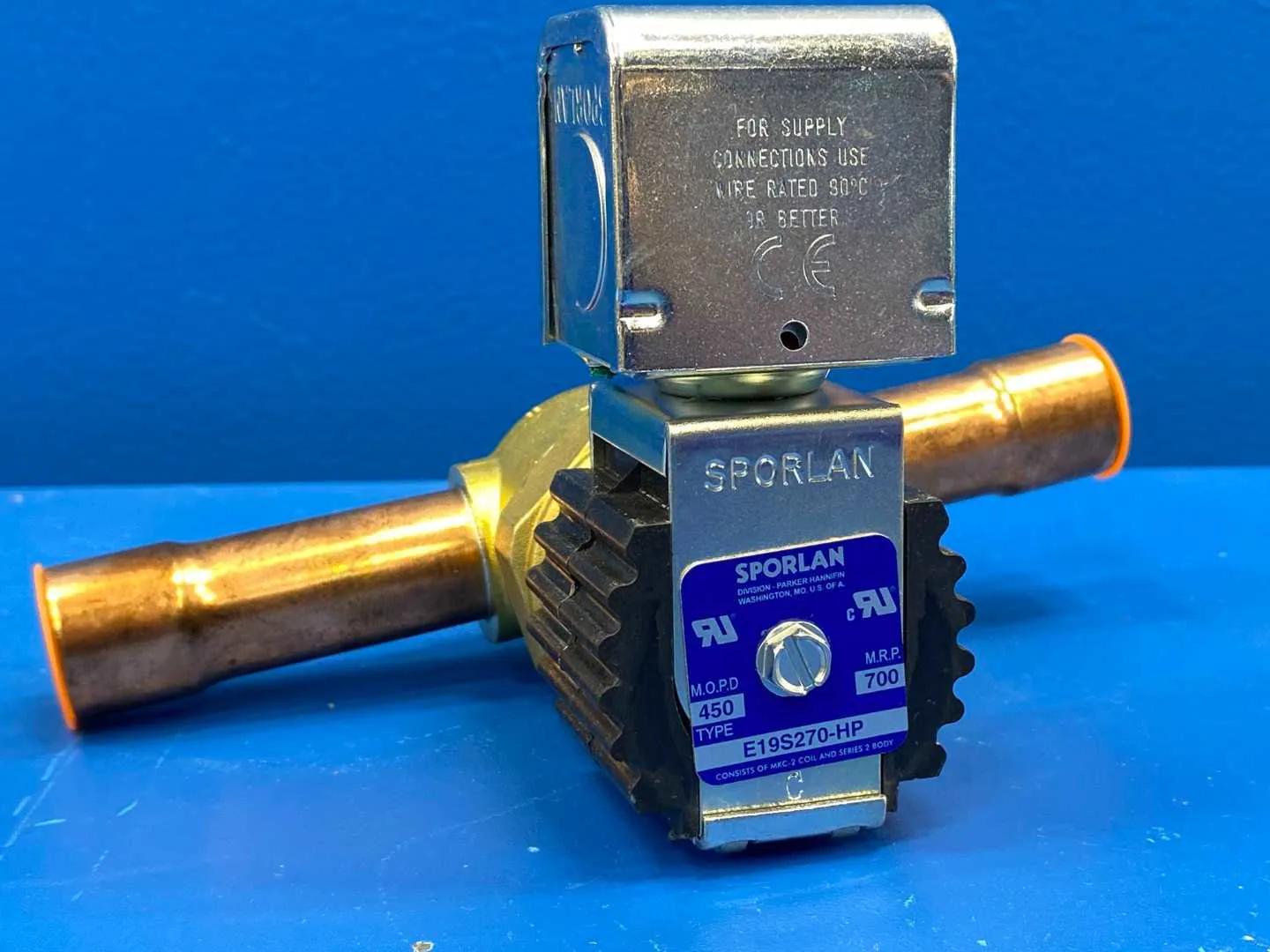

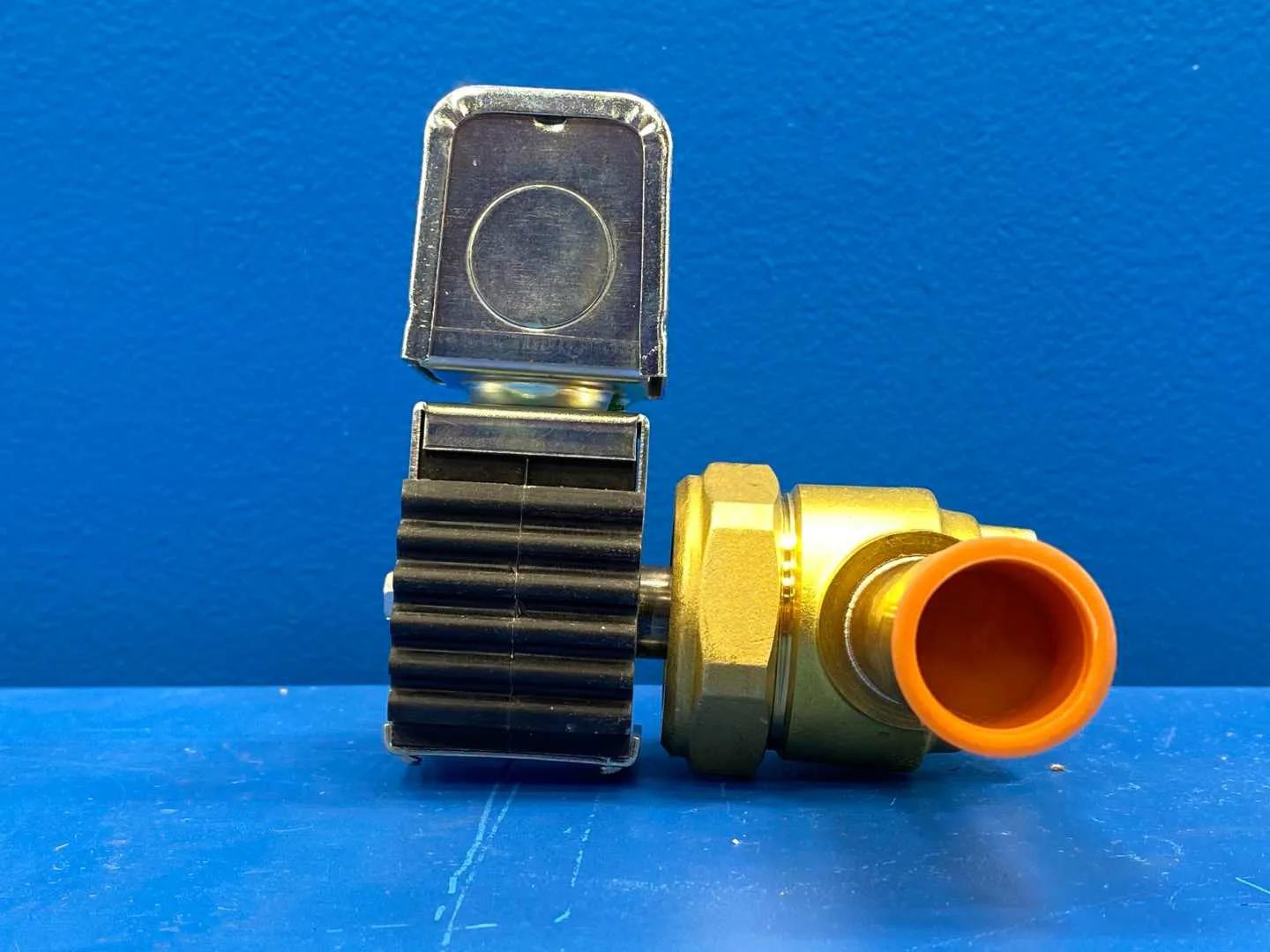

Sporlan Liquid Line Solenoid Valve 7/8" ODF E19S270-HP 24V R-410A w/ MKC-2 Coil

The Sporlan Refrigerant Solenoid Valve E19S270-HP is a crucial component in refrigeration and air conditioning systems. It is designed to control the flow of refrigerants, ensuring efficient operation of cooling and heating systems. Originally brought to market by Sporlan Valve Division, a renowned manufacturer in the HVAC industry, this solenoid valve features a robust design intended for durability and reliability in demanding applications. The E19S270-HP model is equipped with a MKC-2 coil, which provides optimal performance through precise control and electrical efficiency. This combination allows for quick response times and ensures that refrigeration circuits maintain the correct pressure levels. Its primary purpose is to manage the refrigerant flow based on the system's temperature requirements. Typically used in commercial and industrial refrigeration systems, this valve contributes significantly to energy efficiency and system performance. Key features of the E19S270-HP include: - Compatibility with various refrigerants, making it versatile for different applications. - A durable construction that withstands the operational demands of HVAC systems. - Enhanced electrical efficiency from the MKC-2 coil, providing reliable actuation for effective refrigerant management. Overall, the Sporlan Refrigerant Solenoid Valve E19S270-HP is an essential component in HVAC systems, contributing to their operational efficiency and reliability.

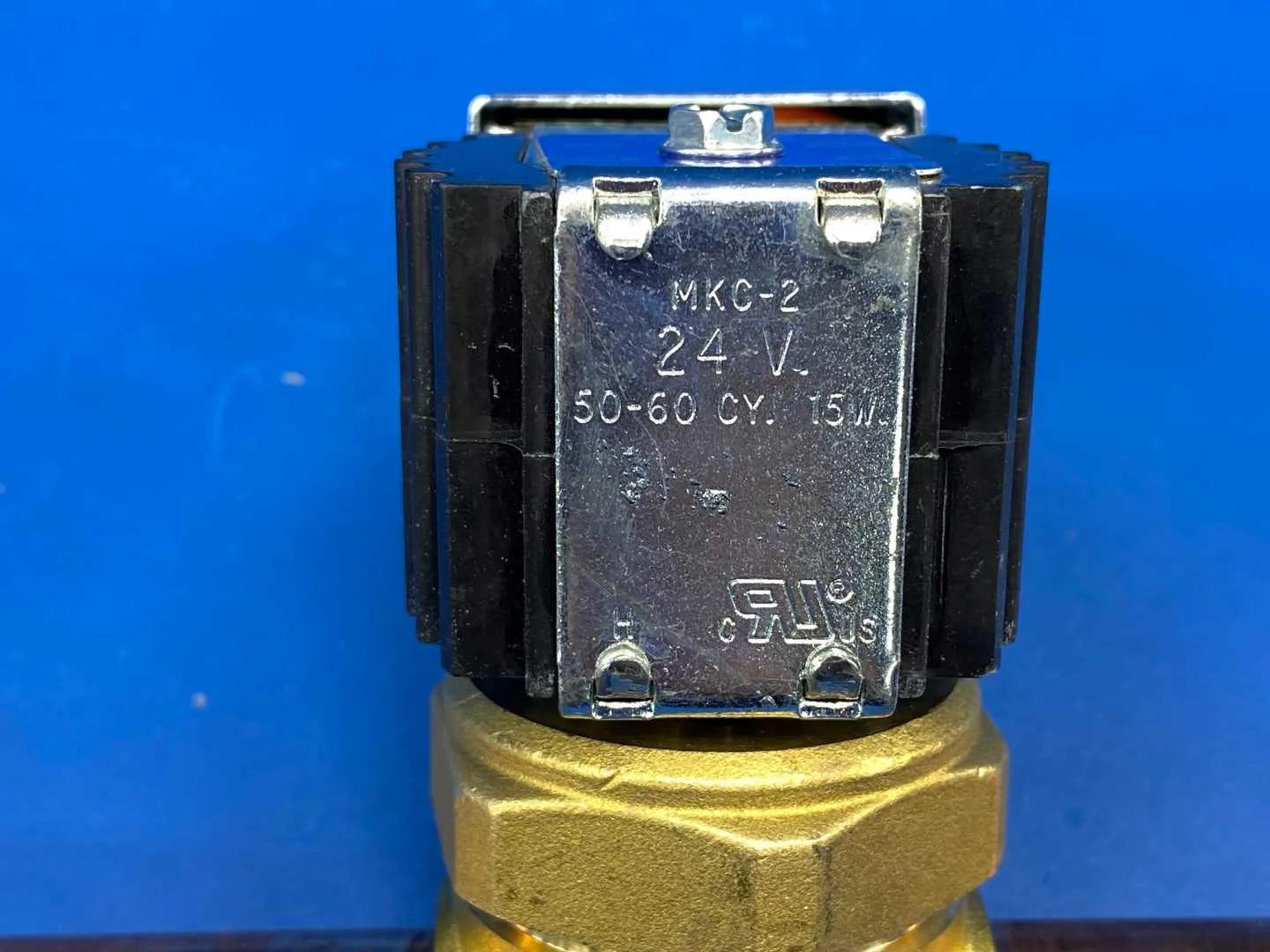

REFRIGERANT: R-410A capable. The "-HP" suffix means high pressure. Sporlan's high-pressure E series covers R-22, R-134a, R-401A, R-402A, R-404A, R-407C, R-407F, R-410A and R-507. The standard non-HP E series is capped at 500 psi (34.5 bar) maximum rated pressure and Sporlan does NOT list R-410A for it, so the -HP suffix is what makes this valve suitable for R-410A service. Manufacturer: Sporlan Division, Parker Hannifin Corporation, Washington, Missouri, USA Model: E19S270-HP Valve series: E19, high-pressure variant. This is the largest solenoid in this listing group. Type of operation: pilot operated. Requires only 1 psi (0.07 bar) pressure differential for full opening, so it is also suitable for suction line service. Normally closed: opens when the coil is energized, closes when de-energized Port size: 19/32 in (15.08 mm), the E19 series port size Connections: 7/8 in ODF solder inlet x 7/8 in ODF solder outlet, extended solder type. Can be brazed into the line without disassembly using low or no-silver brazing alloy. Coil: MKC-2, Class F temperature rating, 15 watts AC. Supplied on this unit at 24 V, 50/60 Hz. Because the MKC-2 is Class F, a separate high temperature coil is NOT required for discharge gas service. Body material: brass forging. Main port seating: stainless steel pin to synthetic seat, floating disc. Stem and plunger: stainless steel. Mounting: may be mounted horizontally, on its side, or in a vertical line MOPD AND MAXIMUM RATED PRESSURE: read them off the valve nameplate. Every Sporlan solenoid nameplate carries the valve type number, the MOPD and the maximum rated pressure. We are not publishing a figure we cannot source for this exact model. For scale, Parker rates the comparable E10S1-HP series at 450 psi (31 bar) MOPD and 700 psig (48 bar) maximum rated pressure. Do NOT assume this model shares those numbers. Sizing warning from Sporlan: do NOT size a solenoid valve by line size. Size on system capacity, refrigerant, fluid type, temperature and pressures. Capacity follows the 19/32 in port, not the 7/8 in connections. Model number decode: E for the extended-connection E series, 19 for the port size in thirty-seconds, S for solder connections, 2 for the MKC-2 coil size, 7 for the connection size in eighths of an inch (7/8 in), 0 for ODF x ODF. Related variants in this series: OE19S270 is the normally open version and requires an OMKC-2 coil. CE19S270 is the built-in check valve version for reverse gas defrost and heat pump service. Approvals: the Sporlan solenoid line is listed under UL File No. MH4576 and CSA File No. LR19953, and is CE approved. Installation note: Sporlan recommends a filter-drier ahead of every solenoid valve. Source: Parker Sporlan Bulletin 30-10, October 2022, pages 13, 17, 21, 22, 23, 25, 26 and 28. Parker Sporlan Bulletin 30-10-14, August 2015, for the E10S1-HP reference figures.
