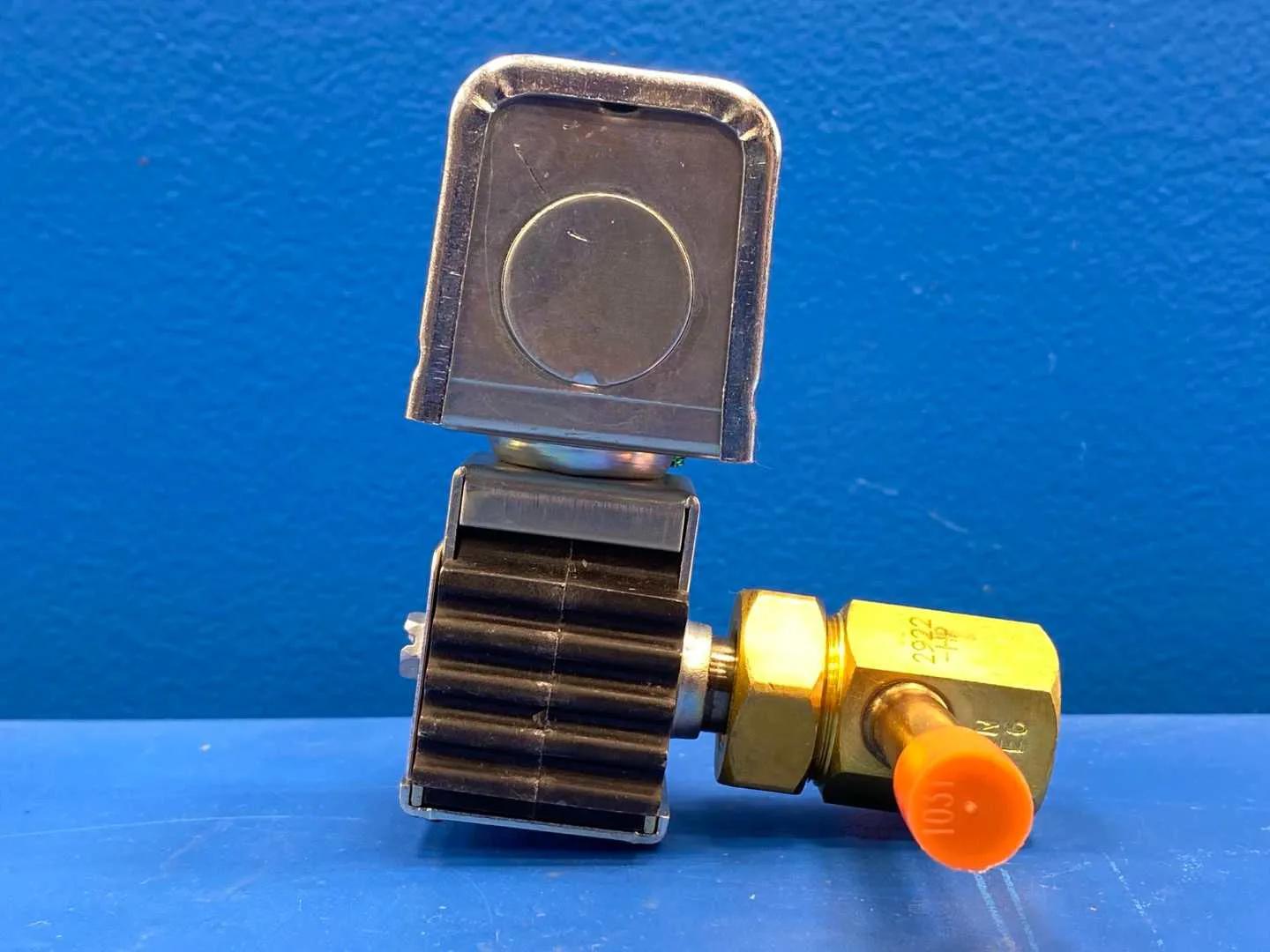

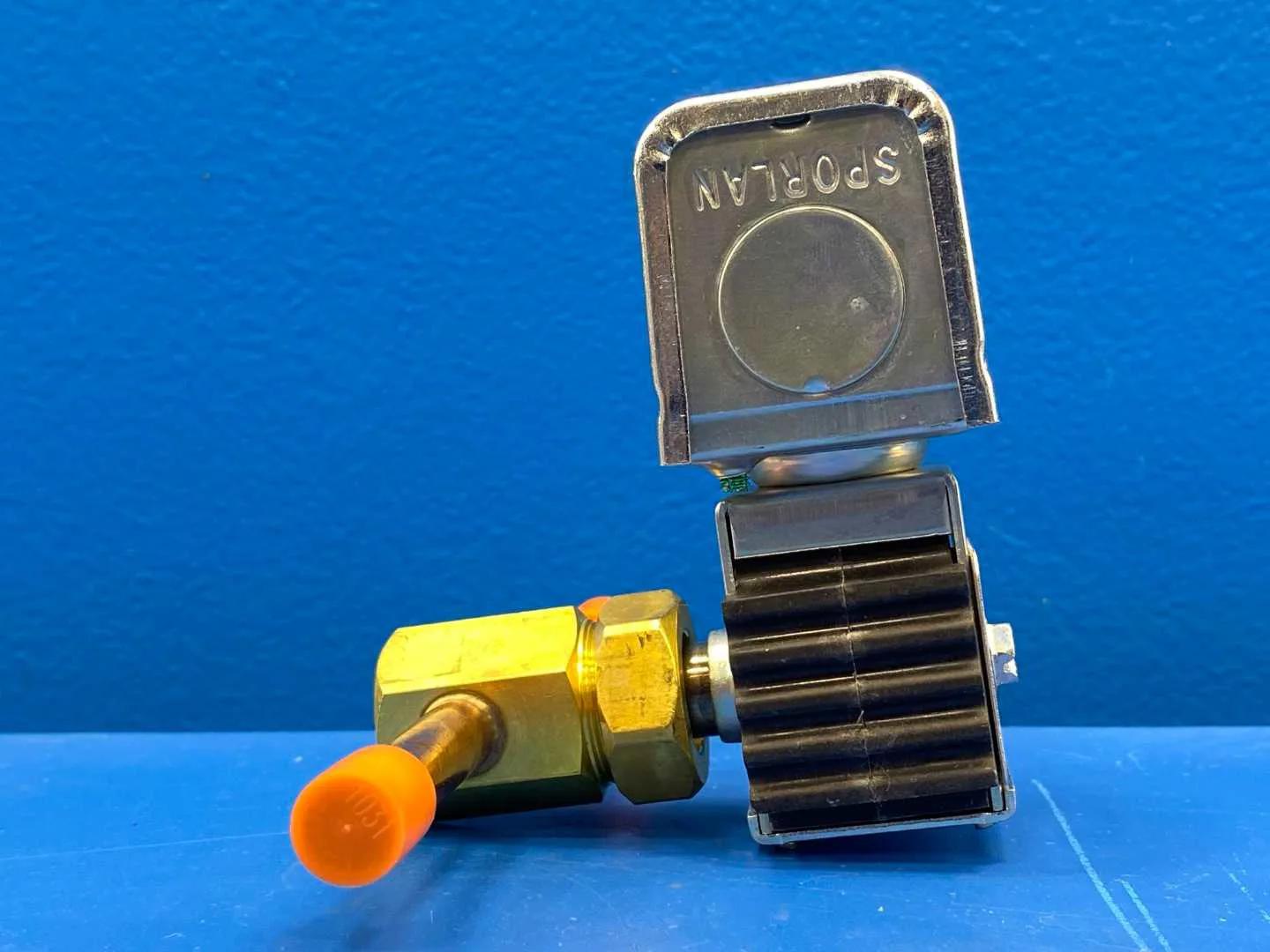

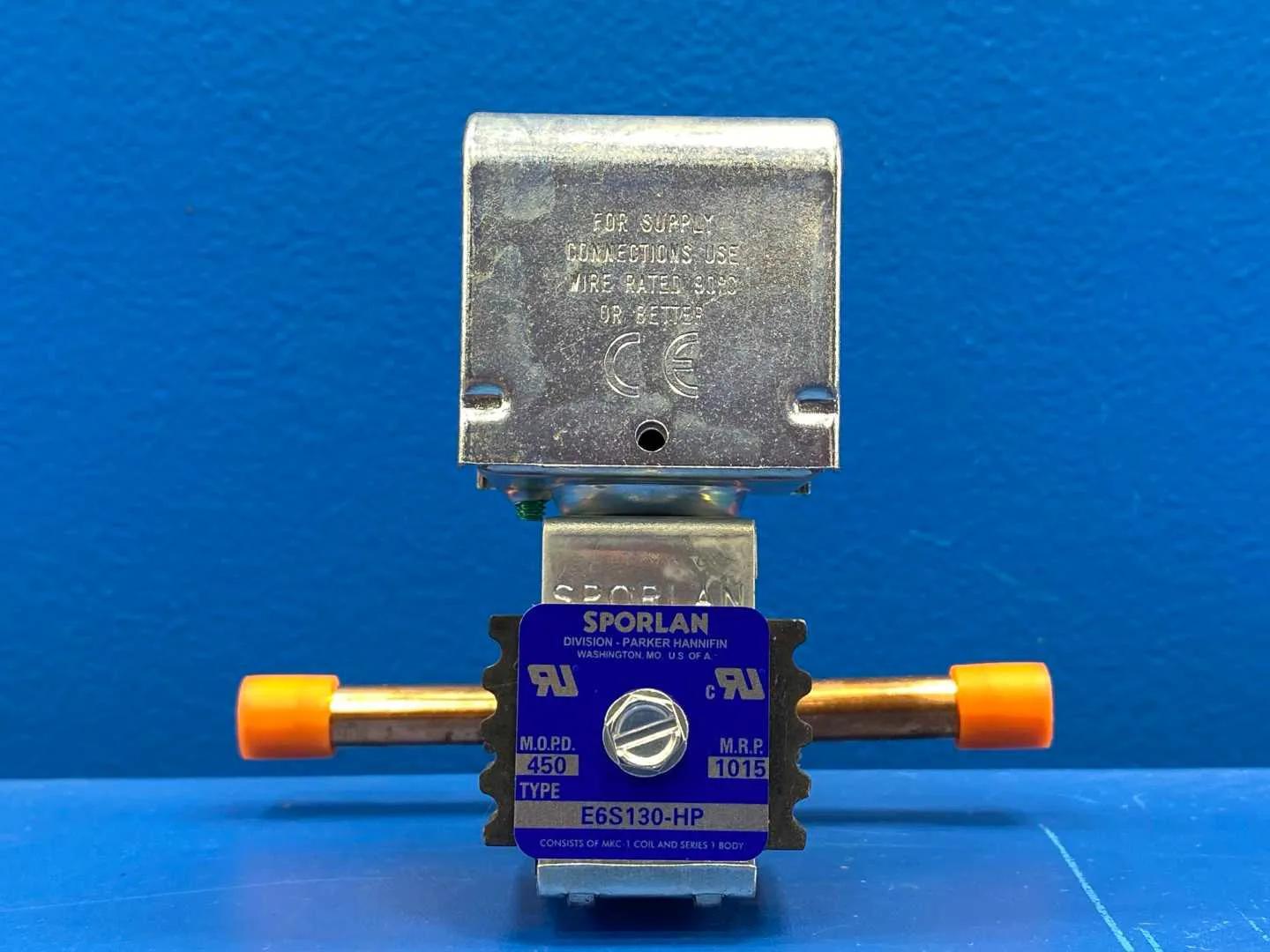

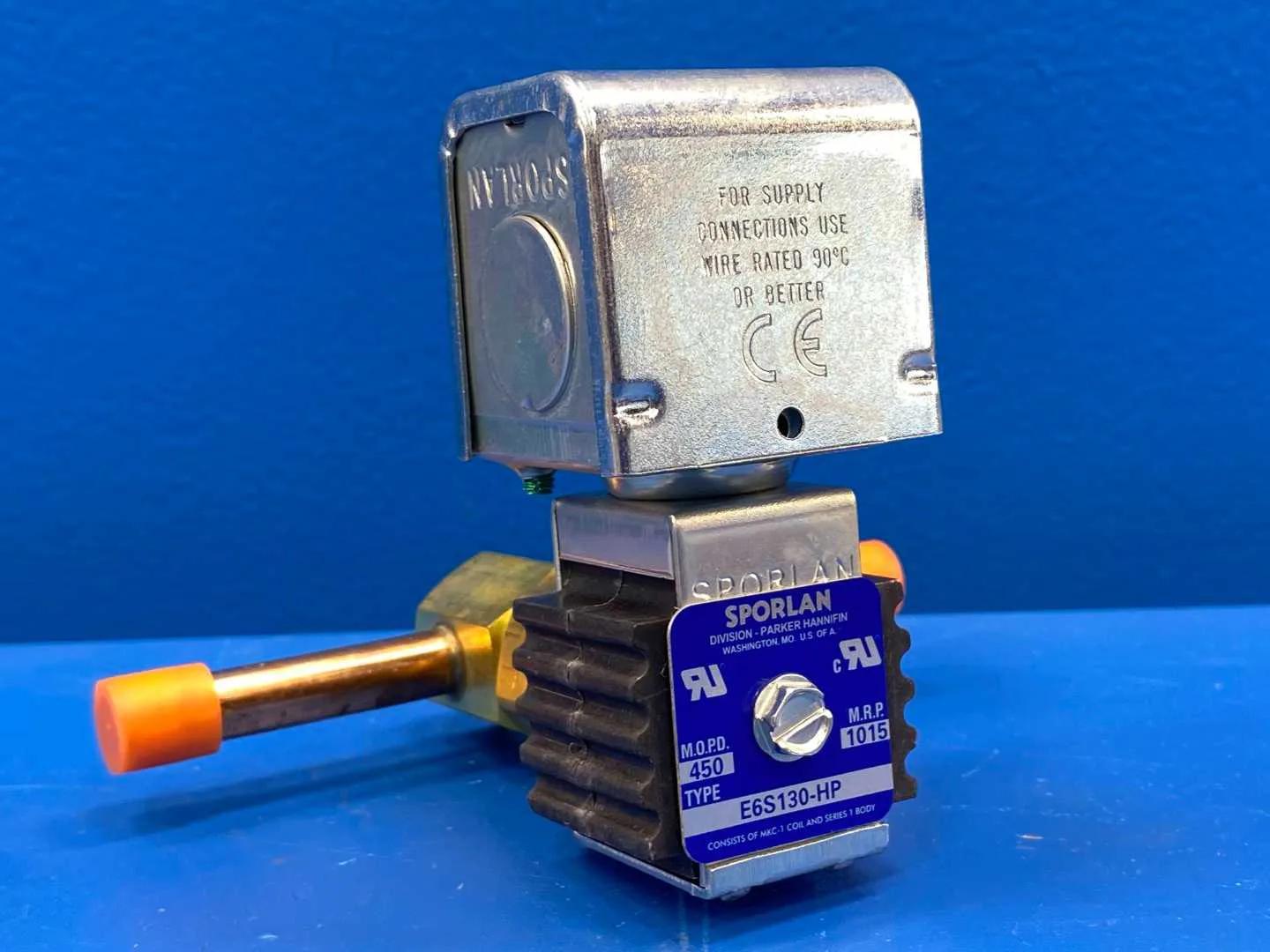

Sporlan Liquid Line Solenoid Valve 3/8" ODF E6S130-HP R-410A 24V w/ MKC-1 Coil

The Sporlan Solenoid Valve E6S130-HP is a precision-engineered component designed for use in HVAC and refrigeration systems. Sporlan Valve Division, a prominent name in the industry, has been providing innovative solutions for fluid control since its inception. This particular model operates on a voltage of 24V and is compatible with systems running at 60Hz frequency. It features a solder connection with a diameter of 3/8” ODF, making it versatile for various installation requirements. The primary purpose of the E6S130-HP is to facilitate the efficient flow of refrigerants within heat pumps and air conditioning systems. As a solenoid valve, it plays a crucial role in regulating the flow based on electrical control signals, ensuring optimal performance and energy efficiency. The E6S130-HP is designed for robust performance, with a pressure rating of up to 1015 PSI. This makes it suitable for high-pressure applications, providing peace of mind in reliability and safety. One of the unique features of this valve is its high precision in flow regulation, which leads to improved energy efficiency and system reliability. This aids technicians in achieving desired temperature control and enhances the overall effectiveness of the HVAC or refrigeration system. In summary, the Sporlan Solenoid Valve E6S130-HP is a key component for professionals in the HVAC and refrigeration sectors, known for its dependability, efficiency, and cutting-edge design.

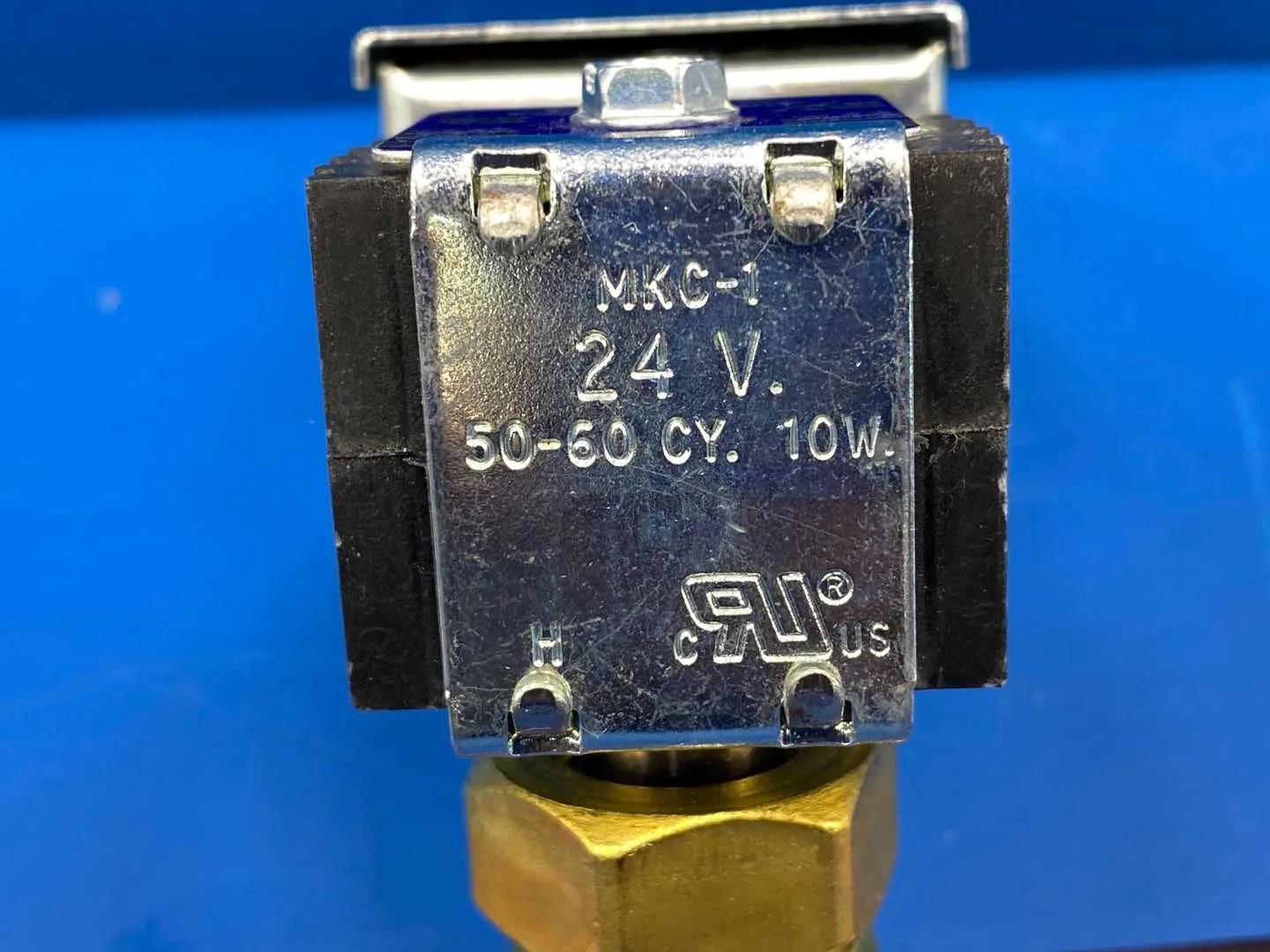

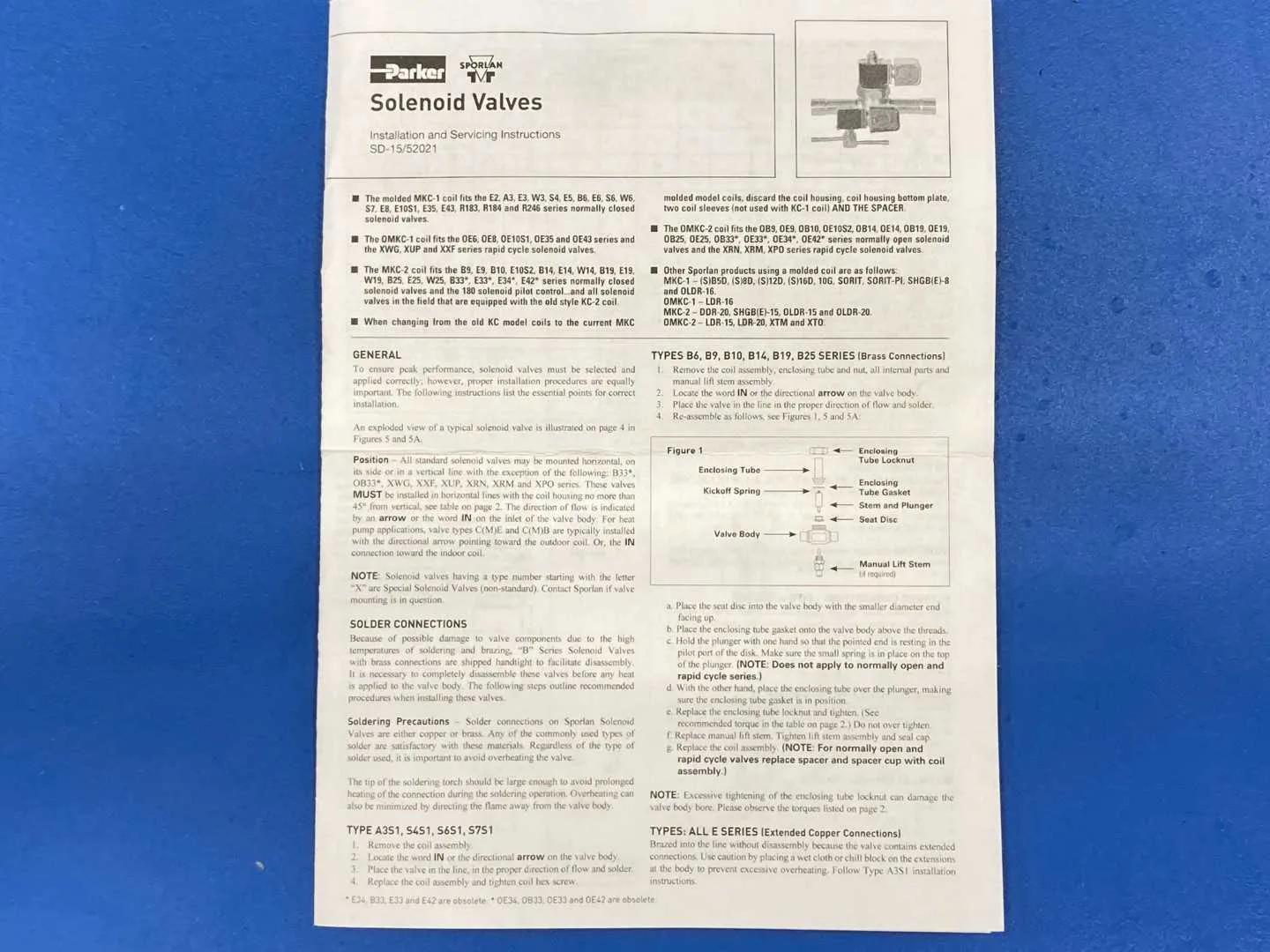

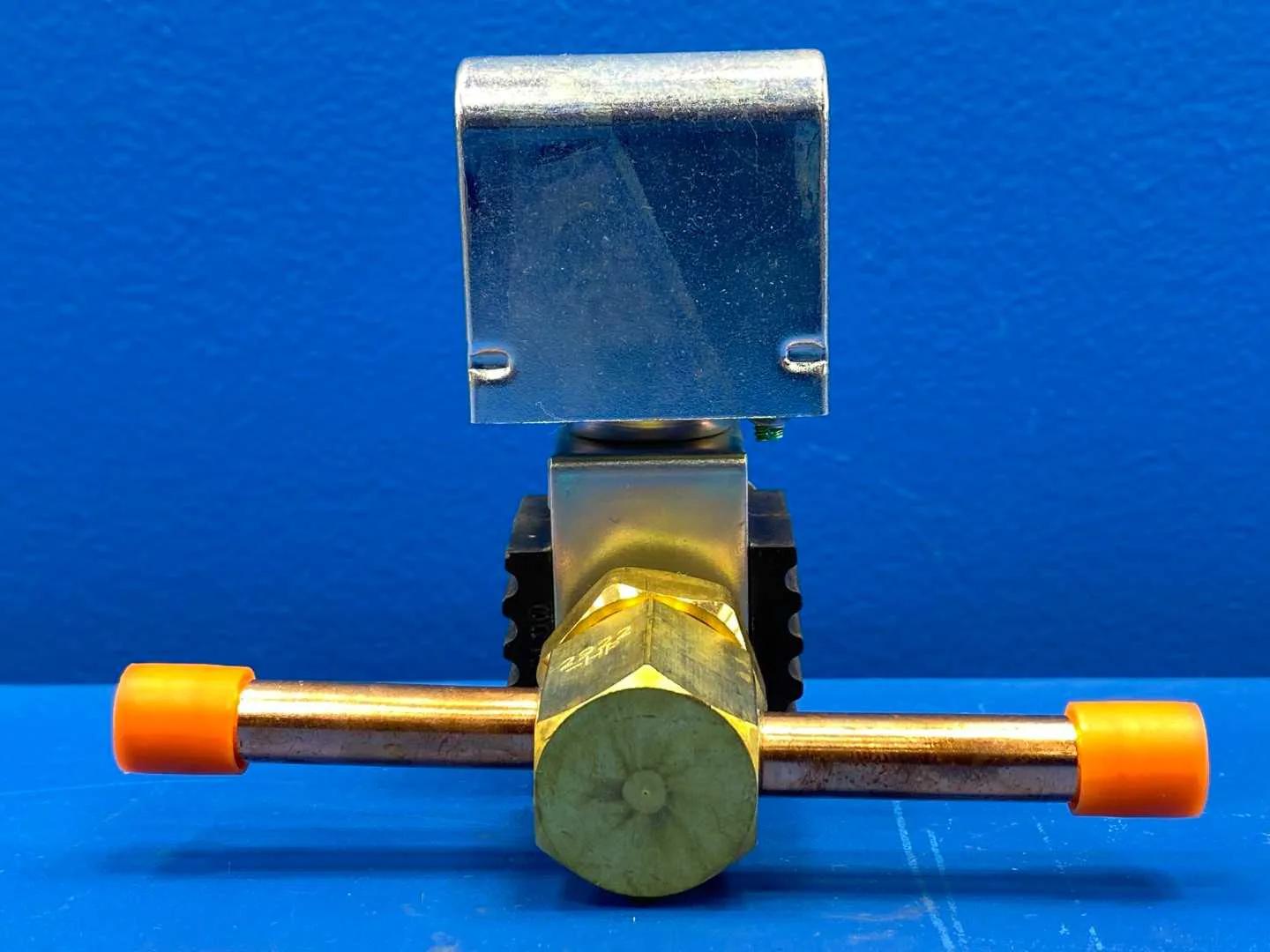

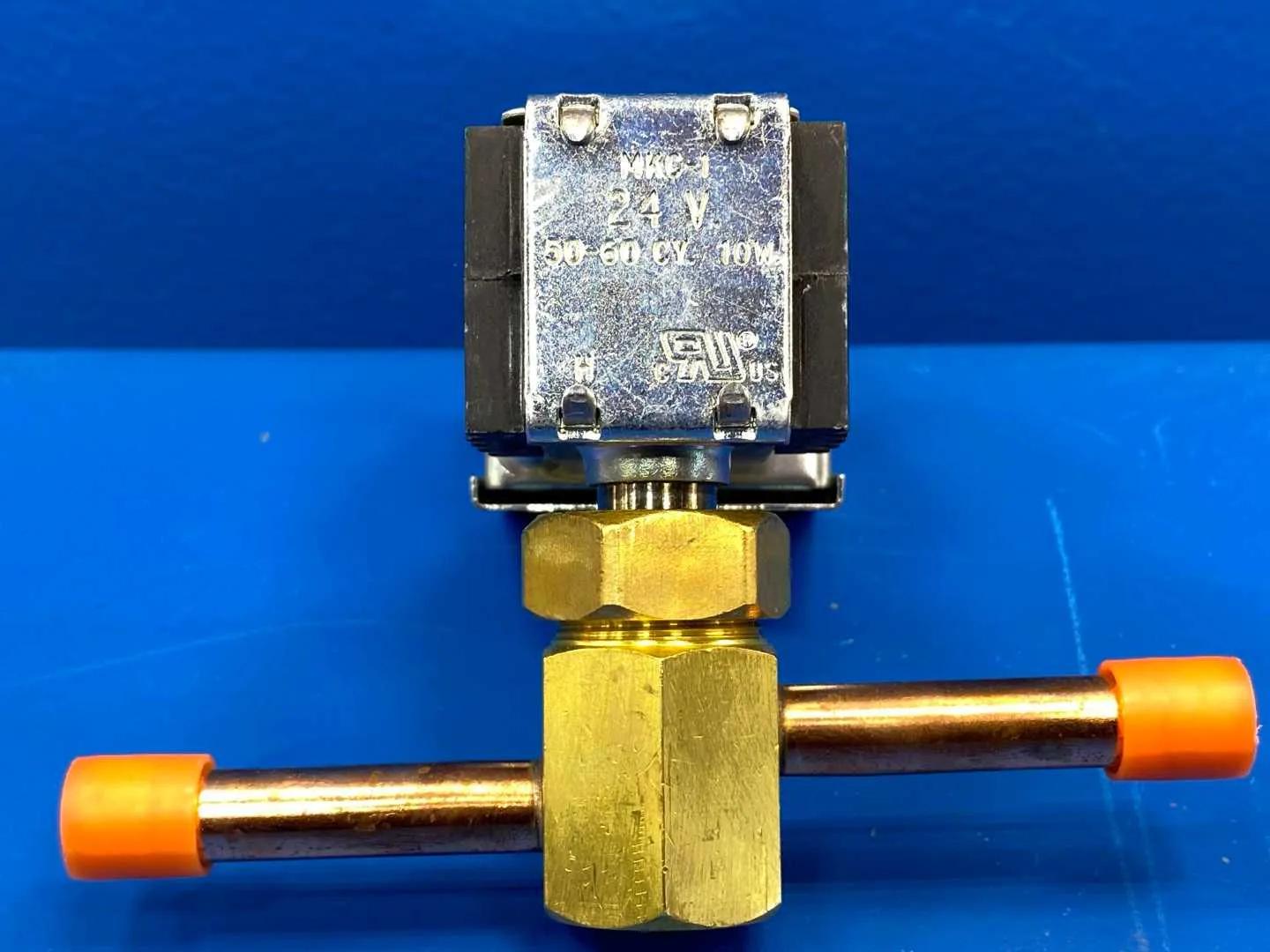

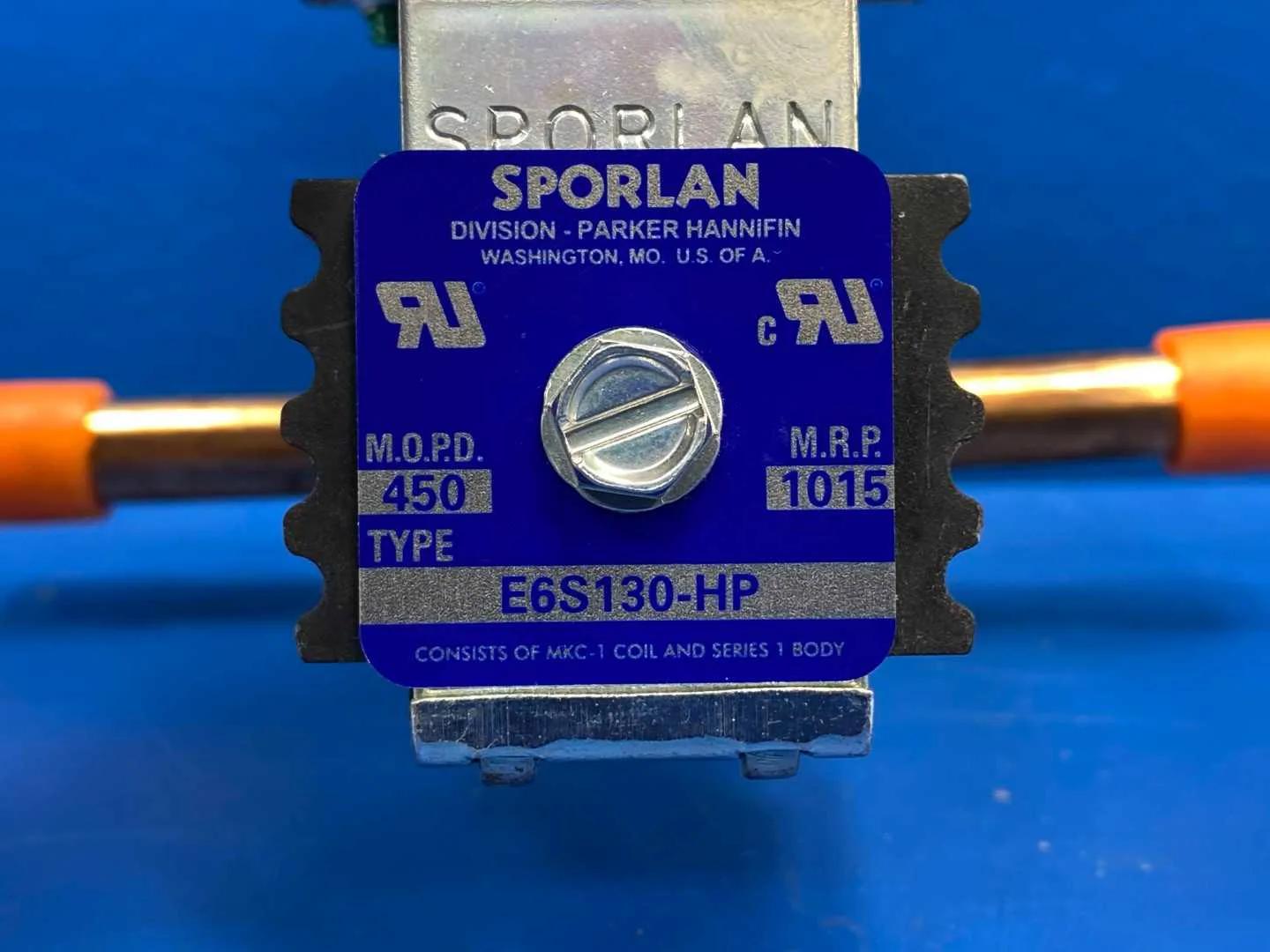

REFRIGERANT: R-410A capable. The "-HP" suffix means high pressure. Sporlan's high-pressure E series covers R-22, R-134a, R-401A, R-402A, R-404A, R-407C, R-407F, R-410A and R-507. The standard non-HP E series is capped at 500 psi (34.5 bar) maximum rated pressure and Sporlan does NOT list R-410A for it, so the -HP suffix is what makes this valve suitable for R-410A service. Manufacturer: Sporlan Division, Parker Hannifin Corporation, Washington, Missouri, USA Model: E6S130-HP Sporlan number: 3233-00 Valve series: E6, high-pressure variant Type of operation: pilot operated disc construction. Suitable for suction line service because only 1 psi (0.07 bar) pressure differential is required for full operation. Normally closed: opens when the coil is energized, closes when de-energized Port size: 3/16 in (4.76 mm), the E6 series port size Connections: 3/8 in ODF solder inlet x 3/8 in ODF solder outlet, extended copper solder type. Can be brazed into the line without disassembly using low or no-silver brazing alloy. Coil: MKC-1, Class F temperature rating, 10 watts AC. Supplied on this unit at 24 V, 50/60 Hz. The 24 V coil is identified by orange lead wires. Because the MKC-1 is Class F, a separate high temperature coil is NOT required for discharge gas service. NOMINAL LIQUID CAPACITIES for the E6 port, tons of refrigeration: R-22 at 3 psi (0.20 bar) differential: 4.9 tons (17.2 kW) R-401A at 2 psi (0.14 bar): 4.1 tons (14.4 kW) R-134a at 2 psi: 3.8 tons (13.4 kW) R-407C at 3 psi: 4.5 tons (15.8 kW) R-404A at 3 psi: 3.3 tons (11.6 kW) R-507 at 3 psi: 3.3 tons (11.6 kW) R-402A at 3 psi: 3.3 tons (11.6 kW) Full R-22 curve by differential: 2.9 tons at 1 psi, 4.0 at 2 psi, 4.9 at 3 psi, 5.7 at 4 psi, 6.4 at 5 psi Capacity basis: 40 F (4.4 C) evaporating and 100 F (37.8 C) liquid. For each 10 F reduction in evaporating temperature, capacities fall by roughly 1.5 percent. These are the published E6 port capacities; ask us if you need the R-410A figure confirmed against the high-pressure datasheet. Body material: brass forging. Seating: stainless steel pin to synthetic seat, floating disc. Stem and plunger: stainless steel. Mounting: may be mounted horizontally, on its side, or in a vertical line. E6 series with mounting holes are not standard. Manual lift stem: Sporlan offers a manual lift stem option on all valves from the E6 series upward, designated with an M prefix (ME6S130). MOPD AND MAXIMUM RATED PRESSURE: read them off the valve nameplate. Every Sporlan solenoid nameplate carries the valve type number, the MOPD and the maximum rated pressure. For scale, Parker rates the comparable E10S1-HP series at 450 psi (31 bar) MOPD and 700 psig (48 bar) maximum rated pressure. Do NOT assume this model shares those numbers. Sizing warning from Sporlan: do NOT size a solenoid valve by line size. Size on system capacity, refrigerant, fluid type, temperature and pressures. Model number decode: E for the extended-connection E series, 6 for the port size in thirty-seconds, S for solder connections, 1 for the MKC-1 coil size, 3 for the connection size in eighths of an inch (3/8 in), 0 for ODF x ODF. Approvals: the Sporlan solenoid line is listed under UL File No. MH4576 and CSA File No. LR19953, and is CE approved. Installation note: Sporlan recommends a filter-drier ahead of every solenoid valve. Source: Parker Sporlan Bulletin 30-10, October 2022, liquid capacity selection tables pages 4 and 5, Types B6 and E6 specifications page 9, general pages 21-22, construction details page 23, electrical specifications page 25, nomenclature page 26, application page 28. Parker Sporlan Bulletin 30-10-14, August 2015, for the high-pressure series refrigerant list and reference pressures.
