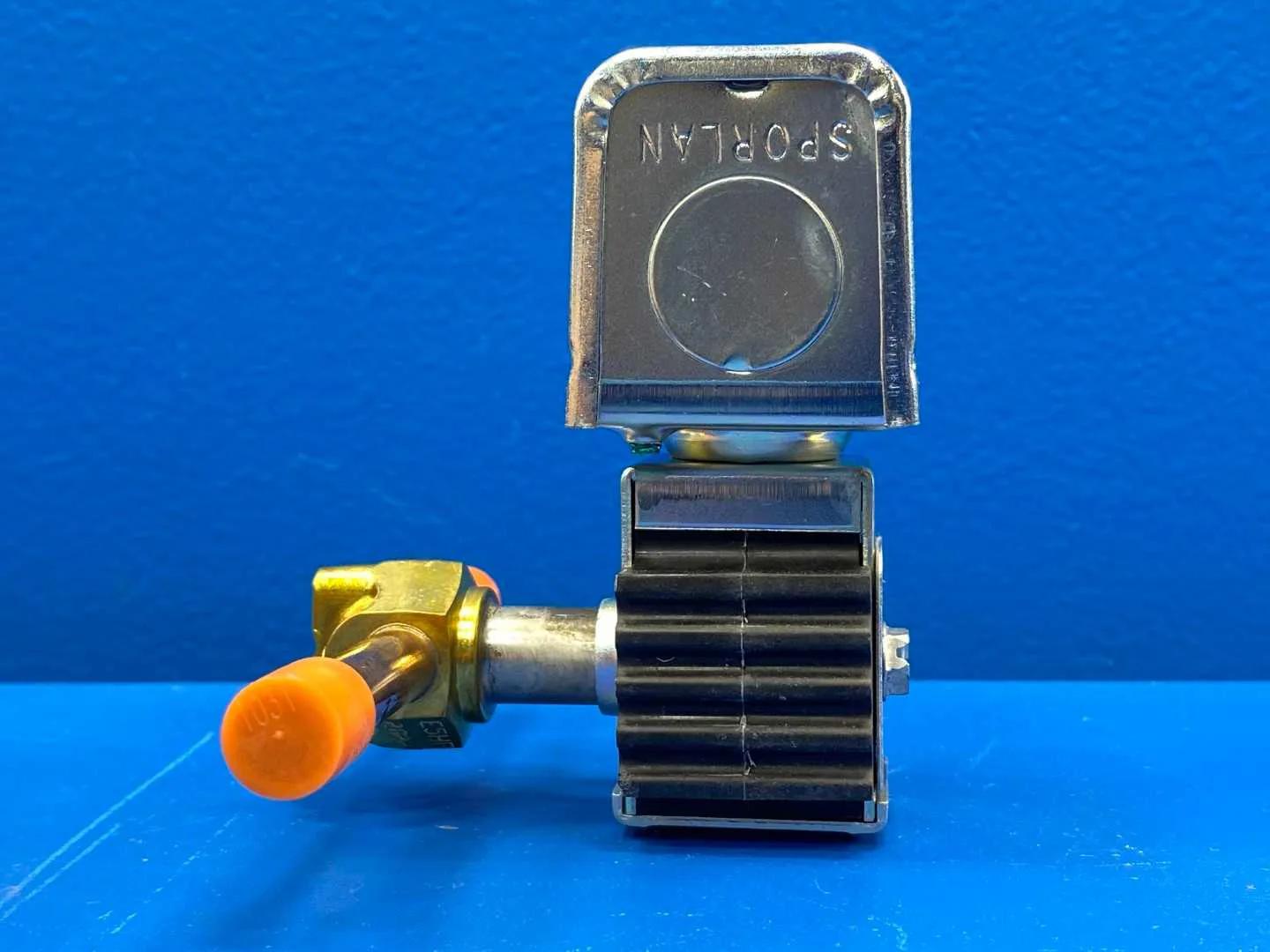

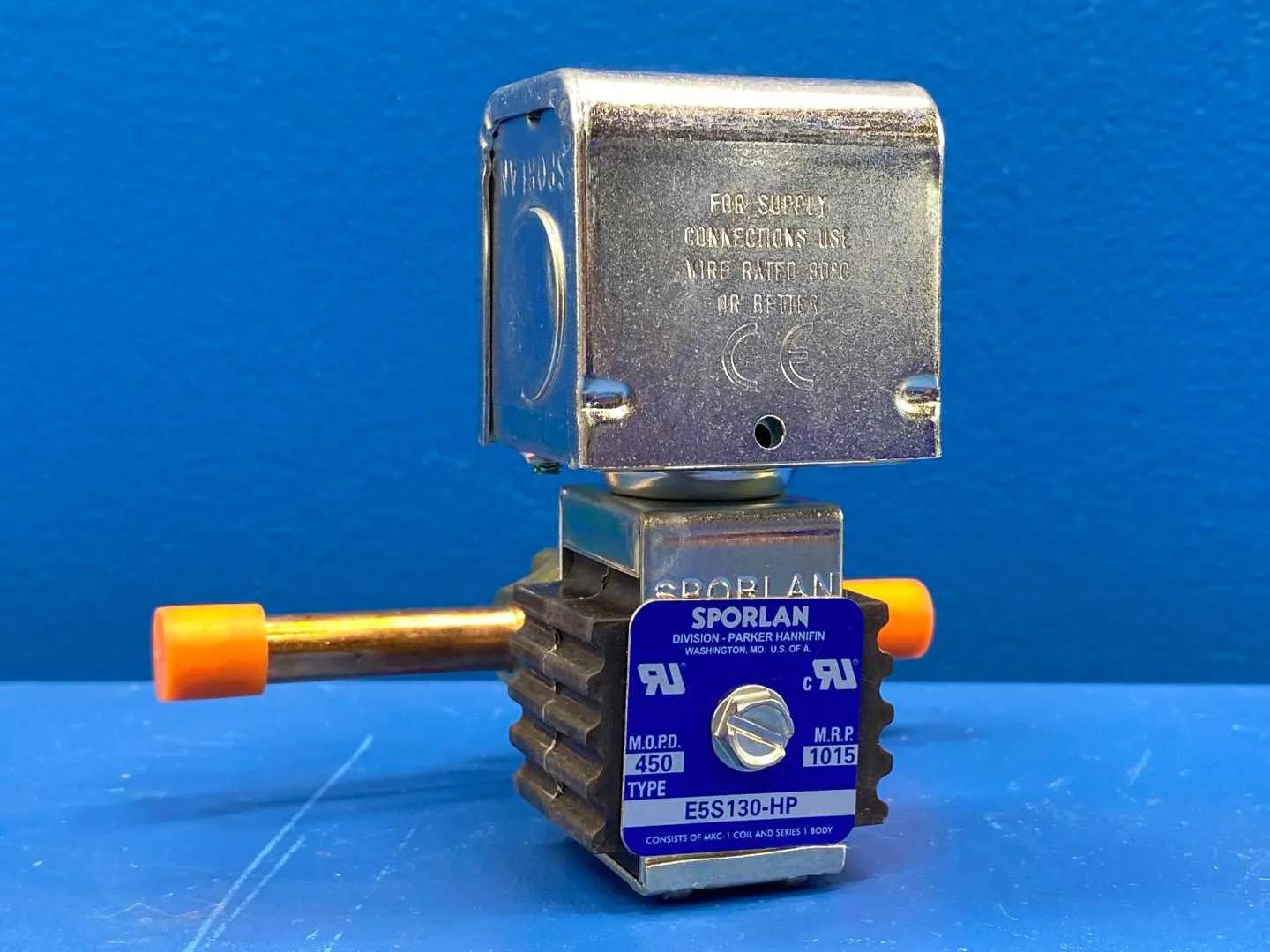

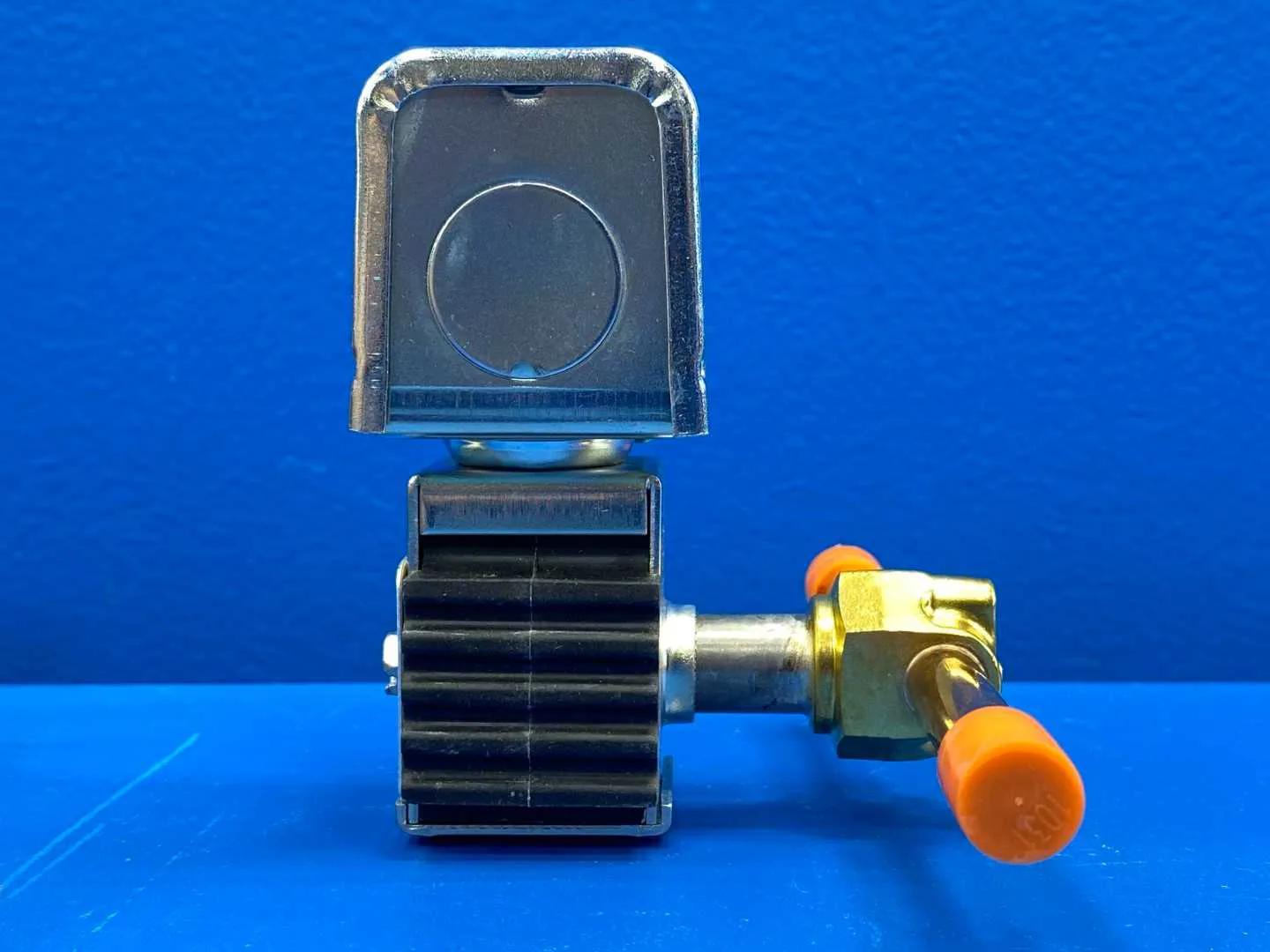

Sporlan Liquid Line Solenoid Valve 3/8" ODF E5S130-HP 24V w/ MKC-1 Coil

The Sporlan Solenoid Valve E5S130-HP is a high-performance valve specifically designed for use in refrigeration and air conditioning systems. Sporlan Valve Division, established in the early 20th century, has become a leader in the manufacture of components for the HVACR (Heating, Ventilation, Air Conditioning, and Refrigeration) industry. The E5S130-HP is part of a well-respected line of solenoid valves, recognized for their durability and efficiency. This particular model features a 3/8" ODF solder connection, making it suitable for various installation scenarios. The valve operates effectively with a coil voltage of 24 volts AC, and it is designed to function at frequencies of 50-60 Hz. The primary purpose of the E5S130-HP solenoid valve is to control the flow of refrigerant within the system. It provides precise control over the operational cycles of refrigeration and air conditioning units, contributing to energy efficiency and improved system performance. Unique features of this valve include its robust construction, which ensures reliability under harsh conditions commonly found in HVACR applications. Additionally, the design allows for easy installation and maintenance, making it a preferred choice among professionals in the industry.

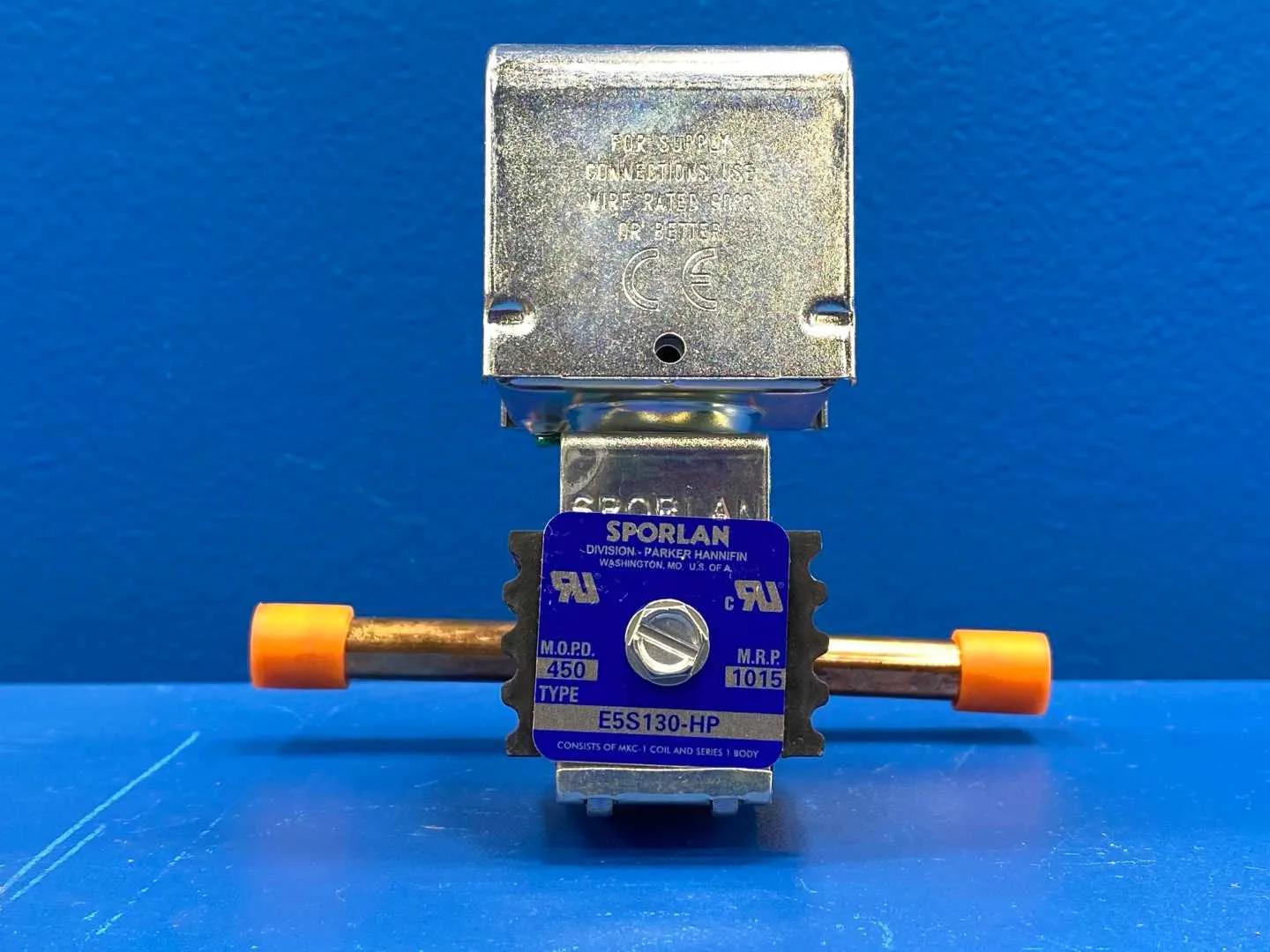

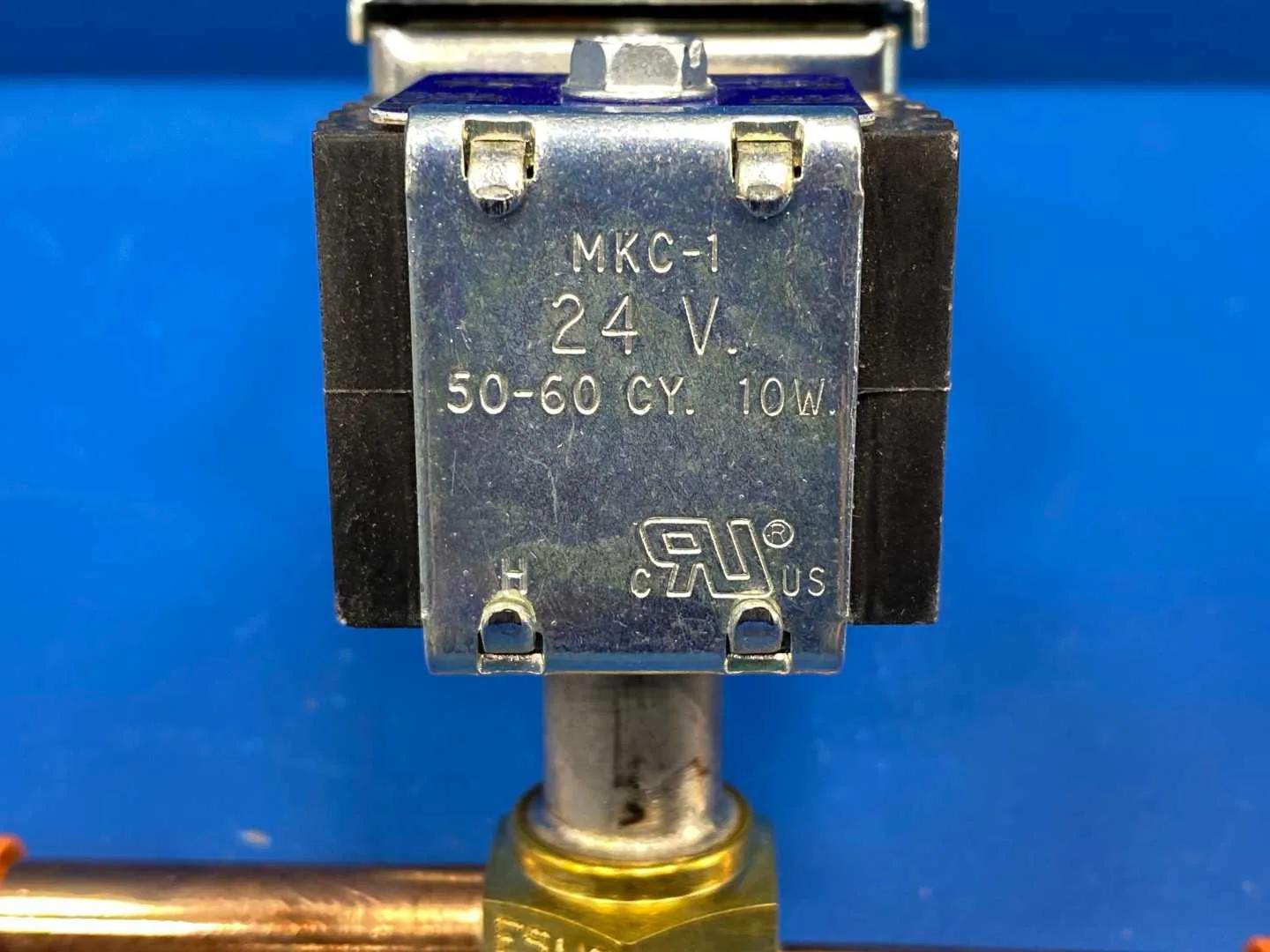

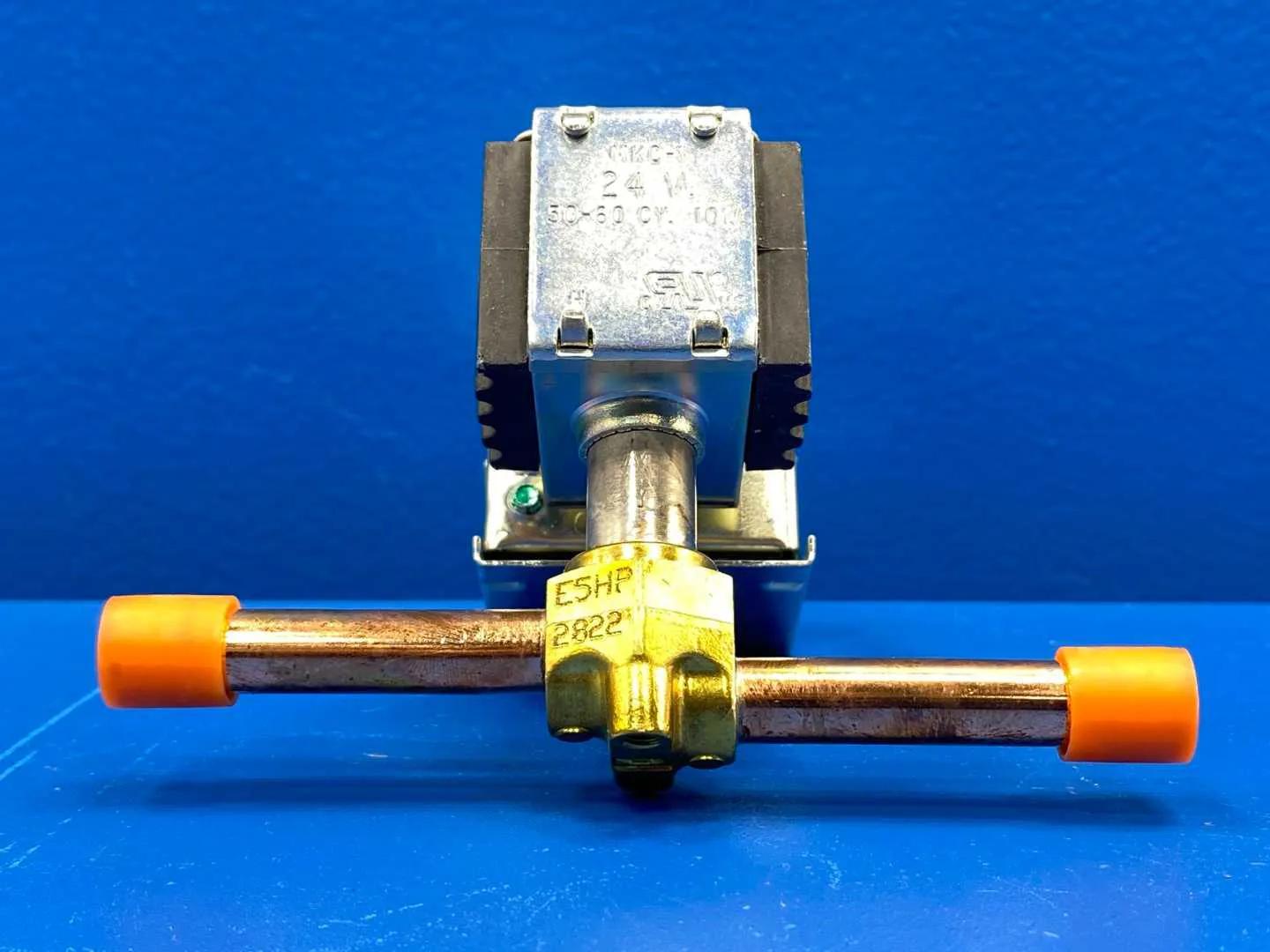

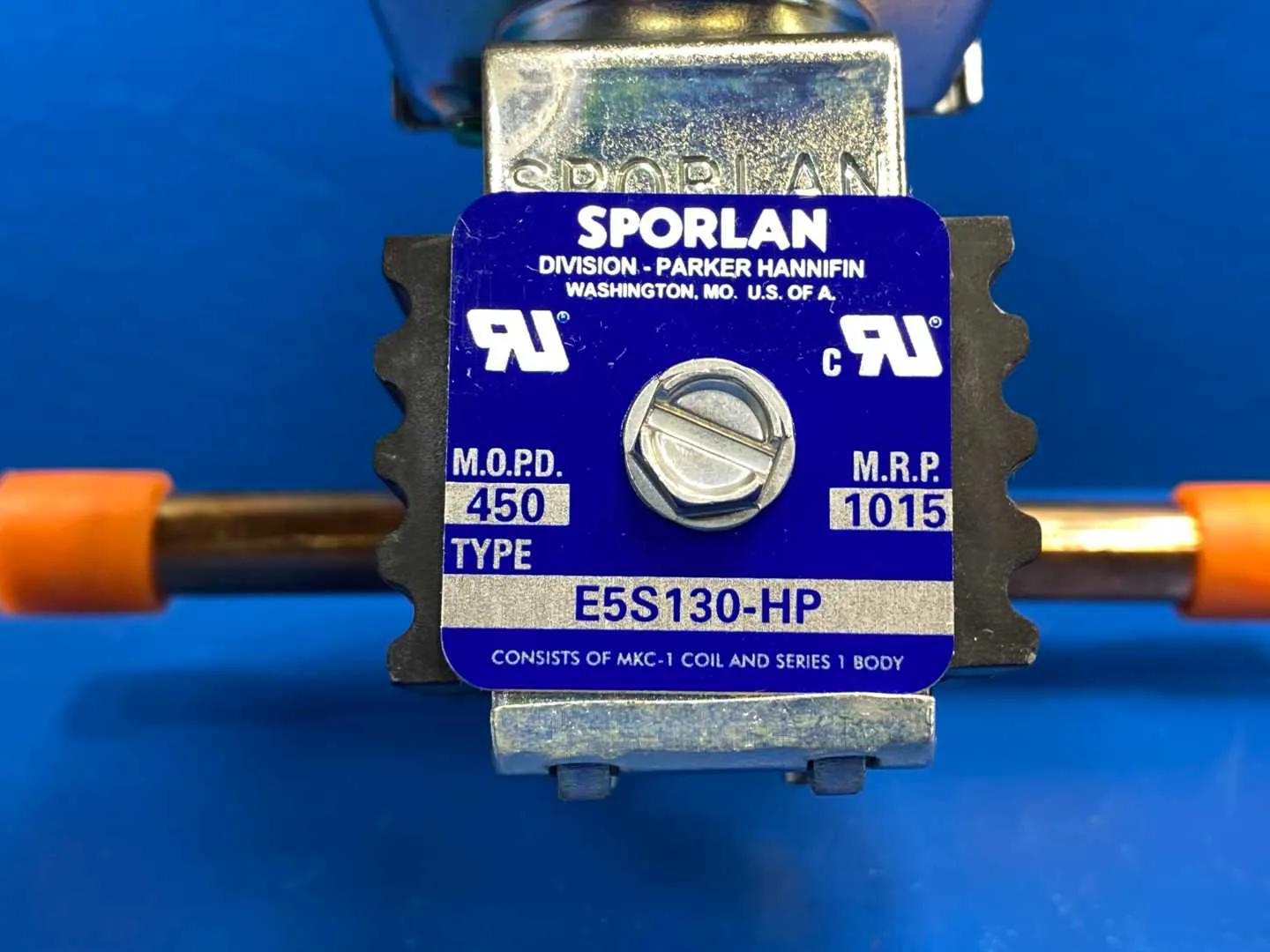

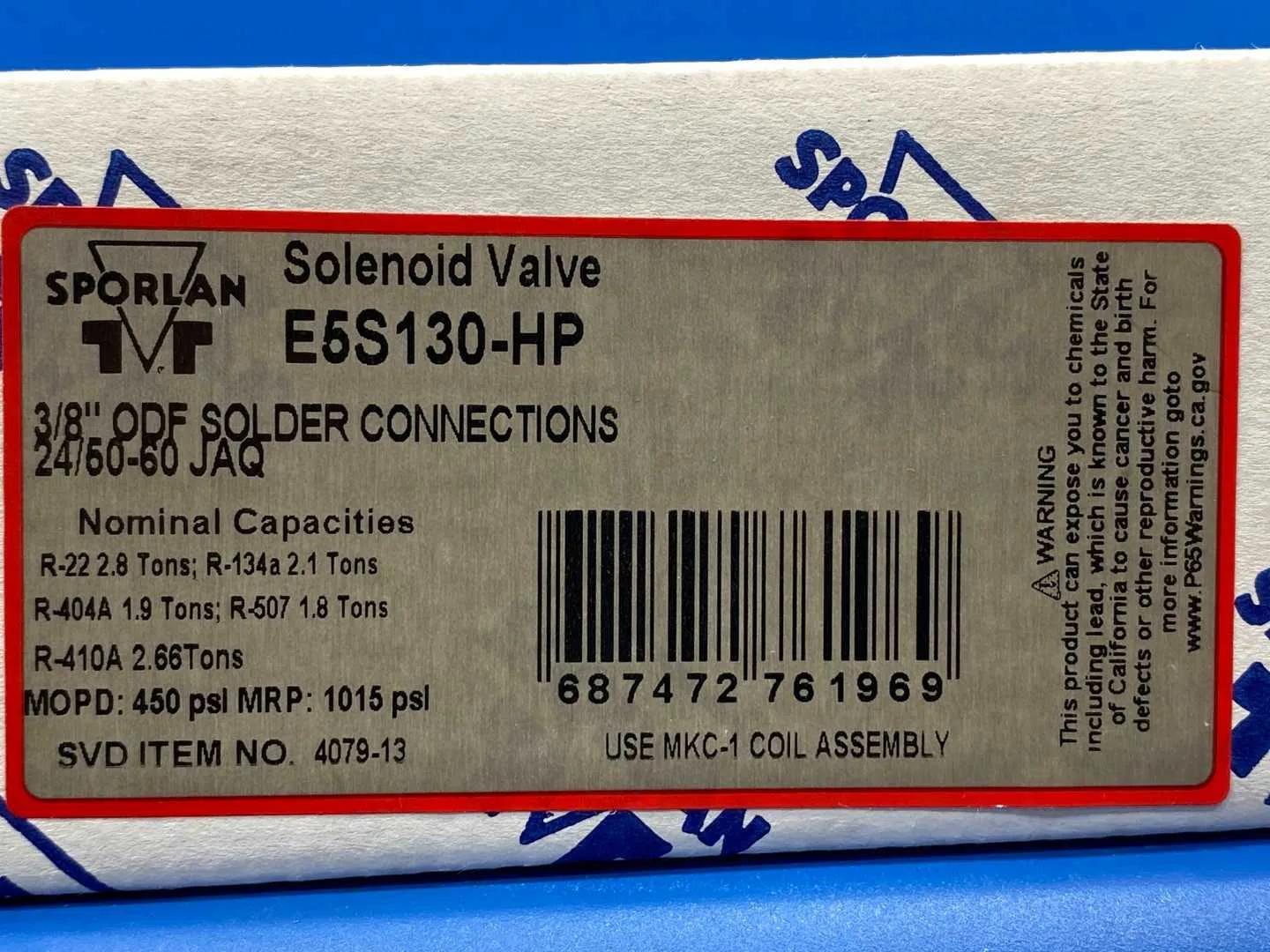

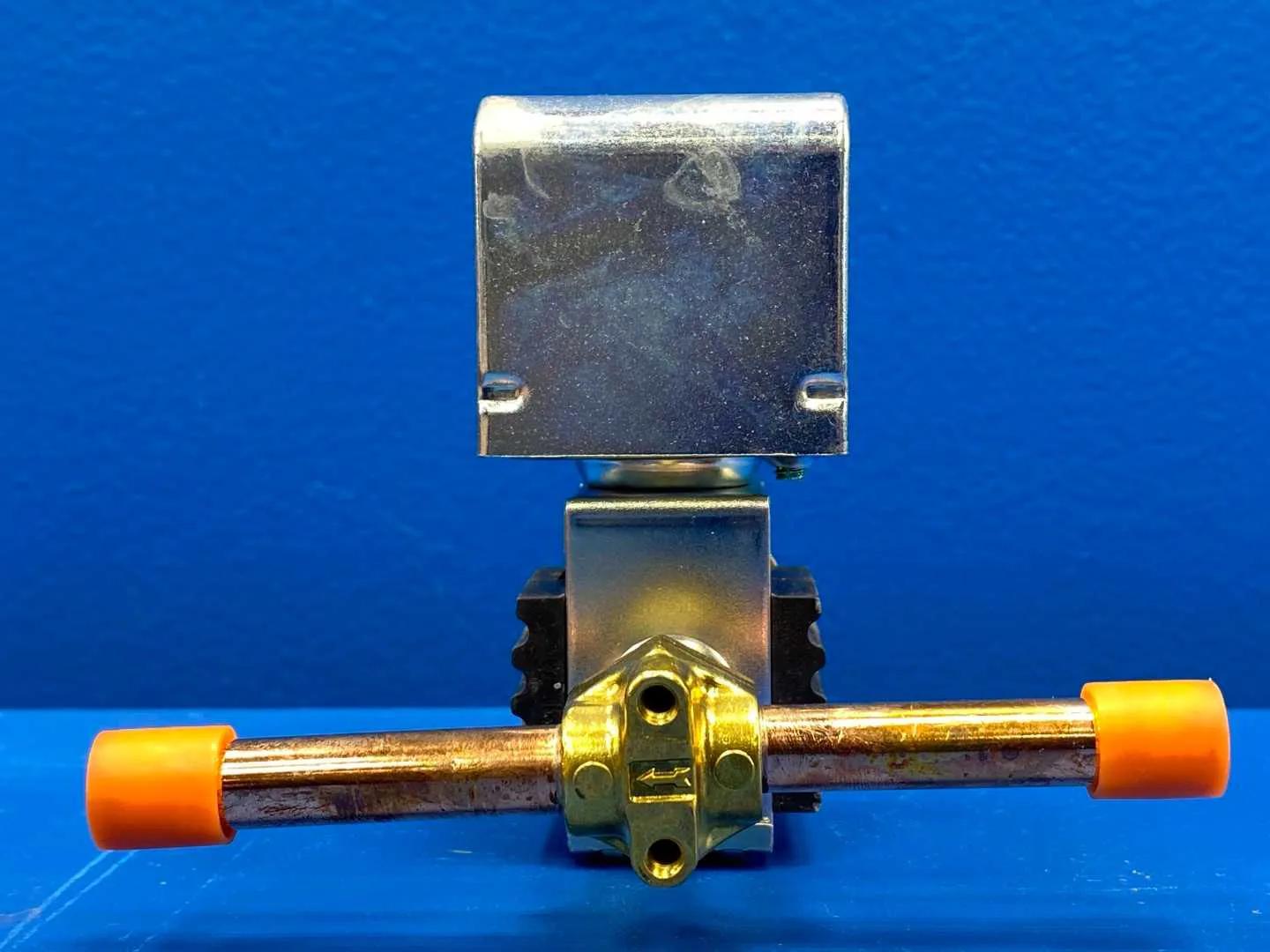

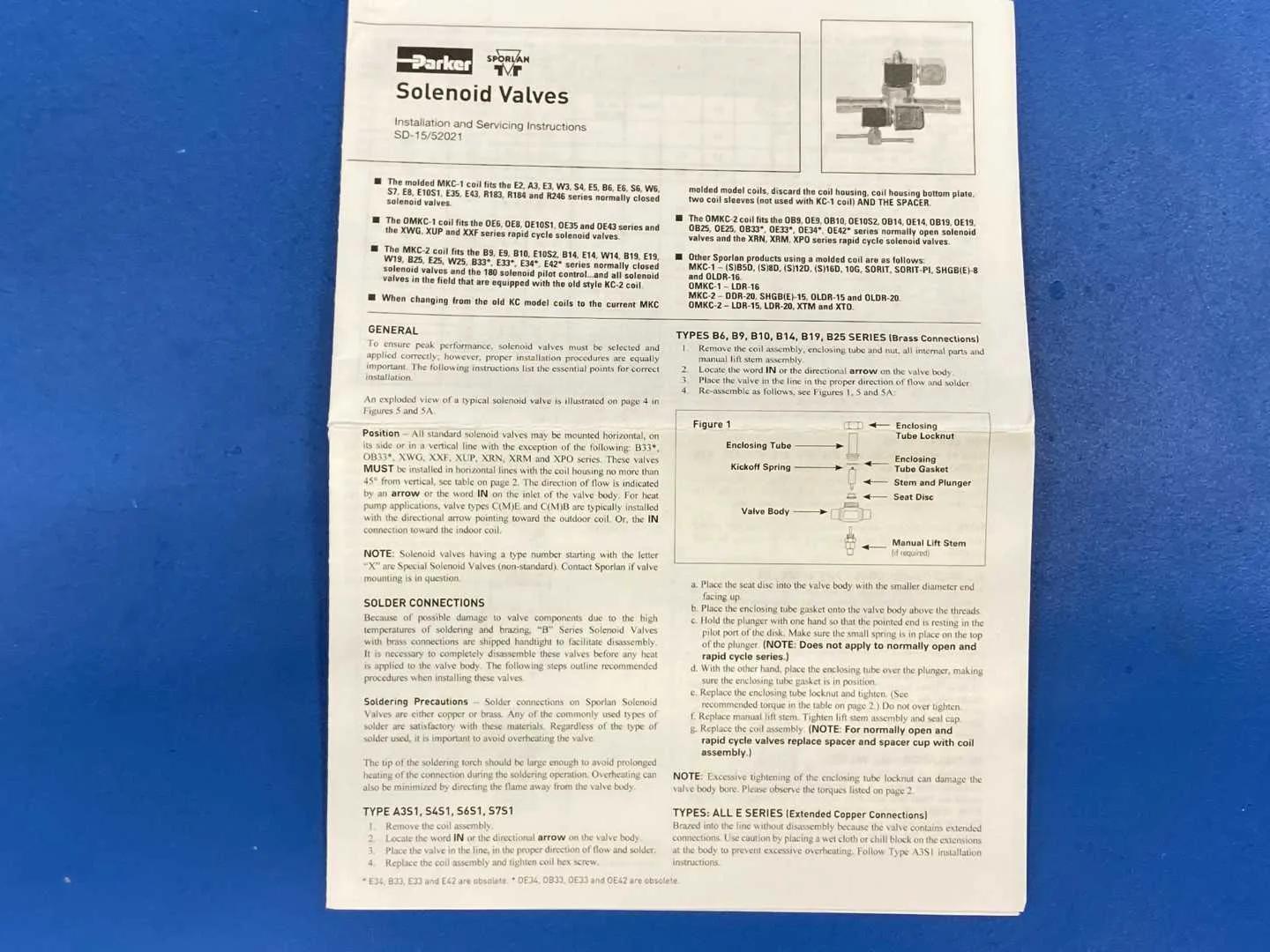

REFRIGERANT: R-410A capable. The "-HP" suffix means high pressure. Sporlan's high-pressure E series covers R-22, R-134a, R-401A, R-402A, R-404A, R-407C, R-407F, R-410A and R-507. The standard non-HP E series is capped at 500 psi (34.5 bar) maximum rated pressure and Sporlan does NOT list R-410A for it, so the -HP suffix is what makes this valve suitable for R-410A service. Manufacturer: Sporlan Division, Parker Hannifin Corporation, Washington, Missouri, USA Model: E5S130-HP Valve series: E5, high-pressure variant Type of operation: pilot operated disc construction. The E5 is a compact valve. Normally closed: opens when the coil is energized, closes when de-energized Port size: 0.150 in (3.81 mm), the E5 series port size Connections: 3/8 in ODF solder inlet x 3/8 in ODF solder outlet, extended solder type. Can be brazed into the line without disassembly using low or no-silver brazing alloy. Coil: MKC-1, Class F temperature rating, 10 watts AC. Supplied on this unit at 24 V, 50/60 Hz. The 24 V coil is identified by orange lead wires. Because the MKC-1 is Class F, a separate high temperature coil is NOT required for discharge gas service. Body material: brass. Seating: stainless steel pin to synthetic seat, floating disc. Stem and plunger: stainless steel. Mounting: may be mounted horizontally, on its side, or in a vertical line. E5 series with mounting holes are not standard. MOPD AND MAXIMUM RATED PRESSURE: read them off the valve nameplate. Every Sporlan solenoid nameplate carries the valve type number, the MOPD and the maximum rated pressure. We are not publishing a figure we cannot source for this exact model. For scale, Parker rates the comparable E10S1-HP series at 450 psi (31 bar) MOPD and 700 psig (48 bar) maximum rated pressure. Do NOT assume this model shares those numbers. For size context: in the standard series the E5 is rated 2.8 tons on R-22 at 3 psi pressure differential, against 1.6 tons for the smaller A3S1. High-pressure capacities differ from standard, so treat this as scale only. Sizing warning from Sporlan: do NOT size a solenoid valve by line size. Size on system capacity, refrigerant, fluid type, temperature and pressures. Model number decode: E for the extended-connection E series, 5 for the port size in thirty-seconds, S for solder connections, 1 for the MKC-1 coil size, 3 for the connection size in eighths of an inch (3/8 in), 0 for ODF x ODF. Approvals: the Sporlan solenoid line is listed under UL File No. MH4576 and CSA File No. LR19953, and is CE approved. Installation note: Sporlan recommends a filter-drier ahead of every solenoid valve. Source: Parker Sporlan Bulletin 30-10, October 2022, pages 4, 8, 21, 22, 23, 25, 26 and 28. Parker Sporlan Bulletin 30-10-14, August 2015, for the high-pressure series refrigerant list and reference pressures.
