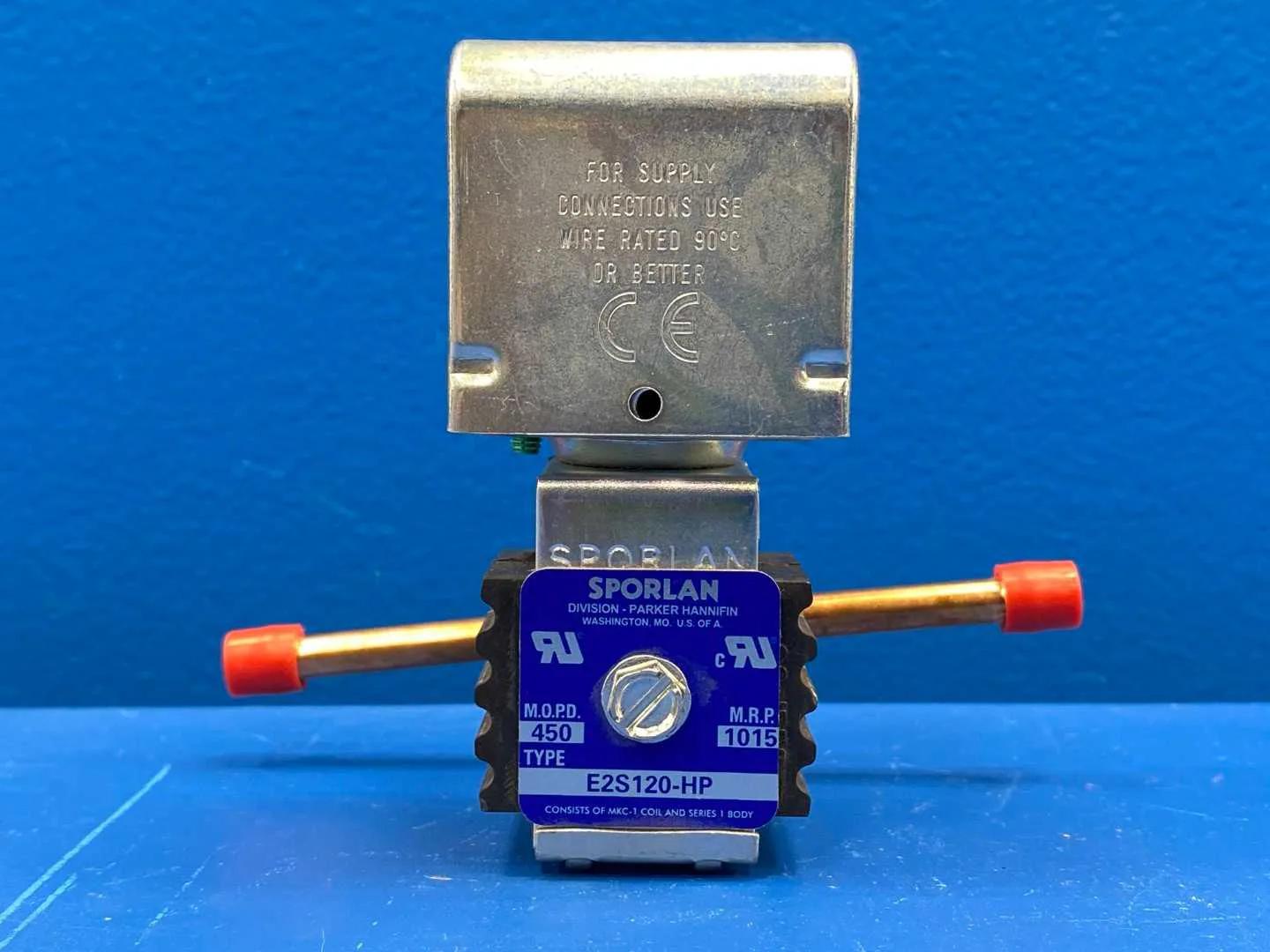

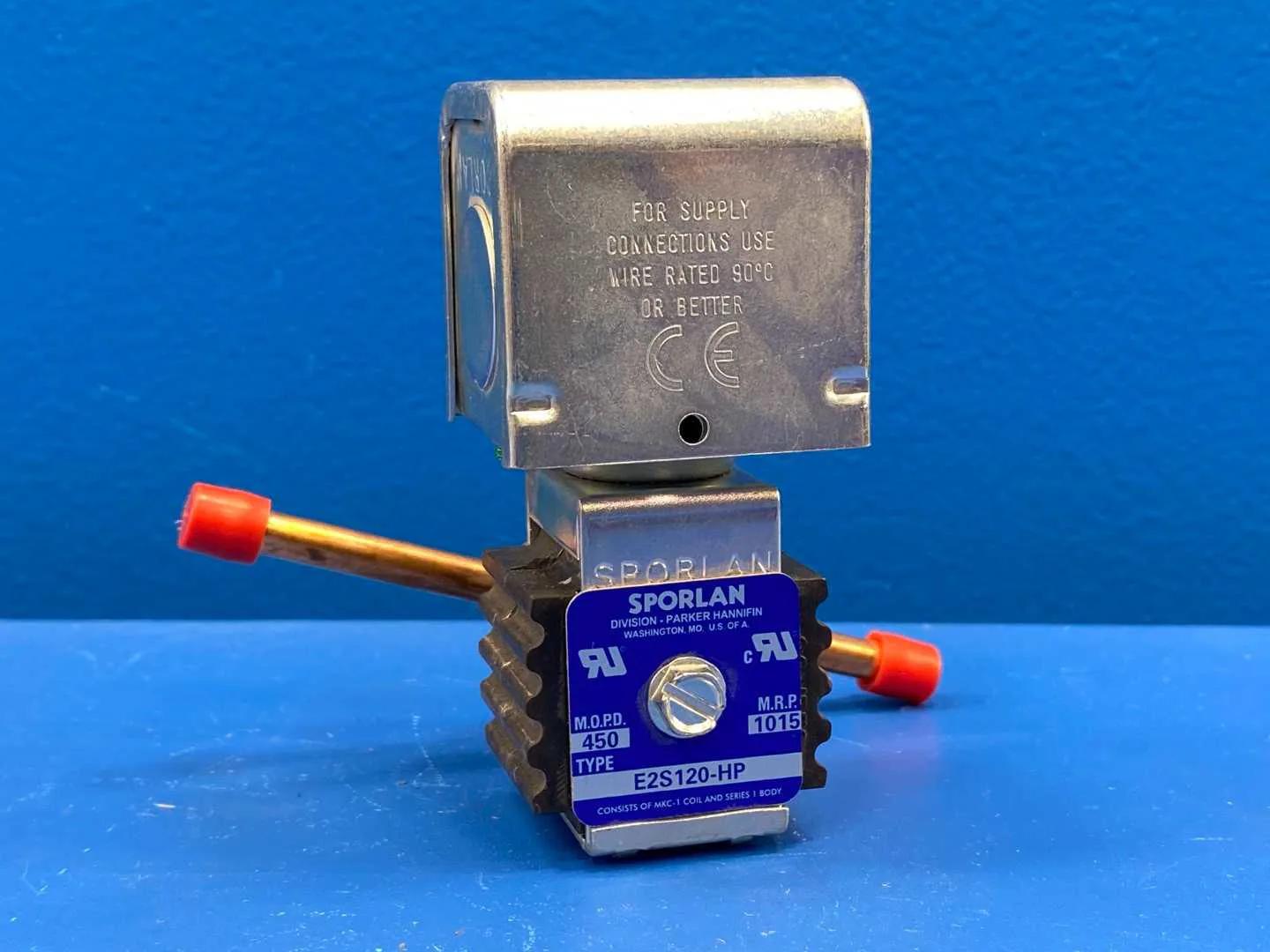

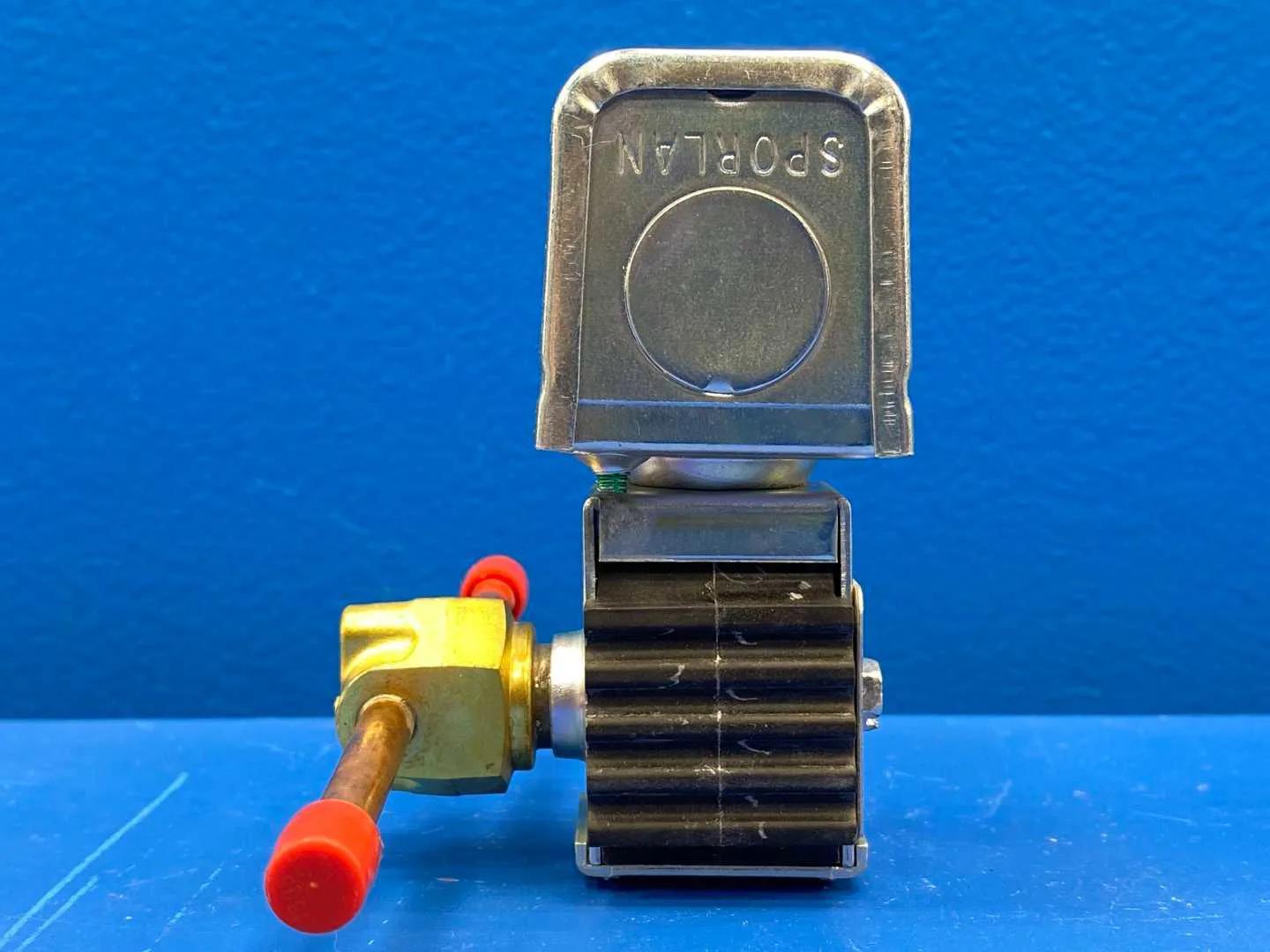

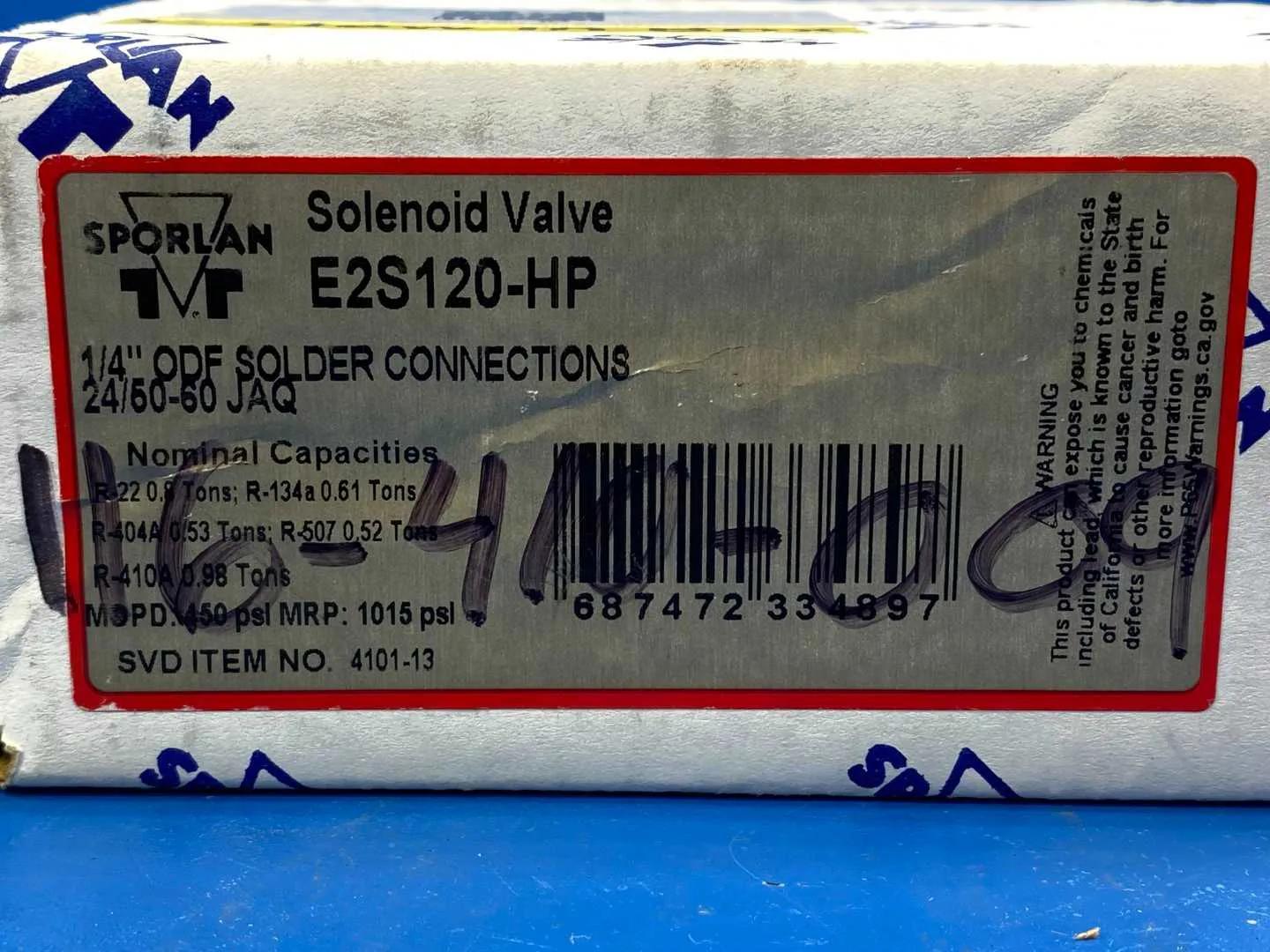

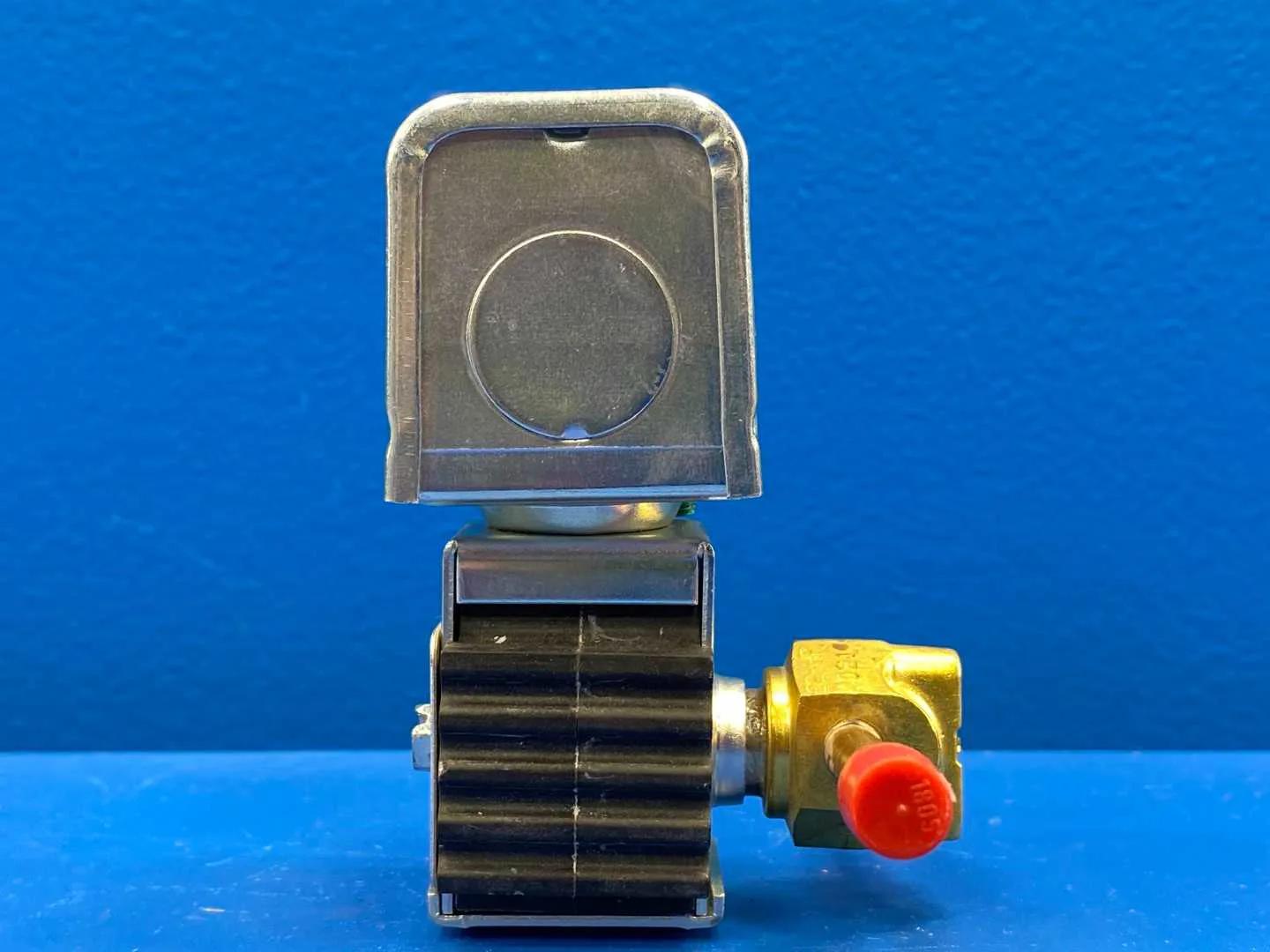

Sporlan Liquid Line Solenoid Valve 1/4" ODF E2S120-HP 24V w/ MKC-1 Coil

The Sporlan Solenoid Valve E2S120-HP is a crucial component in HVAC and refrigeration systems. It is designed to control the flow of refrigerant through various applications, ensuring optimal temperature regulation and efficiency. The valve operates with a 24V power supply at 60Hz, making it suitable for standard electrical systems. In the HVAC industry, solenoid valves like the E2S120-HP are essential for maintaining proper refrigerant flow and enabling the effective operation of cooling and heating systems. The E2S120-HP model features a 1/4” ODF (Outside Diameter Flare) solder connection, allowing for seamless integration into existing piping systems. This valve is built to handle pressures up to 1015 PSI, ensuring reliability and durability under high-pressure conditions. Unique features of this product include its compact design, robust construction, and high performance in varying temperatures and pressures, which contribute to extended service life and reduced maintenance needs.

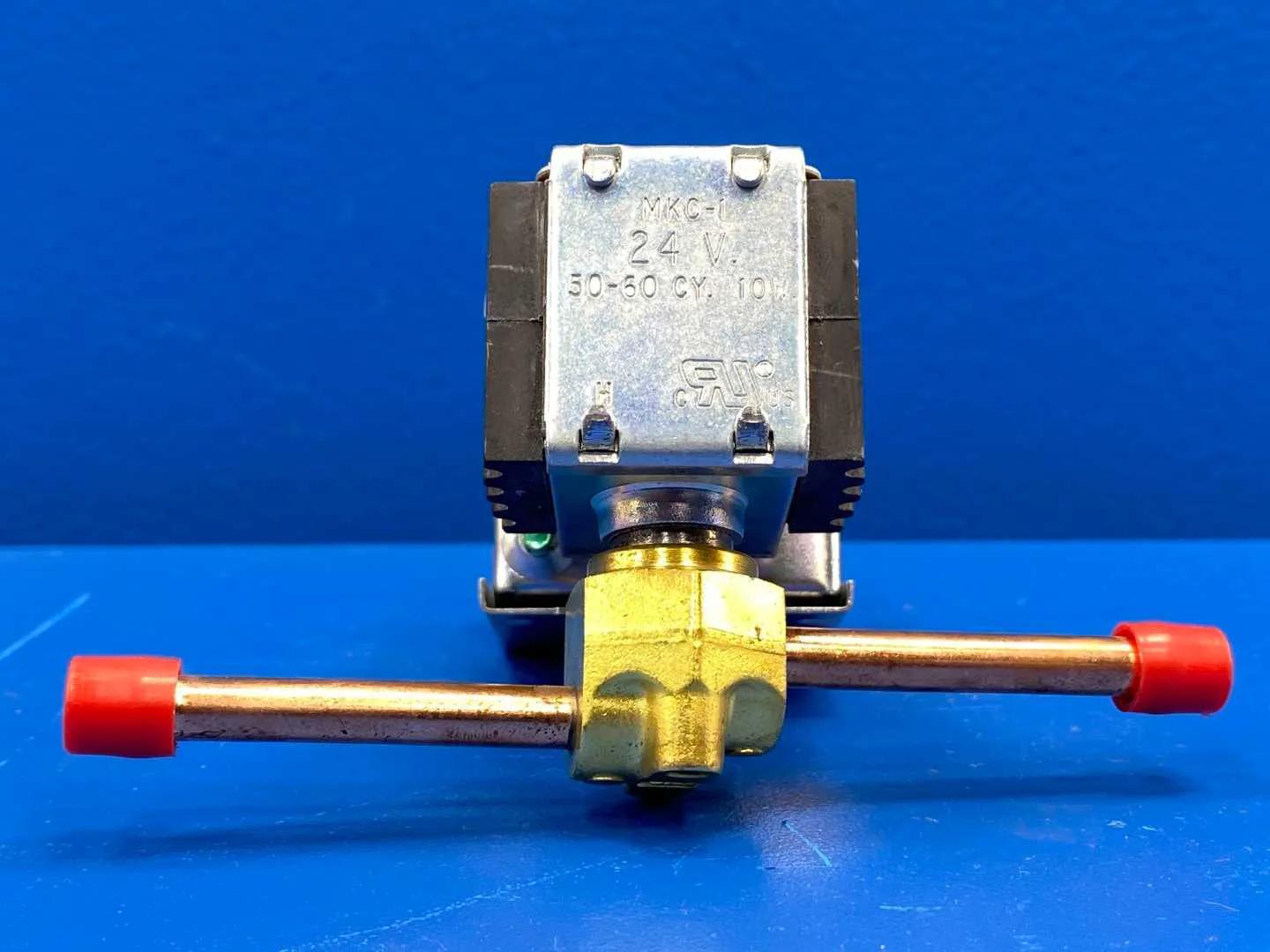

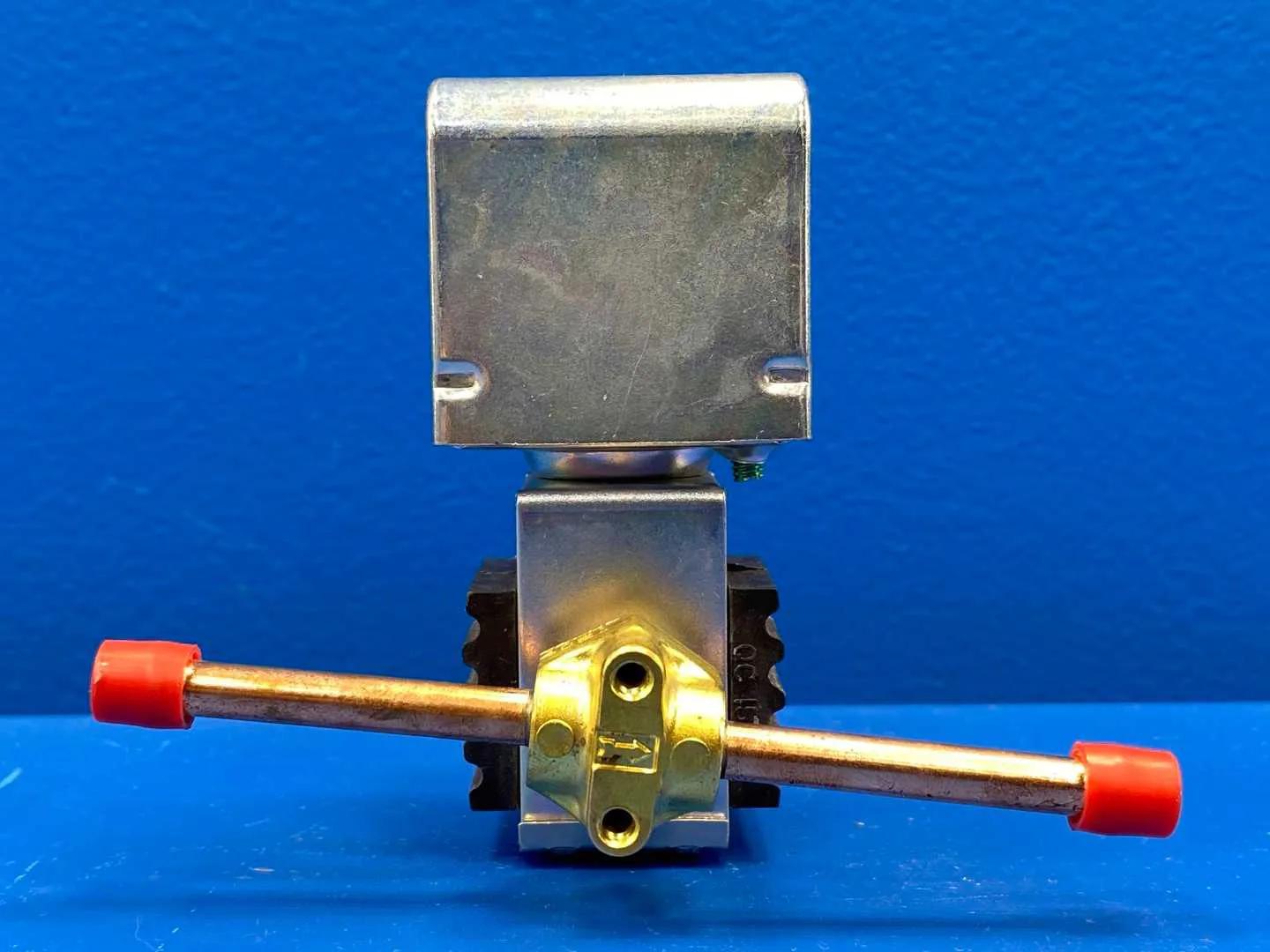

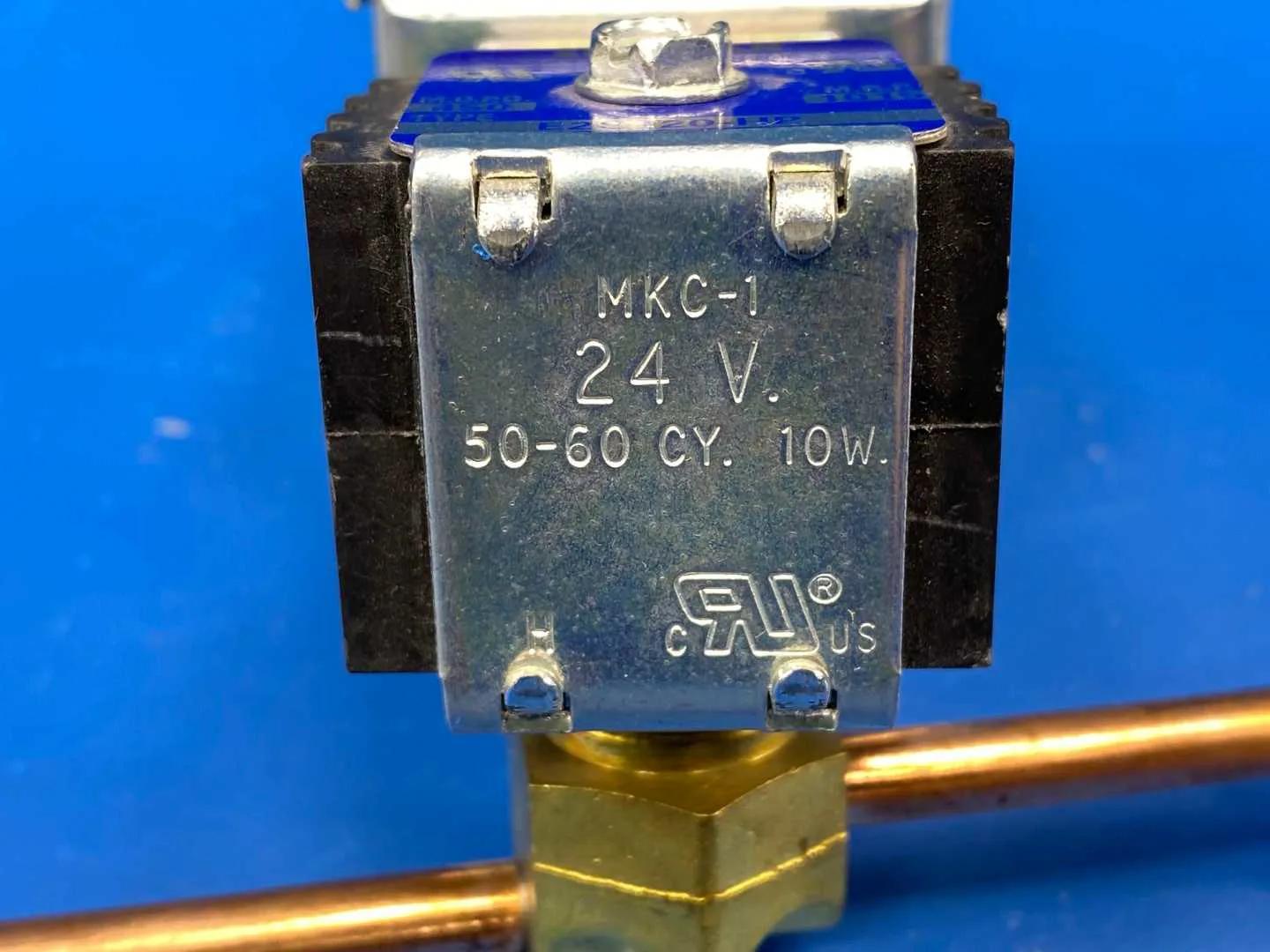

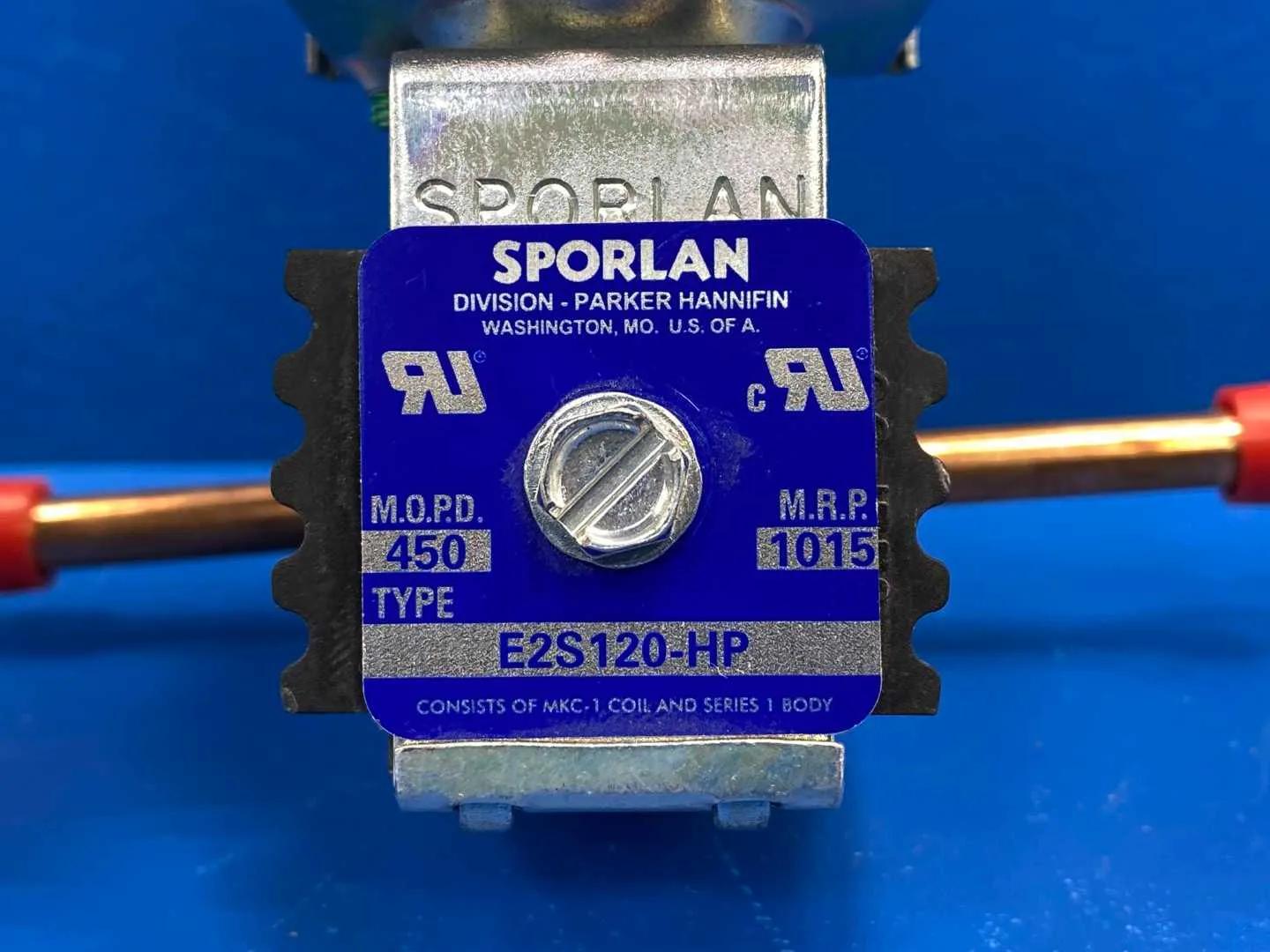

REFRIGERANT: R-410A capable. The "-HP" suffix means high pressure. Sporlan's high-pressure E series covers R-22, R-134a, R-401A, R-402A, R-404A, R-407C, R-407F, R-410A and R-507. The standard non-HP E series is capped at 500 psi (34.5 bar) maximum rated pressure and Sporlan does NOT list R-410A for it, so the -HP suffix is what makes this valve suitable for R-410A service. Manufacturer: Sporlan Division, Parker Hannifin Corporation, Washington, Missouri, USA Model: E2S120-HP Valve series: E2, high-pressure variant. This is the smallest valve in this group. Normally closed: opens when the coil is energized, closes when de-energized Port size: reads as 2/32 in (1/16 in, 1.59 mm) under Sporlan's E-series nomenclature, in which the number following the E is the port size in thirty-seconds of an inch. Note that an E2 series does not appear in the standard Bulletin 30-10 lineup, so this size exists in the high-pressure range only. Connections: 1/4 in ODF solder inlet x 1/4 in ODF solder outlet, extended solder type. Can be brazed into the line without disassembly using low or no-silver brazing alloy. Coil: MKC-1, Class F temperature rating, 10 watts AC. Supplied on this unit at 24 V, 50/60 Hz. The 24 V coil is identified by orange lead wires. Because the MKC-1 is Class F, a separate high temperature coil is NOT required for discharge gas service. Body material: brass Mounting: may be mounted horizontally, on its side, or in a vertical line MOPD AND MAXIMUM RATED PRESSURE: read them off the valve nameplate. Every Sporlan solenoid nameplate carries the valve type number, the MOPD and the maximum rated pressure. We are not publishing a figure we cannot source for this exact model. For scale, Parker rates the comparable E10S1-HP series at 450 psi (31 bar) MOPD and 700 psig (48 bar) maximum rated pressure. Do NOT assume this model shares those numbers. Sizing warning from Sporlan: do NOT size a solenoid valve by line size. Size on system capacity, refrigerant, fluid type, temperature and pressures. Model number decode: E for the extended-connection E series, 2 for the port size in thirty-seconds, S for solder connections, 1 for the MKC-1 coil size, 2 for the connection size in eighths of an inch (1/4 in), 0 for ODF x ODF. Approvals: the Sporlan solenoid line is listed under UL File No. MH4576 and CSA File No. LR19953, and is CE approved. Installation note: Sporlan recommends a filter-drier ahead of every solenoid valve. Source: Parker Sporlan Bulletin 30-10, October 2022, pages 21, 22, 23, 25, 26 and 28. Parker Sporlan Bulletin 30-10-14, August 2015, for the high-pressure series refrigerant list and reference pressures.
